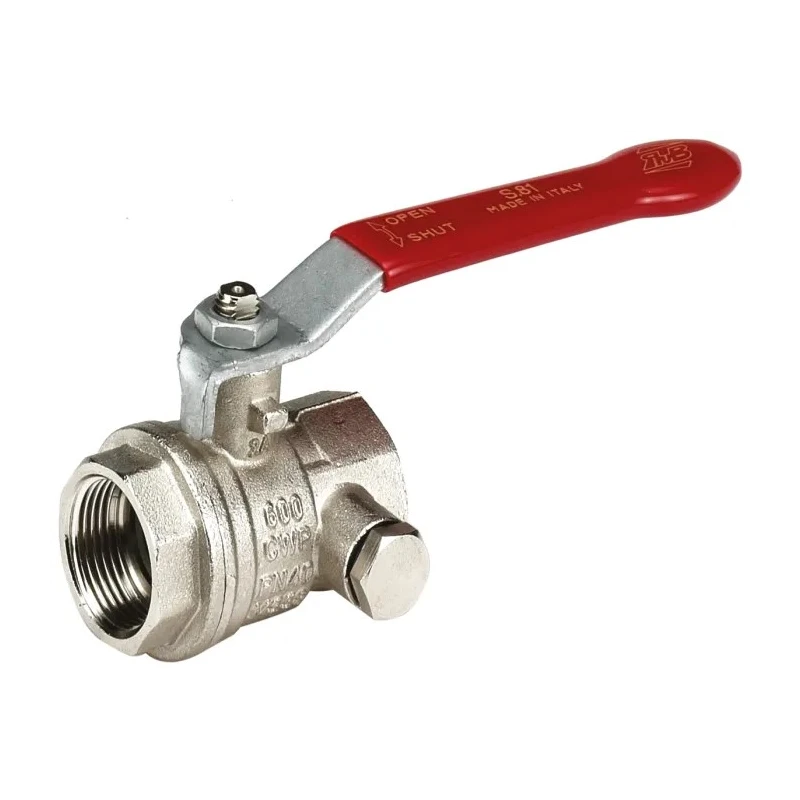

RS PRO Nickel Plated Brass Threaded Full Port Ball Valve 2 in BSP 16 Bar 812-5154

RS PRO 812-5154 is a nickel plated brass full port ball valve featuring threaded connections on both inlet and outlet ports with a 2 inch BSP thread standard. Designed for plumbing, water, and general fluid handling applications, this valve offers robust performance with a maximum operating pressure of 16 bar and an operating temperature range of -40°C to 170°C.

The valve body and cap are hot forged and sand blasted, then nickel plated for enhanced corrosion resistance and durability. The valve includes a blowout-proof stem made from nickel plated brass and two FPM O-rings to ensure maximum safety and prevent leaks. The ball seats are made of pure PTFE with a flexible-lip design for self-lubrication and extended seat life.

It provides a full port flow path conforming to DIN 3357, ensuring maximum flow with very low pressure drop. The valve is suitable for diverting fluids, applying sensors or pressure gauges, and safely draining the downstream line via the double side drain taps. The handle is constructed of steel and clearly indicates the open or closed position of the valve.

Manufactured entirely in Italy using finest brass materials according to EN 12165 and EN 12164 standards, the valve is chrome plated and uses silicone-free lubricant to enhance reliability and longevity. The valve is 100% tested for seal integrity and features travel stops to prevent stress damage at the stem.

Applications for this industrial Ball Valve include plumbing systems, HVAC, water treatment, and various industrial fluid power applications. Its dual sealing system permits bi-directional operation, simplifying installation and maintenance. No metal-to-metal moving parts ensure no maintenance is ever required.

The body is made of nickel plated brass for corrosion resistance and durability. Full port design ensures maximum flow with minimal pressure drop. Threaded inlet and outlet with BSP (ISO 228) parallel female threads on both ends.

Operating temperature range from -40°C to 170°C suitable for plumbing and water applications. Steel handle clearly indicates valve position for ease of operation. Features a blowout-proof nickel plated brass stem with dual FPM O-rings for safety and leak prevention.

Pure PTFE self-lubricating ball seats with flexible-lip design provide long service life. Chrome plated brass ball enhances durability and reduces wear. Valve is designed for easy flow diversion, pressure measurement, and line draining.

Manufactured in Italy with hot forged, sand blasted, nickel plated brass body and cap sealed with Loctite or equivalent thread sealant. Explore the comprehensive RS PRO range of industrial valves and fittings at EnvMart for reliable performance and quality standards in your fluid handling systems.
