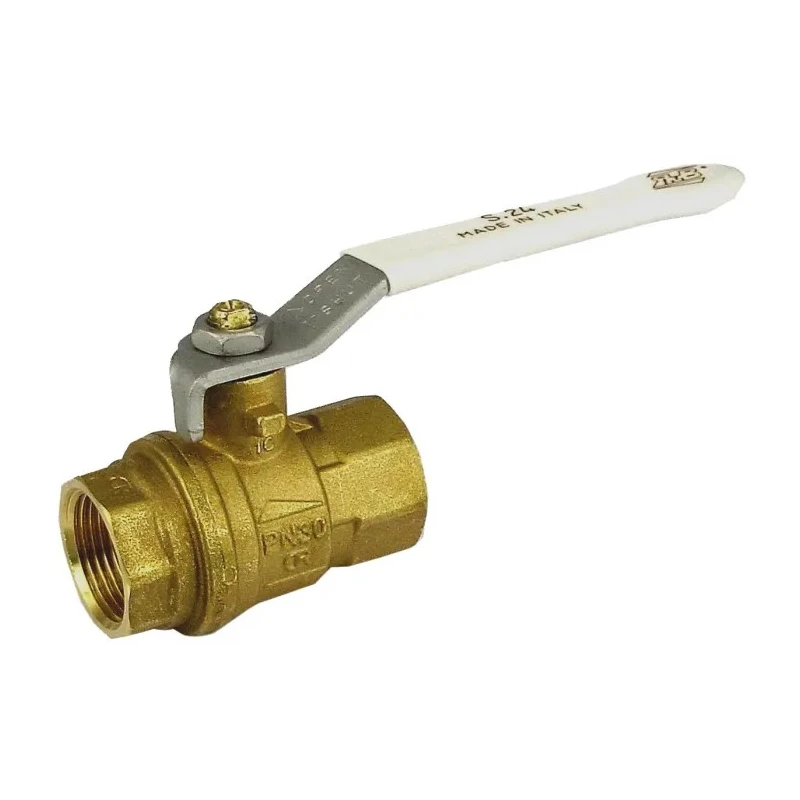

RS PRO Brass Threaded Full Port Ball Valve BSP 1/2 to 4 in, 30 bar, Steel Handle, 170°C 812-5135

RS PRO 812-5135 Brass Threaded Full Port Ball Valve is an industrial-grade valve designed to control flow efficiently in pipelines, supporting pressures up to 30 bar and temperatures from -40°C to 170°C.

Manufactured from dezincification-resistant brass (ADZ-T and ADZ-P), this valve resists corrosion comparable to bronze, making it suitable for demanding environments such as oil and gas pipelines and water handling systems prone to dezincification.

The valve features BSP threaded female inlet and outlet ports with sizes ranging from 1/2 to 4 inches, ensuring compatibility with standard pipe fittings. Its full port design adheres to DIN 3357 standards, permitting maximum flow capacity with minimal pressure drop.

The steel handle is coated with Geomet® carbon steel and a thick PVC dip for thermal and electrical protection. The lever clearly indicates ball position and is designed with stops to avoid stress on the stem, contributing to safe and reliable operation.

The valve incorporates a dual sealing system and maintenance-free PTFE self-lubricating seats with a flexible-lip design, ensuring leak-proof performance without metal-to-metal moving parts. Silicon-free lubricant enhances seal longevity, while the hot forged and sand blasted DZR brass body and cap provide robust mechanical strength sealed with thread sealant.

Compliance with RoHS (EU), ISO 228, EN 10226-1, PED 2014/68/UE, and other international standards guarantees high quality and reliability for industrial, fluid power, and pipeline applications.

This ball valve suits use cases in oil and gas, chemical processing, water treatment, HVAC systems, and general industrial fluid control systems, where durability and precise shut-off are critical.

Constructed from dezincification-resistant brass for enhanced durability. Threaded inlet and outlet BSP female connections sized 1/2 to 4 inches. Full port design for maximum flow efficiency. Steel handle with thermal and electrical protection.

Operating temperature range from -40°C to 170°C. Dual sealing system allowing operation in either flow direction. Maintenance-free, PTFE self-lubricating seats with flexible-lip design. Hot forged sand blasted DZR brass body with Loctite® sealed threads.

Compliant with multiple international standards including RoHS and ISO 228. Explore our selection of high-quality Ball Valves and industrial valves at EnvMart for reliable flow control solutions across various industries.
