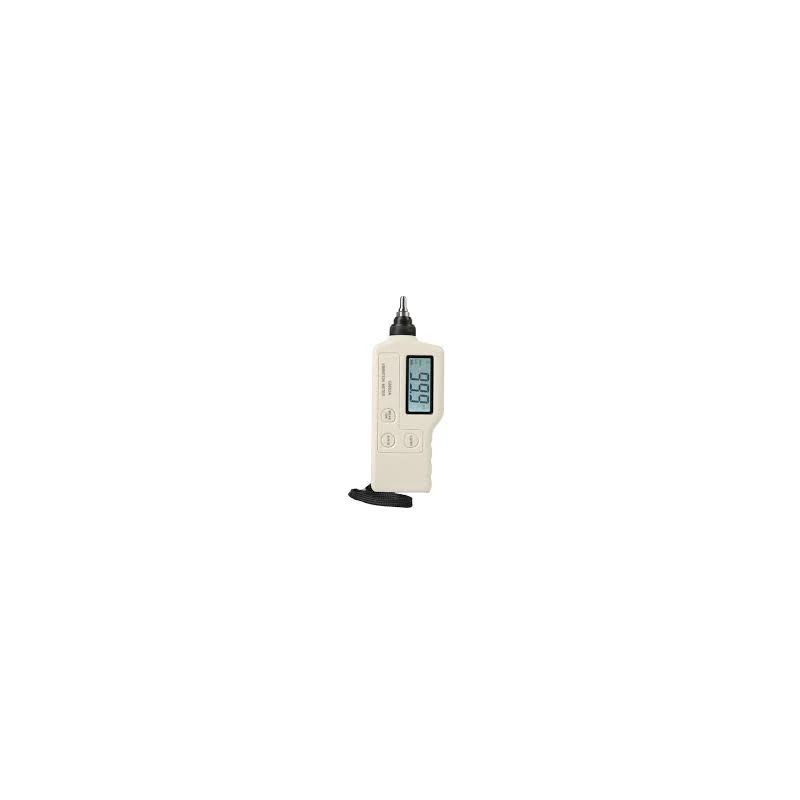

Vibration Meter, Visually display measurement value and state 3 Measurements: Acceleration, Velocity and Displacement Different vibration frequency selection High sensitivity probe for accurate measurement Provides long and short probe head, each one is suitable for different measurement situation Equipped with AC signal output interface Low power indication Auto Power-off LCD Backlight Specifications: Vibration Pickup: Piezoelectric ceramic accelerometer (shear-type) Measurement Range Acceleration: 0.1 - 199.9m/s2 peak Velocity: 0.1 - 199.9 mm/s rms Displacement: 0.001 - 1.9999mm p-p (Velocity and displacement range is limited by acceleration 199.9m/s2) Accuracy: 5% 2digits Frequency Range Acceleration: 10Hz - 1kHz (LO), 1kHz - 15kHz (HI) Velocity: 10Hz - 1kHz (LO) Displacement: 10Hz - 1kHz (LO) Displays Update Cycle: 1 second LCD Display: 3 1/2 digits display Single Output: AC output 2V peak (display full scale) Load impedance 10kOor more earphones can be connected Power Supply: 9V Alkaline Battery (included) Static current: <=20A Operating current: <=25mA Auto Power-off: Turns off automatically in 60sec LCD Backlight: 7sec Operating Humidity: 30 - 90% R.H. Low Battery Indication: 6.9V 0.2V Package Includes: 1 x Vibration Meter 1 x User Manual
