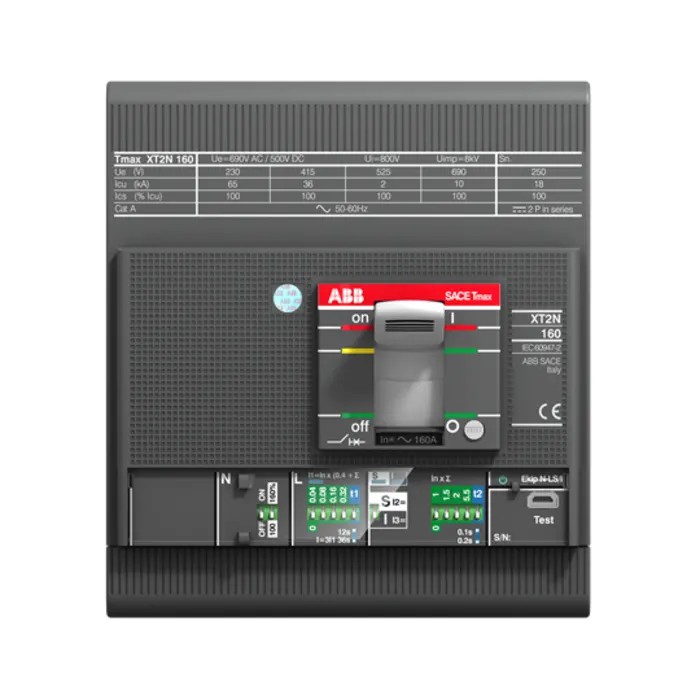

ABB Molded Case Circuit Breaker 4-Pole 160A Breaking Capacity 150 kA Fixed XT2L 1SDA06 1SDA067970R1 Ekip LSIG 160A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker 4-Pole 160A Breaking Capacity 150 kA Fixed XT2L 1SDA06 1SDA067970R1 Ekip LSIG 160A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	XT2L
Brand	ABB
Height	130mm
Model	XT2L
Depth	82.5mm
Width	120mm
Mount Type	Fixed
Current Rating	160A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Short circuit performance level	L

Key Features

Rated for 160 A current with a breaking capacity of 150 kA.
Equipped with 4 poles and fixed front terminals for secure installation.
Operates at a rated AC voltage of 690 V with 1000 V insulation voltage.
Features solid state release with Ekip LSIG trip unit for precise tripping.
Complies with CE, IEC, and RoHS standards ensuring industrial compatibility.
Compact dimensions with 130 mm height, 120 mm width, and 82.5 mm depth.
Designed for disassembly supporting sustainability and ease of maintenance.
Reset actuator type is a lever for quick manual reset after trip.

Product Description

ABB XT2L Molded Case Circuit Breaker model 1SDA067970R1 is a high-performance electrical protective device designed for industrial use, providing safety and reliability in power distribution systems. It features a 4-pole configuration with fixed front terminals, making it suitable for fixed mounting applications. The circuit breaker supports a rated current of 160 A and can interrupt fault currents up to 150 kA, ensuring robust protection against short circuits and overloads.

The device operates at a rated AC voltage of 690 V and offers an insulation voltage of 1000 V (Ui), making it compatible with various industrial electrical networks. Its solid state tripping mechanism with Ekip LSIG technology provides accurate and fast detection of faults, enhancing system protection and minimizing downtime.

This molded case circuit breaker complies with key industry standards including CE, IEC, and RoHS, underscoring its quality and environmental compliance. The compact size with dimensions of 130 mm height, 120 mm width, and 82.5 mm depth allows for installation flexibility in electrical panels.

Additional features include a lever-type reset actuator for user-friendly operation and a design focused on disassembly, supporting sustainability initiatives and easing maintenance tasks. Manufactured in Italy, this MCCB is ideal for industrial, commercial, and automation applications requiring reliable circuit protection and easy integration.

Rated current: 160 A. Breaking capacity: 150 kA. Number of poles: 4, fixed front terminals. Rated AC voltage: 690 V. Insulation voltage: 1000 V (Ui). Solid state Ekip LSIG tripping mechanism. Complies with CE, IEC, and RoHS standards.

Compact dimensions for flexible panel mounting. Lever reset actuator type. Designed for disassembly and sustainability.

This ABB XT2L molded case circuit breaker is an essential component in electrical protection, widely used in industrial power distribution, automation systems, and commercial installations. It ensures critical safety standards are met while offering ease of maintenance and long-term durability. For a wide selection of MCCBs and electrical protection devices, explore the Molded Case Circuit Breaker category on EnvMart.
