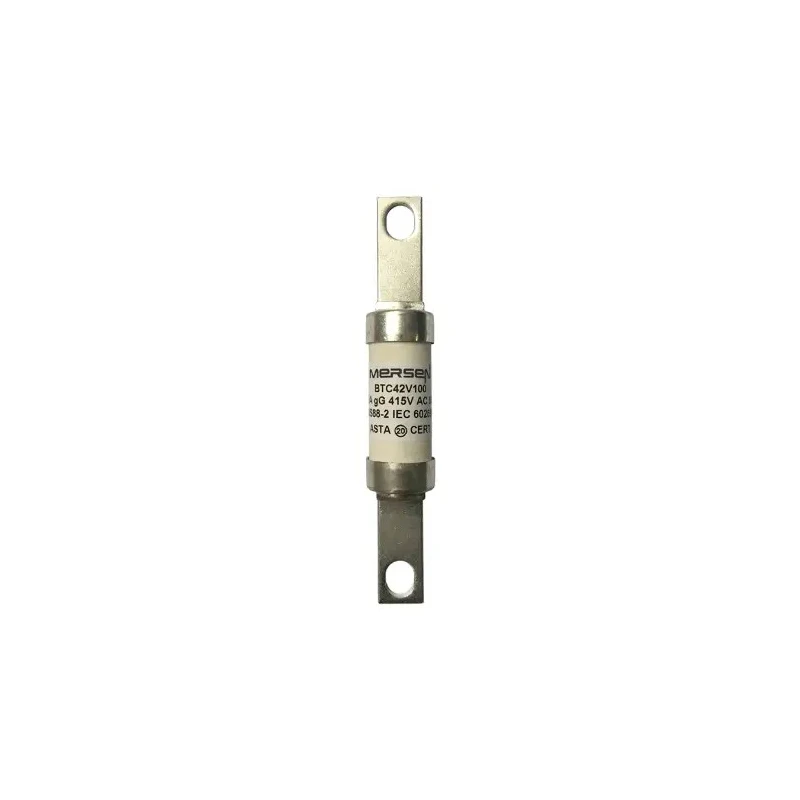

Mersen 100A Bolted Tag Fuse B1C 415V AC, 111 mm Z1045303 / BTC42V100

Mersen Z1045303 / BTC42V100 is a 100A bolted tag fuse designed for industrial and commercial electrical protection applications requiring reliable overload and short circuit defense.

This fuse features a fuse size of B1C with a voltage rating of 415V AC and 240V DC, suitable for general purpose and motor protection tasks where fast and precise current limitation is essential.

The 111 mm fixing centres and 14.3 mm tag width allow stable and secure mounting by bolting onto fuse holders, busbars, or fuse interrupters and disconnectors. The centred tag orientation facilitates consistent positioning.

Measuring 127 mm overall length, 58.5 mm height and length, and 21 mm diameter and width, the compact dimensions ensure compatibility with standard fuse holders within electrical panels and equipment racks.

Conforming to EN 60269-2 standards and regulatory requirements including RoHS, REACH, and CE, this fuse delivers quality assurance for safety and environmental compliance.

Manufactured in India, it is designed with high rupture capacity limitations effectively coordinated to prevent exchange with higher rated fuses, providing consistent electrical protection.

Typical applications include general purpose electrical protection and motor circuit safeguarding in industrial, commercial, and manufacturing environments. Designed with fuse size B1C ensuring suitability for central bolted tag fuse applications.

Rated for 100 amperes current with a voltage capacity of 415 volts AC and 240 volts DC. Features fixing centres of 111 mm and tag width of 14.3 mm for secure installation. Constructed with a high-quality fuse link delivering fast-blow fuse speed for optimal protection.

Dimensions include an overall length of 127 mm and height and length of 58.5 mm each. Tag orientation is centred, and the fuse diameter and width are both 21 mm. Meets standards EN 60269-2 and complies with RoHS, REACH, and CE regulations.

Manufactured in India ensuring reliable quality and build consistency. Ideal for use in electrical systems requiring bolted tag fuse protection with high rupture capacity features absent. Explore the full range of Mersen Electrical Fuses at EnvMart for comprehensive circuit protection solutions matched to your industrial and commercial needs.
