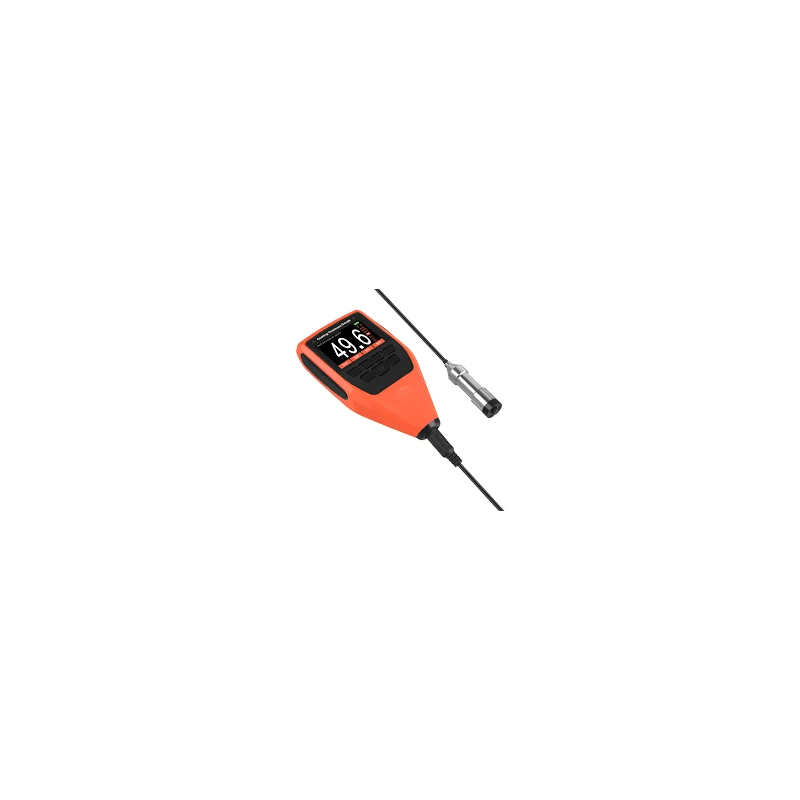

Color Screen Coating Thickness Gauge EC-777e 2.4 Inch
Specifications
| Resolution | 0.1 um |
|---|---|
| Accuracy | 1 % of reading |
| Measuring range | 0 - 2000 um |
| Size | 146x76x32mm |
| Power Supply | 2 X 1.5 AAA batteries |
| Type | F / NF |
| Model | EC-777e |
| Minimum Order Quantity | 1 Piece |
| Least Count | 0.1 micron |
| Minimum Sample | Thickness0.2 mm |
| Minimum Measurement Area | 5 mm |
| Operating temperatures | 20-60 degree |
| Operating Current | magnetic induction and eddy current |
Key Features
- Double principle in one, ruby probe
- 2.4 inch color screen
- With Bluetooth and APP function
- Car or general mode
- High resolution 0.1µm
- High accuracy ±(2%+1µm)
- Measuring range is 0~2000µm(other ranges can be customized)
- Statistic analysis of data
- Standardized menu interface
- Display a curve, bar chart or trend chart
- USB to computer
Product Description
2.4 Inch Color Screen Coating Thickness Gauge EC-777e, This series of thickness gauges can nondestructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (e.g. iron, nickel, cobalt, etc.), including measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of aluminum, copper surface paint or plastic film
- Support zero calibration and multi-point calibration
- External probe is optional (EC-777E)
- The maximum speed is 2 times/s
- Self-adaptive back light brightness
- Automatic rotation screen
- Sound volume adjustable
- Red LED alarm, blue and green LED status reminder
- Auto power-off
- Low power protective
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of the EC-777e is 0 to 2000µm.
It has an accuracy of ±(2% + 1µm) of the reading.
The resolution of this model is 0.1µm.
It requires 2 x 1.5 AAA batteries for operation.
The dimensions of this unit are 146mm x 76mm x 32mm.
It can measure non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals.
The minimum measurement area required is 5mm.
The operating temperatures for this model range from 20 to 60 degrees Celsius.
It features a color screen that can display curves, bar charts, or trend charts for data analysis.
It includes a red LED alarm and blue and green LED status reminders.
The minimum sample thickness that can be measured is 0.2mm.
Yes, it supports zero calibration and multi-point calibration.
