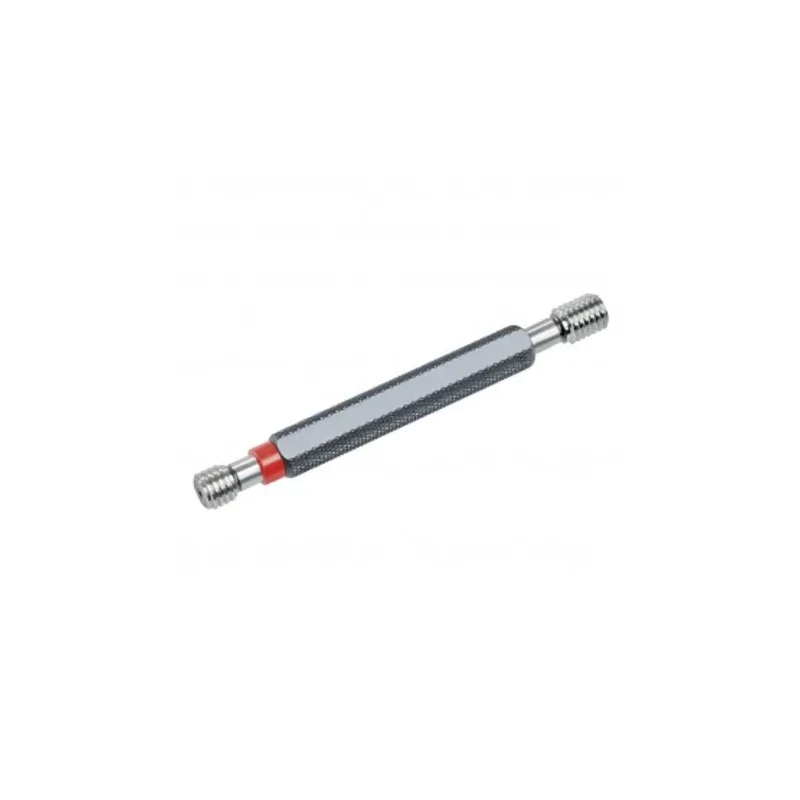

Volkel M3 x 0.5 Plug Thread Plug Gauge with 0.5 mm Pitch Diameter 16012

Volkel 16012 M3 x 0.5 Plug Thread Plug Gauge is a precision double ended tapered plug gauge with a 0.5 mm pitch diameter, designed for use in industrial and engineering measurement and quality control.

This double ended plug gauge combines a go plug and a no-go plug, facilitating accurate verification of internal threaded parts to ensure compliance with specified thread standards.

The gauge is constructed to DIN ISO 1502 standards and features a red ring marking on the scrap (no-go) side for clear identification during inspection processes. The go end must screw into a threaded part by hand without excessive force to confirm the thread's acceptability, whereas the no-go end must not screw in more than two turns to avoid acceptance of defective parts.

Its tapered design ensures precise and reliable thread measurements, essential for manufacturing, quality assurance, and maintenance in automotive, aerospace, and mechanical engineering applications.

This plug gauge combines both go and no-go ends to ensure thread conformity. The scrap side is marked with a red ring for easy identification. The go end must thread smoothly into the part by hand without excessive force.

The no-go end must not screw in beyond two turns to avoid scrap. The gauge complies with DIN ISO 1502 standards for thread accuracy. Constructed with tapered design for precise thread checking. Suitable for quality control in industrial and engineering measurements.

Manufactured in Germany with high-quality material and workmanship.

This gauge is ideal for industrial, engineering, manufacturing, and laboratory inspection environments requiring reliable and repeatable thread checking to maintain high product quality and safety standards.
