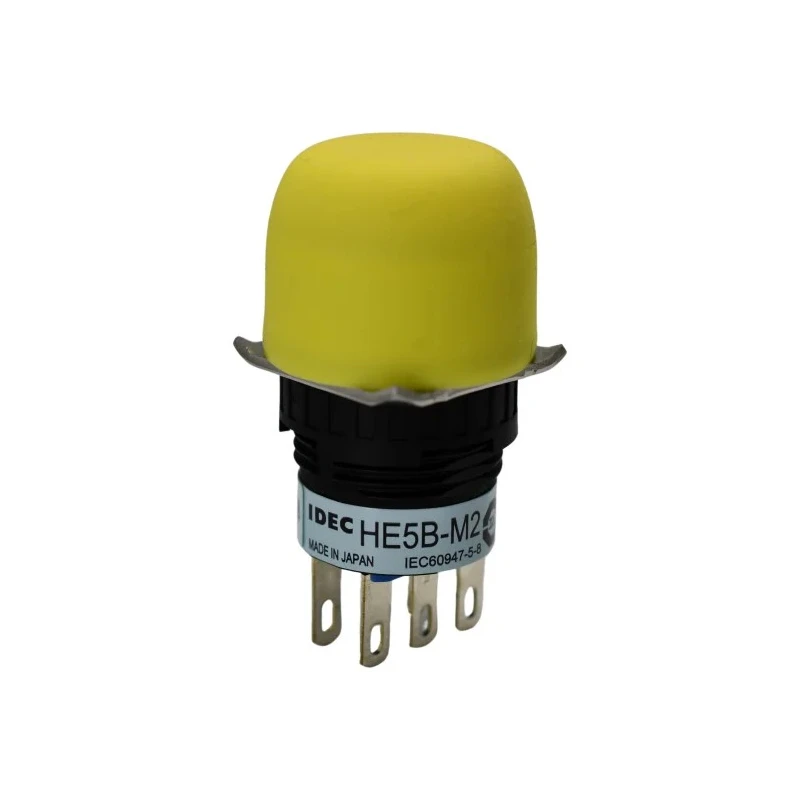

Idec HE5B Series Safety Enabling Switch 3 Position DPDT IP65 HE5B
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Length | 39mm |
| Model | HE5B |
| IP Rating | IP65 |
| Series | HE5B |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Number of Positions | 3 |
| Minimum Operating Temperature | 25°C |
| Terminal type | Solder |
| Switch Contact Current | 500mA |
| Mechanical Life | 100000Operations |
| Contact Voltage | 125V |
Key Features
- The switch features a 3-position Off-On-Off operation configuration for safety control.
- Contact configuration is DPDT for dual pole double throw switching functionality.
- Rated with IP65 for dust-tight and water resistance suitable for industrial environments.
- Operating temperature range is from 25°C minimum to 60°C maximum ensuring durability.
- The maximum contact voltage supported is 125V with a 500mA contact current rating.
- Mechanical life expectancy is 100,000 operations ensuring long-term reliability.
- Terminal connections are solder type facilitating secure electrical contacts.
- Compact length dimension of 39mm allows mounting in 16 mm round holes with fitted rubber boot cover.
Product Description
Idec HE5B Safety Enabling Switch HE5B is a 3-position, DPDT contact configured safety enabling switch rated IP65 for protected industrial use. It is primarily used as an enabling switch for manual robotic control in various industrial automation environments.
This switch features a tactile pushbutton mechanism that requires light pressure to maintain the "On" position and increased force to switch to the third "Off" position. It ensures the contact will not close when released from "Off" position 3 to "Off" position 1 enhancing operator safety.
The device mounts conveniently in a 16 mm round hole and includes a rubber boot cover for enhanced ingress protection. It operates efficiently within the temperature range of 25°C to 60°C. Its solder terminal type enables firm wiring connections suitable for complex control panels.
This safety enabling switch adheres to various international standards and certifications including ISO12100, IEC/EN60947, UL508, and CSA C22.2. It boasts a robust mechanical life of 100,000 operations, making it reliable for prolonged industrial usage.
The switch supports a maximum contact voltage of 125V and a contact current of 500mA. It has a compact length of 39 mm which makes installation versatile and space-efficient. IP65 rating ensures protection against dust ingress and water jets from any direction.
Designed and manufactured in Japan ensuring high-quality engineering and performance standards. Typical applications include safety interlock and enabling solutions in industrial automation, manufacturing, robotics, and control systems.
For industry professionals, Idec HE5B series provides a reliable safety enabling switch solution compliant with multiple regulatory requirements to guarantee operator safety and equipment protection.
Explore the Electronics & Electricals category on EnvMart for a wide selection of Safety Enabling Switches and automation control products meeting international safety standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this model is DPDT (Dual Pole Double Throw), allowing for versatile switching functionality.
It supports a maximum contact voltage of 125V.
The contact current rating for this unit is 500mA.
The operating temperature range is from 25°C to 60°C.
This model features a 3-position Off-On-Off operation configuration.
The mechanical life expectancy is rated at 100,000 operations.
It uses solder type terminal connections, which facilitate secure electrical contacts.
The length of this switch is 39mm, making it suitable for mounting in 16mm round holes.
The switch has an IP65 rating, ensuring it is dust-tight and resistant to water jets from any direction.
This model is manufactured in Japan.
It complies with several standards including ISO12100, IEC/EN60947, UL508, and CSA C22.2.
Typical applications include safety interlock and enabling solutions in industrial automation, manufacturing, robotics, and control systems.
