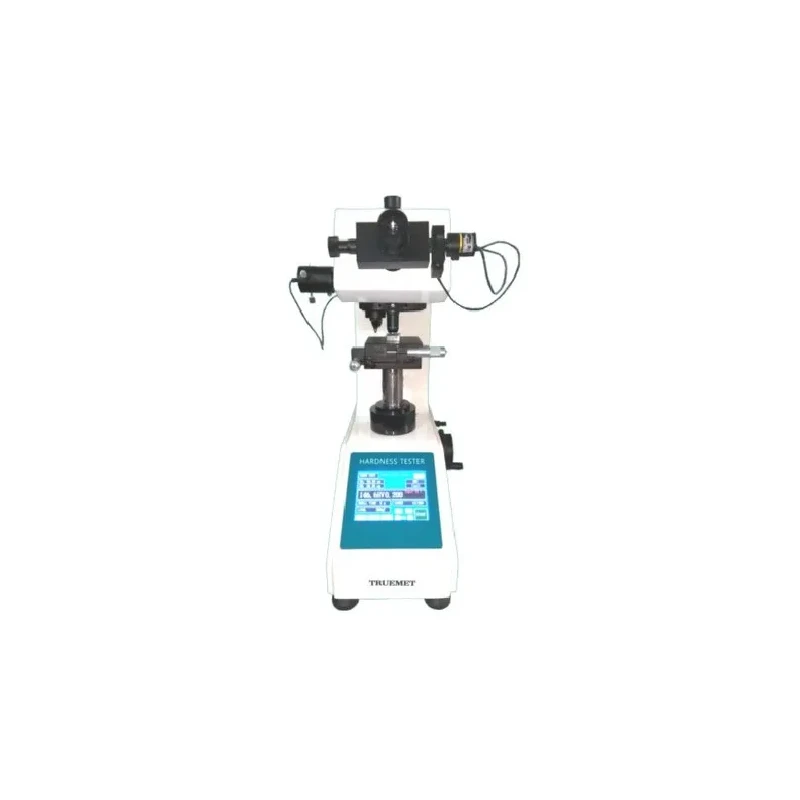

Touch Screen Digital Micro Vickers Hardness Tester
Specifications
| Display Type | Digital |
|---|---|
| Warranty | 1 Year |
| Size | 115mm 490185515mm (LWH) |
| Automation Grade | Automatic |
| Brand | DHARA |
| Power | 220V+5%50/60Hz(110V available) |
| Dimensions | 490185515mm (LWH) |
| Model | MHT-1000T |
| Minimum Order Quantity | 1 Set |
| Weight | 43kg |
| Scale | HRHVHB etc |
| Hardness Scale | HRHVHB etc. |
| Depth of Throat | 115 mm |
| Max Height Of Test Piece | 85 mm |
| Testing Force | 10 g to 1 kg |
Key Features
- Equipped with digital eyepiece and Data computing systems which accuracy can reach to 0.01um; Just click one button the hardness value will display on screen directly
- Main components adopted American 3M, Allegro, and Japanese Omron, NKK brand, ensure the instrument can stable working for a very long time.
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
Product Description
It has a faster testing speed than another ordinary Micro hardness tester. The hardness value can be displayed directly and does not need to enter the length of the diagonal. High-quality imported components ensure the instrument can stably work for a very long time; Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precisely.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- Factory directly supply, we have products develop &design & produce ability, all the parts provide life-time replacement and maintenance service.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum height of the test piece that can be accommodated is 85 mm.
It operates on a power supply of 220V ± 5% at 50/60Hz, with 110V available as an option.
The testing force ranges from 10 g to 1 kg.
The dimensions of the hardness tester are 490 mm in length, 185 mm in width, and 515 mm in height.
This unit is classified as automatic, enhancing ease of use.
It features a digital display for easy readability of hardness values.
The hardness tester comes with a warranty period of 1 year.
The depth of throat for this model is 115 mm.
The optical system is designed to meet hardness testing requirements and allows for clear observation of the microstructure of materials.
The light source strength can be adjusted according to the operator's visual habits, helping to avoid visual fatigue during long operations.
