RS PRO Micro Valve Handle, ISO 7.1, DIN 2999, ISO 228, BS 21 R 3/8, Pneumatic Relay Brass Body 20 bar 3.1m³/h III B 176-2143

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Micro Valve Handle, ISO 7.1, DIN 2999, ISO 228, BS 21 R 3/8, Pneumatic Relay Brass Body 20 bar 3.1m³/h III B 176-2143

Name: RS PRO Micro Valve Handle, ISO 7.1, DIN 2999, ISO 228, BS 21 R 3/8, Pneumatic Relay Brass Body 20 bar 3.1m³/h III B 176-2143
Brand: RS PRO
SKU: 242111
Price: 20365.53 INR
Availability: InStock



Category Pneumatic Manual Control Valves Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Body Material	Brass
Maximum Operating Pressure	20 bar
Height	22mm
Length	46mm
Model	176-2143
Width	0.864in
Series	RS PRO
Number Of Ports	2
Maximum Operating Temperature	+80°C
Thread Size	9.525 mm
Port Type	R 7, RP 7
Port Size	R 3/8
Minimum Operating Temperature	-20°C
Maximum Flow Rate	3.1m³/h
Control Mechanism	Handle
Standards/Approvals	ISO 9001-2015, EAC, NSF/ANSI 169, REACH, RoHS, UL
Connection Thread Standard	ISO 7.1, DIN 2999, ISO 228, BS 21
Valve Function	Pneumatic Relay
Port Gender	Male/Female
Control Button/Switch Colour	Red

Key Features

Compact design with chrome nickel plating for durability.
Compatible with ISO 7.1, DIN 2999, ISO 228, BS 21 R 3/8 thread standards.
Operates reliably up to 20 bar maximum pressure.
Maximum flow rate of 3.1 cubic meters per hour.
Red handle control mechanism enables easy operation.
Suitable for operating temperatures from -20°C to +80°C.
Two ports with male/female taper threads.
Ideal for pneumatic systems requiring precise manual valve control.

Product Description

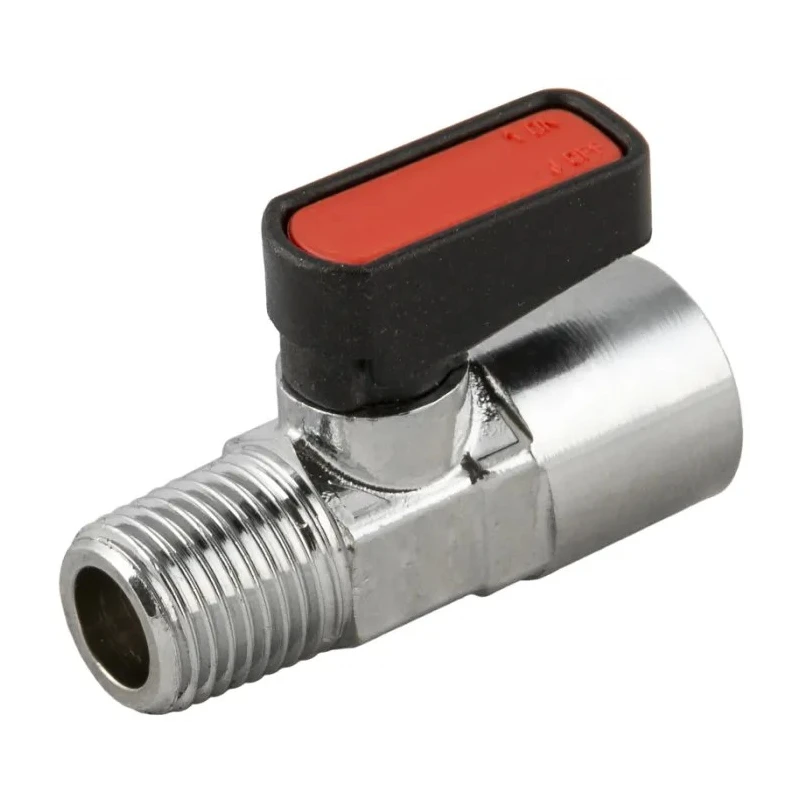

RS PRO 176-2143 Micro Valve Handle is a high-quality pneumatic manual control valve designed for precise fluid control in industrial applications. Manufactured in Italy with a durable brass body and chrome nickel plating, it features a compact taper male/female thread design for secure installation.

This valve operates with a red handle control mechanism allowing easy and accurate manual operation. It conforms to international connection thread standards ISO 7.1, DIN 2999, ISO 228, and BS 21, making it suitable for diverse industrial pneumatic systems.

Built to withstand maximum operating pressures of 20 bar, the valve supports a maximum flow rate of 3.1 cubic meters per hour. It performs reliably across a wide temperature range from -20°C to +80°C, ensuring versatility for varying environmental conditions.

With a height of 22 mm, length of 46 mm, and width of 0.864 inches, the micro valve's super compact design facilitates integration into tight spaces, optimizing system layouts. The valve's pneumatic relay function enables efficient control of airflow in industrial automation, manufacturing, HVAC, and fluid power systems.

This RS PRO micro valve is ideal for industrial, laboratory, and construction applications where manual control valves are required to regulate pneumatic flow. Its robust brass construction ensures long service life and corrosion resistance.

Compact design with chrome nickel plating for durability. Compatible with ISO 7.1, DIN 2999, ISO 228, BS 21 R 3/8 thread standards. Operates reliably up to 20 bar maximum pressure. Maximum flow rate of 3.1 cubic meters per hour.

Red handle control mechanism enables easy operation. Suitable for operating temperatures from -20°C to +80°C. Two ports with male/female taper threads. Compact dimensions: length 46 mm, height 22 mm, width 0.864 inches. Ideal for pneumatic systems requiring precise manual valve control.
