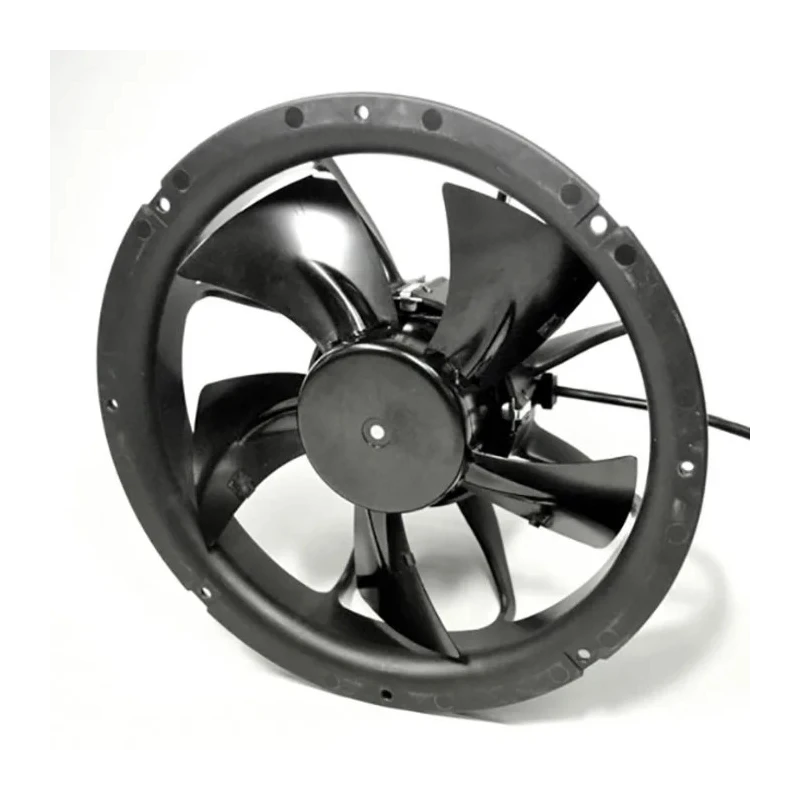

RS PRO Axial Fan, 230V AC, 781.5 m³/h Air Flow, 26 W Power, 0.24 A Max Current, IP55 Protection, 250 mm Frame Size IP55

RS PRO IP55 Axial Fan is engineered for reliable and consistent industrial cooling performance. Designed with dual ball bearing technology, it reduces friction and wear to provide extended operational life. This axial fan operates on a 230 V AC supply with a power rating of 26 W and a maximum current of 0.24 A, making it an energy-efficient solution for various applications.

The fan features a thermally and EMC protected brushless motor allowing it to reach speeds of up to 2200 rpm, ensuring high airflow generation of 781.5 cubic meters per hour. Its frame is made from PET polymer which is fire rated to UL94V-0, paired with a durable metal propeller. This combination guarantees long-lasting robustness in demanding industrial environments.

The axial fan’s IP55 rating provides excellent protection against dust and water ingress, suitable for harsh conditions. With dimensions of 250 mm width, 250 mm height, and 76 mm depth, it fits well in various cooling assemblies and electronic equipment enclosures.

Additionally, this fan maintains a noise level not exceeding 55 dB, ensuring a quiet operation ideal for industrial automation, HVAC systems, and electronic thermal management. Its electrical insulation properties include an insulation resistance above 100 MOhm at 500 VDC and dielectric strength for 60 seconds at 1500 VAC, ensuring operational safety and durability.

The RS PRO IP55 Axial Fan complies with RoHS environmental standards and carries ISO 9001:2015 quality management certification. It is made in Taiwan, Province Of China, reflecting international manufacturing quality standards.

Equipped with dual ball bearing design for low friction and extended lifetime. 230 V AC brushless motor with thermal and EMC protection. High airflow capacity of 781.5 m³/h at 2200 rpm fan speed. Robust PET polymer frame fire rated to UL94V-0 with metal propeller.

Low noise operation at 55 dB suitable for industrial environments. IP55 ingress protection rating for use in dusty and wet conditions. Compact dimensions: 250 mm width, 250 mm height, 76 mm depth. Insulation resistance >100 MOhm at 500 VDC; dielectric strength 1500 VAC, 60 seconds.

RoHS compliant and ISO 9001:2015 certified quality standards.

This Axial Fan is ideal for industrial, laboratory, HVAC, manufacturing, and electronic cooling applications. Discover other quality industrial cooling fans and accessories in the EnvMart catalog to complete your thermal management needs.
