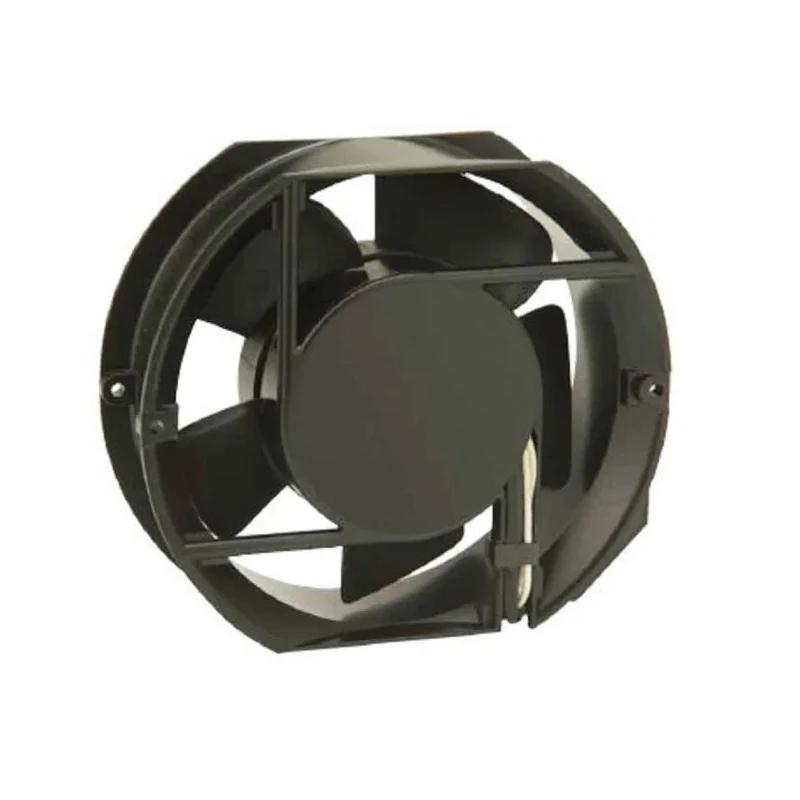

RS PRO AC Axial Fan 230V AC 29W 383.9 m³/h 3400 RPM Ball Bearing IP55 150x172x51 mm IP55

RS PRO IP55 AC Axial Fan model IP55 is engineered for reliable, high-performance air circulation in industrial and commercial environments. Operating at 230 V AC and consuming 29 W of power, this fan delivers an airflow capacity of 383.9 cubic meters per hour while maintaining a low noise level of 58 decibels, comparable to a normal conversation.

Designed with a robust die-cast aluminium round frame measuring 150 mm in height, 172 mm in width, and 51 mm in depth, this fan ensures durability and resistance to harsh conditions, including salt fog environments which prevent rust and corrosion.

The fan features a dual ball bearing mechanism that enhances operational stability and extends service life. With a backward curve blade design, it optimizes airflow and pressure with a speed of 3400 rpm and a static pressure of 0.79 in H2O, making it ideal for HVAC, manufacturing, water treatment, and other industrial applications.

Additional technical specifications include a maximum current rating of 120 mA, wire terminal type for easy installation, and thermal motor protection for safety during operation. The unit complies with the Restriction of Hazardous Substances (RoHS) directive, ensuring environmentally responsible materials.

This Axial Fan is designed to keep machinery and workplace environments cool and operational even under extreme temperatures ranging from -30°C to +80°C. Its IP55 ingress protection rating confirms robust dust and water resistance suitable for industrial settings.

Operates on 230 V AC with power consumption of 29 W. Generates airflow of 383.9 m³/h for efficient cooling. Backward curve blade and 3400 rpm fan speed optimize airflow and pressure. Durable die-cast aluminium frame with salt fog resistance.

Dual ball bearing and thermal motor protection for extended life and safety. Noise level rated at 58 dB for quieter operation. IP55 protection rating against dust and water ingress. Wire terminal termination for easy electrical connection.

Complies with RoHS standards ensuring low hazardous material use.

Ideal for industrial, HVAC, manufacturing, and thermal management applications requiring robust, efficient air movement with durability and safety. Available as part of the RS PRO series, this fan is a trusted choice for professional environments requiring reliable ventilation solutions.
