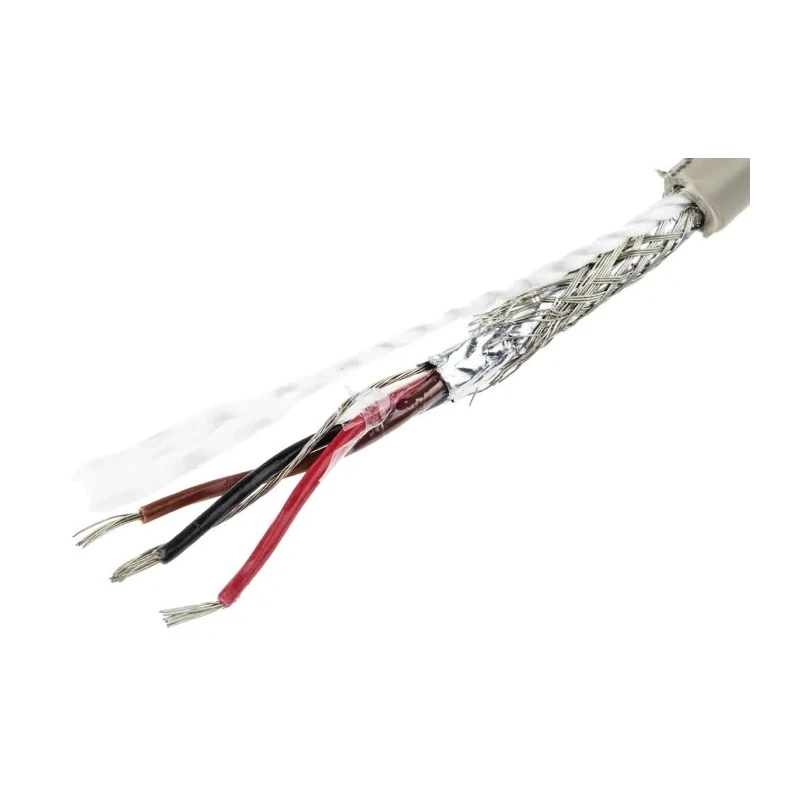

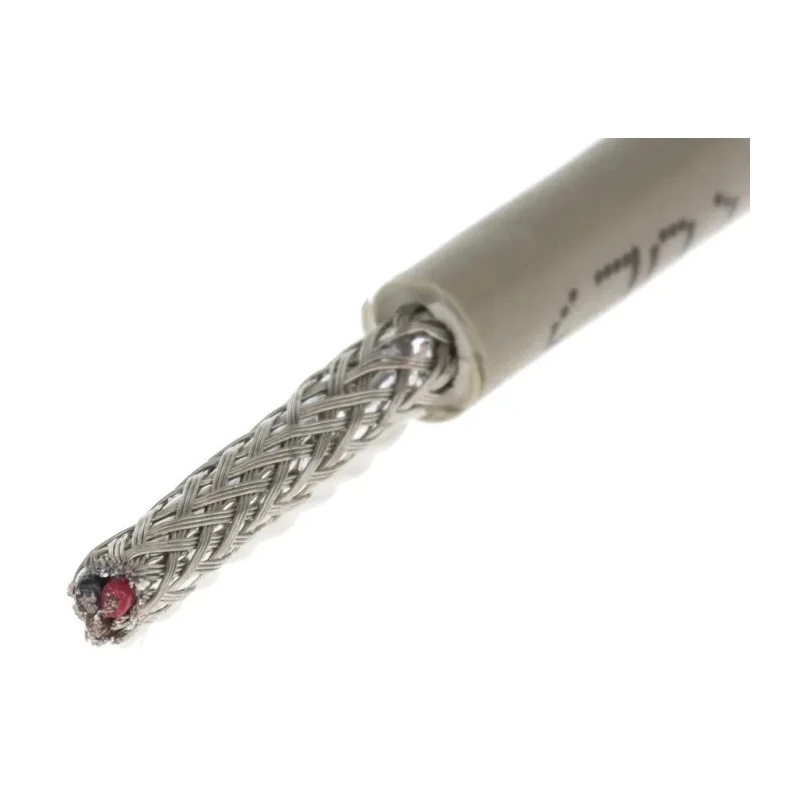

Alpha Wire Pro-Tekt Series Data Cable 2 Pairs 3 Cores 100 m Grey Sheath Polyvinyl Chloride B953034 GE033
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | B953034 GE033 |
| Cable Length | 100m |
| Series | Pro-Tekt |
| Outside diameter | 4.83mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.190 inch (4.83 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Number of Pairs | 2 |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
| RS PRO Data Cable 3 Cores 0.22 mm² 100 m Grey Sheath Polyvinyl ChlorideBrand | RS PRO |
Key Features
- The cable operates at a voltage rating of 300V and offers flame retardant properties.
- Constructed with tin copper wire conductors, it has 7 strands per core, each strand being 0.2 mm in diameter.
- Its jacket is made from premium grade polyvinyl chloride, providing UV and oil resistance.
- The cable offers an operating temperature range from -30°C to 105°C, suitable for demanding environments.
- Its nominal diameter is 4.83 mm with a jacket thickness of 0.032 inch (0.81 mm).
- The design includes colour-coded black, brown, and red conductors for ease of identification.
- It complies with CE, CSA Certified, and UL standards ensuring high safety and performance.
- The cable is flame retardant and suitable for industrial automation, medical, aerospace, petrochemical, and commercial electronics use cases.
Product Description
Alpha Wire B953034 GE033 Pro-Tekt Series Data Cable is a high-quality 2 pairs 3 cores cable measuring 100 meters in length, sheathed in a durable grey polyvinyl chloride jacket. With a voltage rating of 300V, this cable is engineered for robust industrial and commercial applications.
The cable features stranded tin copper conductors with 7 strands of 0.2 mm diameter each, providing flexibility and reliable conductivity. The jacket's flame retardant PVC material offers protection against UV radiation and oil, enabling safe operation in harsh environments. Its nominal diameter is 4.83 mm, with a jacket thickness of 0.032 inch (0.81 mm), ensuring a compact and easy-to-handle form factor.
The cable operates within a temperature range of -30°C to +105°C, making it suitable for diverse applications such as industrial automation, medical technology, aerospace, petrochemical industries, and commercial electronics. The Pro-Tekt range is specifically designed to combine data, power, coaxial, and audio-visual cores into a single versatile cable.
Colour-coded conductors (black, brown, red) facilitate straightforward installation and maintenance. The cable complies with CE, CSA Certified, and UL standards, providing assurance of quality and safety in critical installations.
Flame retardant and UV/oil resistant jacket enhances durability. Flexible stranded tin copper conductors promote easy routing. Certified to CE, CSA, and UL standards for safety. Suitable for industrial, medical, aerospace, and commercial use.
Compact design with nominal diameter 4.83 mm and jacket thickness 0.032 inch.
This Pro-Tekt cable delivers superior performance for demanding environments and sophisticated cabling needs. It integrates multiple cores and pairs suitable for combined data and power applications, reducing downtime and maintenance costs.
Explore the extensive range of Alpha Wire cables and high-quality data transmission solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 300V.
It has a maximum operating temperature of 105°C.
This data cable features 3 cores.
The conductors are made from tin copper wire.
The nominal diameter of the cable is 4.83 mm.
The jacket is made from polyvinyl chloride (PVC), which is flame retardant and resistant to UV and oil.
The jacket thickness is 0.032 inch (0.81 mm).
This model measures 100 meters in length.
The conductors are color-coded black, brown, and red for ease of identification.
It complies with CE, CSA Certified, and UL standards.
The minimum operating temperature is -30°C.
It is suitable for industrial automation, medical technology, aerospace, petrochemical industries, and commercial electronics.
