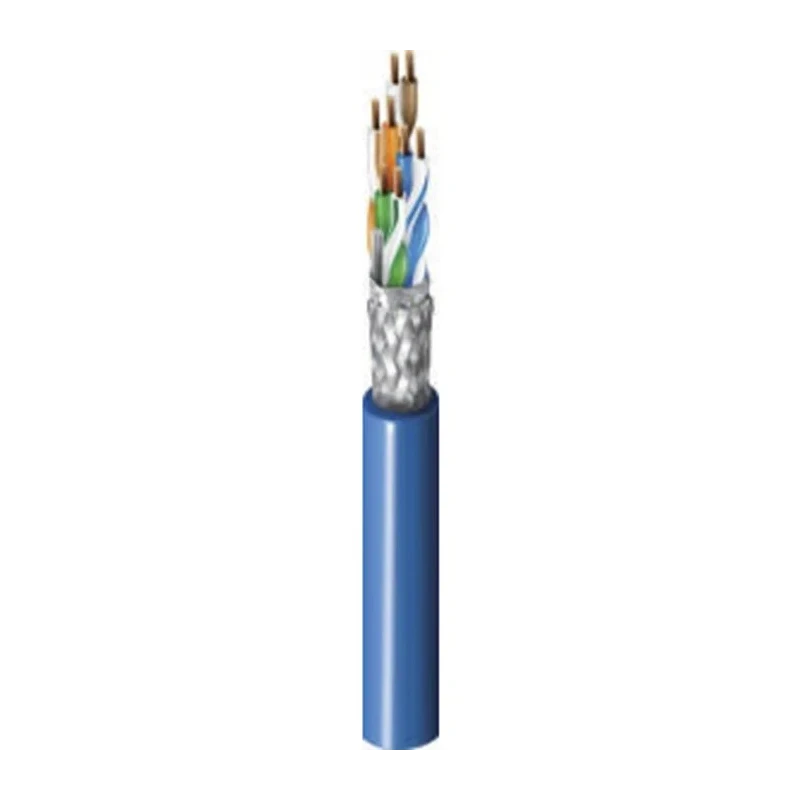

Belden Cat6a Ethernet Cable, Shielded Screened, Blue Low Smoke Zero Halogen Jacket, 500 m Length, 72V Voltage Rating 2202ENH

Name: Belden Cat6a Ethernet Cable, Shielded Screened, Blue Low Smoke Zero Halogen Jacket, 500 m Length, 72V Voltage Rating 2202ENH
Brand: BELDEN
SKU: 240938
Price: 1447.86 USD
Availability: InStock



Category Ethernet Cable Brand BELDEN Condition New

Specifications

Country of Origin	Hungary
Voltage	72V
Brand	Belden
Model	Cat6a
Cable Length	500m
Series	2202ENH
Outside diameter	7mm
Maximum Operating Temperature	60°C
Conductor Material	Copper
Minimum Operating Temperature	-30°C
Jacket Material	Low Smoke Zero Halogen
Shield Type	Shielded
Jacket Colour	Blue
Fire Behaviour	Low Smoke Zero Halogen (LSZH)
Screened/Unscreened	Screened
Conductor Type	Solid
LAN Category	Cat6a
Terminated/Unterminated	Unterminated

Key Features

Supports transmission rates up to 10 Gbps with 500 MHz frequency.
Features shielded foiled twisted pairs to prevent crosstalk and electromagnetic interference.
Constructed with solid copper conductors for low electrical resistance and reliable connectivity.
Suitable for low voltage applications with a 72V rating.
Operates reliably within a temperature range from -30°C to 60°C.
Complies with multiple standards including ANSI/TIA/EIA 568-B.2-1 and ISO/IEC 11801.
Has a 7 mm outside diameter with low capacitance of 1600 pF/m.
Lightweight at 52 kg per kilometer for easy handling on-site.

Product Description

Belden 2202ENH Cat6a Ethernet Cable offers a robust solution for high-performance networking with 500 meters cable length and shielded screened construction. Designed with a blue Low Smoke Zero Halogen (LSZH) jacket, this cable ensures safety and reliability in industrial and broadcast environments.

Featuring copper solid conductors, the cable enables efficient data transmission with low electrical resistance. The S/FTP shielding protects against crosstalk and electromagnetic interference, ensuring noiseless and stable network connectivity at transmission speeds up to 10 Gbps at 500 MHz.

Its voltage rating of 72V suits various low-voltage industrial applications. Operating reliably between -30°C and 60°C, it suits demanding environments with adherence to recognized standards such as ANSI/TIA/EIA 568-B.2-1, EN 50173-1, IEC 60332, and ISO/IEC 11801 to guarantee quality and performance.

With a 7mm outside diameter and a light bulk cable weight of 52kg/km, the cable is manageable for installation and deployment. Its low smoke zero halogen jacket ensures minimal smoke emission and toxicity during fire, enhancing operator safety.

Supports transmission rates up to 10 Gbps with 500 MHz frequency. Shielded foiled twisted pairs minimize signal interference. Solid copper conductors for reliable connectivity. Voltage rating suitable for low-voltage applications at 72V.

Wide operating temperature range from -30°C to 60°C. Compliant with international industry networking and fire safety standards. 7 mm diameter with low capacitance ensuring high signal integrity. Lightweight and easy to handle, 52 kg per km.

Blue LSZH jacket for fire safety and minimal toxic smoke. Ideal for use in industrial networks, TV/radio broadcast stations, and data server banks.

This cable is a premium choice for professionals working in industrial, commercial, and broadcasting sectors ensuring high performance and safety. Explore our entire range of Ethernet Cables and networking equipment at EnvMart for comprehensive solutions.
