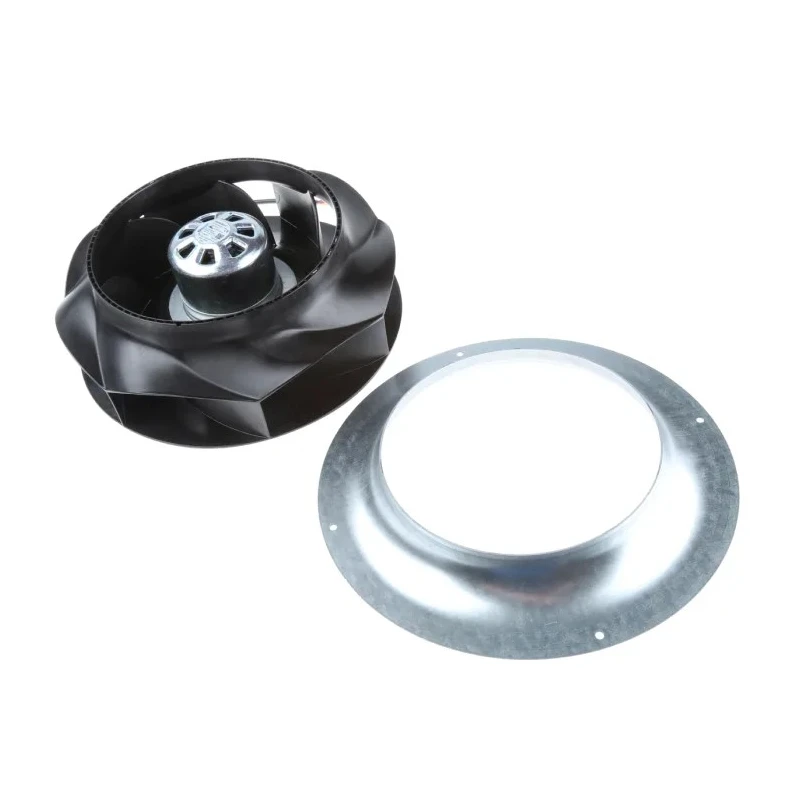

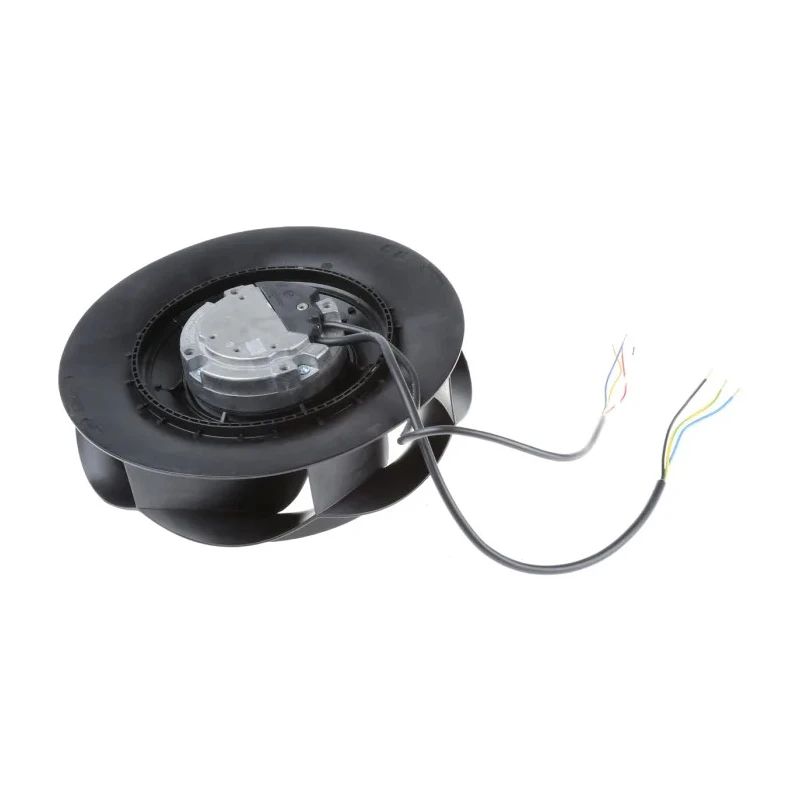

ebm-papst RadiCal Series Centrifugal Fan AC Operation 230V 1430 m³/h 2510rpm IP54 Ball Bearing R3G250-RE07-07
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Fan Speed | 2510rpm |
| Air Flow | 1430m³/h |
| Model | R3G250-RE07-07 |
| Depth | 99mm |
| IP Rating | IP54 |
| Width | 250mm |
| Static Pressure | 380Pa |
| Series | RadiCal |
| Maximum Current | 1.4A |
| Terminal type | Crimped Splices |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | CSA, EAC, RoHS, ISO, CE, CCC, UL, EN |
| AC or DC Operation | AC |
| Commutation Type | Electronic |
| Better World Claim | Saves Energy |
| Sensor Output Type | PWM |
| ebm-papst R2E225 Series Centrifugal Fan, 1340m³/h, AC OperationBrand | ebm-papst |
Key Features
- Operates on 230V AC power with electronic commutation type.
- Delivers airflow capacity of 1430 cubic meters per hour at 2510 RPM.
- Constructed with corrosion-resistant hybrid impellers and ball bearings for durability.
- Features IP54 rating ensuring protection against dust and water splashes.
- Includes an inlet ring and crimped splice terminal for easy installation.
- Meets multiple standards including CSA, EAC, RoHS, ISO, CE, CCC, UL, and EN certifications.
- Designed for applications such as control cabinet cooling, in-line duct fans, and heat pumps.
- Maximum current draw is 1.4A with a static pressure capacity of 380 Pa.
Product Description
ebm-papst R3G250-RE07-07 RadiCal Series Centrifugal Fan is a high-performance AC centrifugal fan operating at 230V AC with a rated airflow of 1430 m³/h. Its design utilizes a state-of-the-art GreenTech EC motor and aerodynamic curved impellers to reduce noise emissions and improve energy efficiency.
The fan features a hybrid construction that enhances corrosion resistance, making it suitable for demanding industrial and commercial applications. The ball bearing type assures long service life and smooth operation.
This centrifugal fan achieves a fan speed of 2510 rpm with a maximum current consumption of 1.4A and a static pressure rating of 380 Pa, suitable for ventilation and cooling tasks in HVAC systems, control cabinet cooling, and in-line duct fans.
With an IP54 ingress protection rating, this fan is safe from dust ingress and low-pressure water jets, enhancing reliability in harsh environments. It includes a crimped splice terminal type and comes with an inlet ring for efficient airflow handling.
The fan complies with several international standards such as CSA, EAC, RoHS, ISO, CE, CCC, UL, and EN, reflecting its quality and environmental responsibility in line with the Better World program that focuses on energy savings.
Operates on 230V AC power with electronic commutation type. Delivers airflow capacity of 1430 m³/h at 2510 rpm. Features corrosion-resistant hybrid impellers and robust ball bearings. IP54 rated for dust and splash water protection.
Includes inlet ring and crimped splice terminal for installation. Certified across multiple international standards. Designed for control cabinet cooling, HVAC, duct fans, and heat pumps. Maximum current of 1.4A with static pressure of 380 Pa.
Equipped with PWM sensor output for precise speed control. Manufactured in Germany ensuring superior quality.
Ideal for industrial, commercial HVAC, manufacturing ventilation, and laboratory air management. Suitable for energy-efficient cooling solutions and environmental sustainability programs. Discover a wide range of Centrifugal Fans and HVAC components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an airflow capacity of 1430 cubic meters per hour.
The fan operates at a speed of 2510 RPM.
The maximum current draw is 1.4A.
It has a static pressure capacity of 380 Pa.
It operates on 230V AC power.
This fan has an IP54 rating, providing protection against dust and water splashes.
The fan features corrosion-resistant hybrid impellers and ball bearings.
The fan has a depth of 99 mm and a width of 250 mm.
It includes a crimped splice terminal for easy installation.
It meets multiple standards including CSA, EAC, RoHS, ISO, CE, CCC, UL, and EN certifications.
It is designed for applications such as control cabinet cooling, in-line duct fans, and heat pumps.
This model uses ball bearings for its operation.
