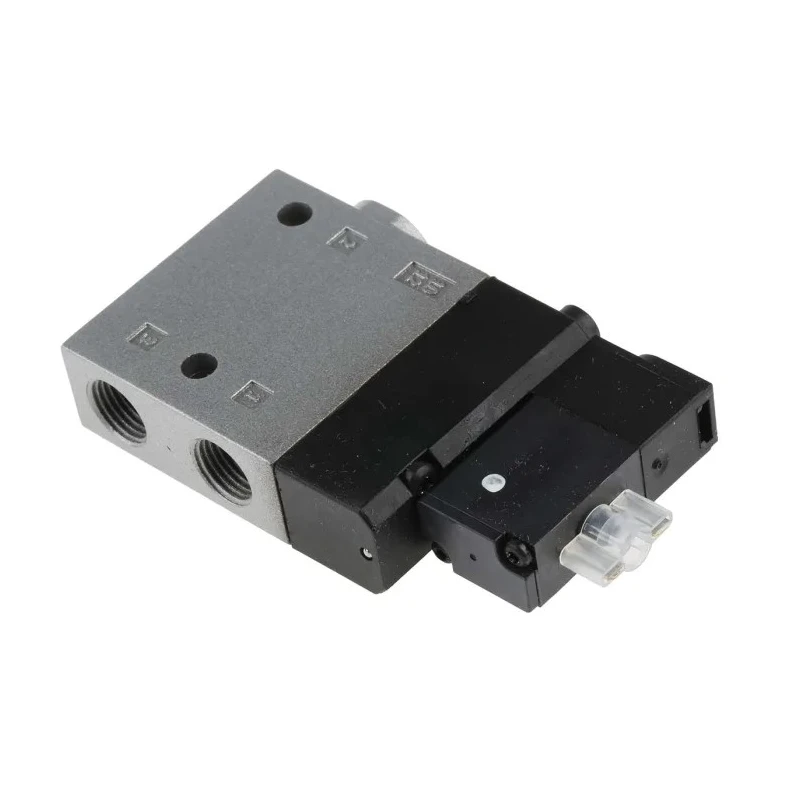

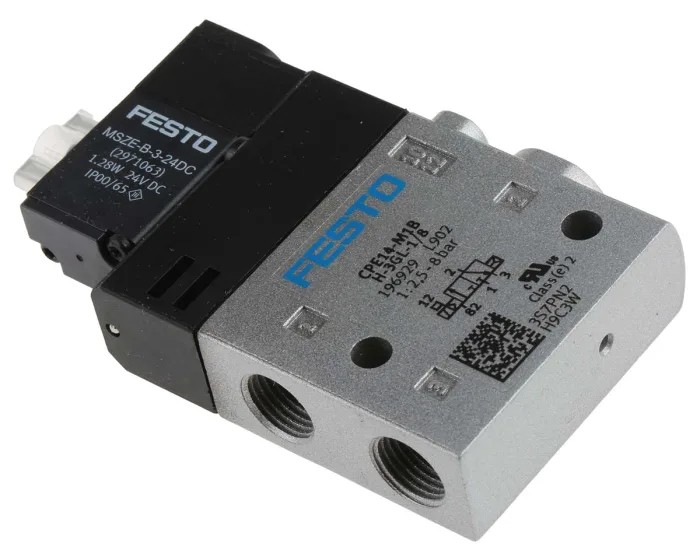

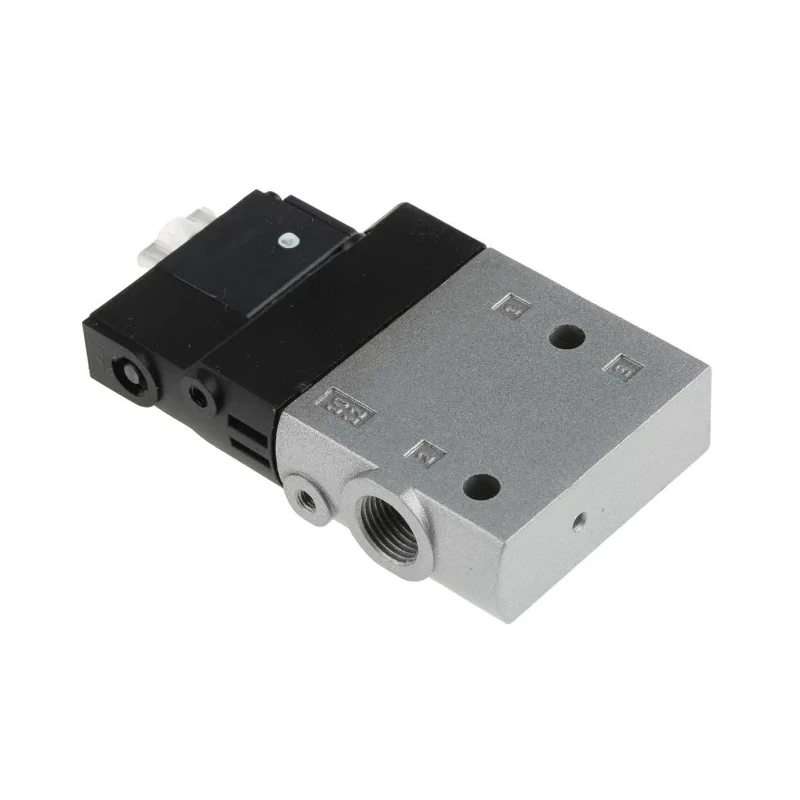

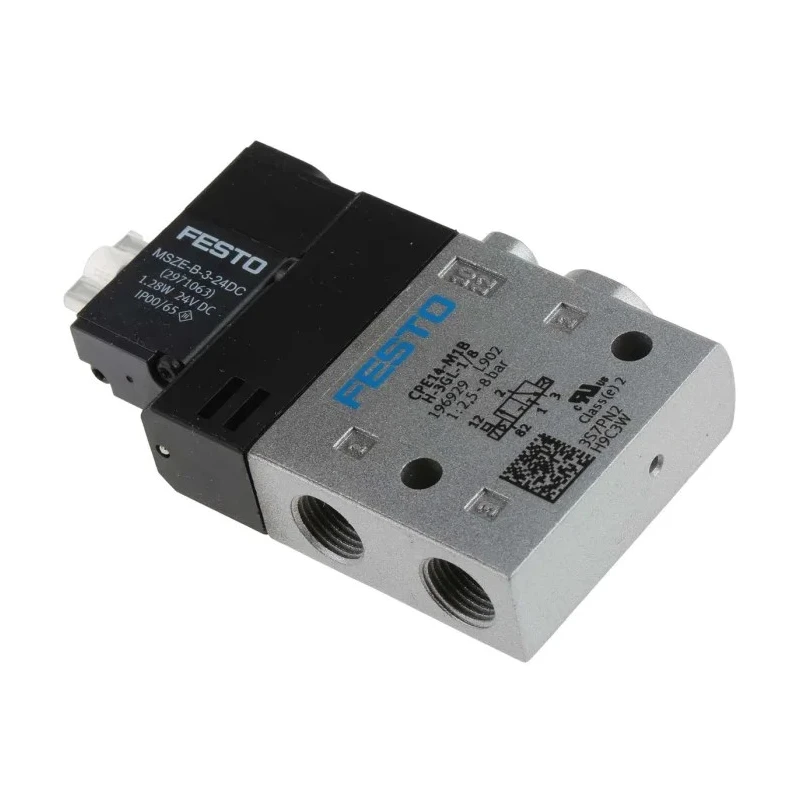

Festo Solenoid Pilot Valve Electric G 1/8 Threaded Push-in Port 24V dc 3/2 8 bar Aluminium Body CPE14-M1BH-3GL-1/8

Festo CPE14-M1BH-3GL-1/8 Solenoid Pilot Valve Electric 24V dc is a durable, industrial-grade pneumatic valve designed for efficient control within compressed air systems. Built with a robust aluminium body, it withstands mechanical impact, abrasion, and heavy usage, ensuring longevity in challenging environments.

The valve operates on a 3/2 configuration comprising three ports: supply, output, and exhaust, with a 3-port, 2-position function. Its maximum operating pressure is rated at 8 bar while the pilot pressure ranges from 0.9 bar minimum to 10 bar maximum. This ensures reliable actuation even under varying pressure conditions.

The valve's electrical actuation requires just 1.28 Watts, highlighting its energy-efficient design. Operating on a 24V dc power supply, it features a 2-pin electrical connection and a rapid switching-on time of 16 milliseconds. The device supports installation in any orientation due to its through-hole mount design, providing flexibility during setup.

Its performance is stable within an operating temperature range of -5°C to +50°C, supporting use in diverse environments. The valve is rated IP65, offering complete protection against dust ingress and resistance to water jets, making it suitable for harsh industrial settings.

Typical applications include automotive manufacturing lines, medical equipment pneumatic systems, and agricultural machinery pneumatic controls. Its maximum flow rate of 800 L/min allows powering of demanding pneumatic applications requiring fast and responsive valve operation.

The valve complies with RoHS and c UL US standards, assuring quality and safety. Its compact width of 14 mm facilitates integration into space-constrained systems. The valve functions as a 3/2 valve with three ports for supply, output, and exhaust.

Robust aluminium body resists impacts, abrasion, and mechanical stress for extended durability. Operates efficiently between -5°C and 50°C, suitable for challenging industrial conditions. Rated IP65 for dust and water jet protection.

Employs low solenoid power consumption for energy savings. Supports through-hole mounting for stable, vibration-resistant installation. Designed for high performance with a maximum flow rate of 800 L/min. Ideal for automotive, medical, and agricultural pneumatic systems.
