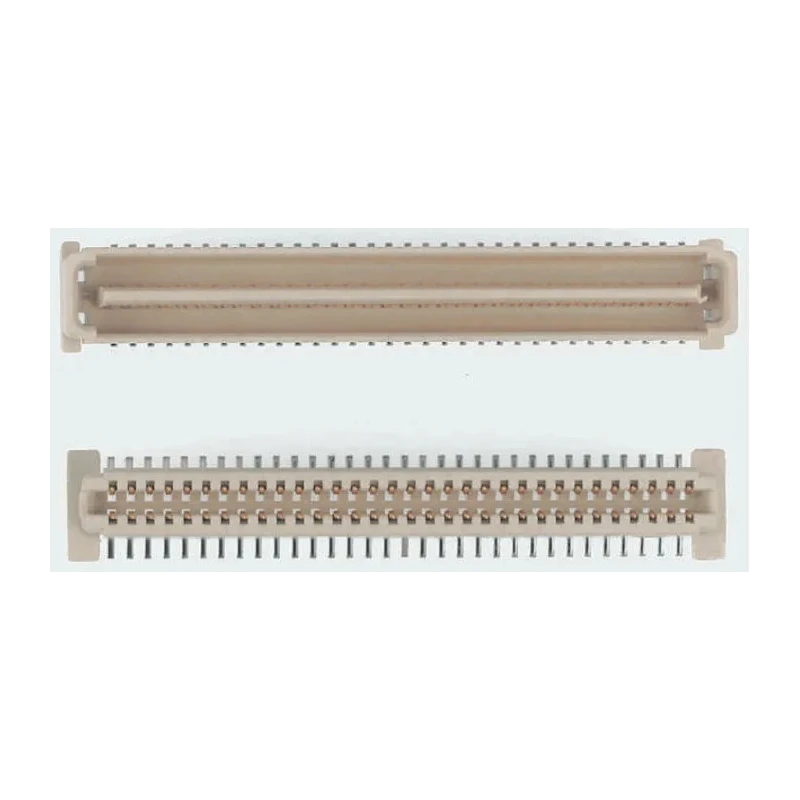

Molex PMC Mezzanine Series Straight Surface PCB Socket, 64-Contact, 2 Row, 1 mm Pitch Solder 71439-0464

Molex 71439-0464 PMC Mezzanine Series Straight Surface PCB Socket is a high-quality, 64-contact, dual-row PCB socket designed for vertical stacking applications. It features a 1 mm pitch and solder termination suitable for surface mount technology (SMT).

The socket utilizes a high-temperature liquid crystal polymer (LCP) thermoplastic housing that withstands reflow soldering and ensures durability during manufacturing processes. Its shrouded leaf design minimizes damage to header contacts and provides low insertion force, improving user experience and reliability.

This PCB socket supports LAN, WAN, telecommunications, PC, and workstation applications with a 100 V voltage rating and 12 A current capacity. Its board-to-board connection system is tailored for PMC Mezzanine IEEE 1386 receptacles, enabling seamless connection of mezzanine cards to host boards such as VMEbus and Multibus systems.

The contacts are female, made from bronze with gold plating to guarantee secure and corrosion-resistant electrical connections. The product operates reliably within a temperature range of -55°C to 85°C, making it suitable for a variety of industrial and electronic environments.

The dual-row configuration features a row pitch of 1.4 mm, with mated heights from 8 to 15 mm, allowing flexible stacking options in complex electronic assemblies. This product is manufactured in the United States and is a trusted component widely used in industrial and commercial electronics assembly.

Supports vertical stacking SMT header and socket configurations. Uses high-temperature LCP thermoplastic housing suitable for reflow soldering. Features low insertion force with shrouded leaf design for contact protection.

Compatible with LAN, WAN, telecommunications, PC, and workstation applications. Rated for 100 V voltage and 12 A current capacity. Bronze female contacts with gold plating for reliable connectivity. Operates within -55°C to 85°C temperature range.

1 mm pitch with 2 rows and 1.4 mm row pitch configuration. Mated heights available from 8 to 15 mm.

This Molex PMC Mezzanine Series PCB socket is ideal for construction of communication systems, industrial control panels, and computer hardware requiring dependable board-to-board connections. It enhances manufacturing efficiency through its robust design and adherence to engineering standards. Explore Molex components and other PCB Sockets at EnvMart for comprehensive selection and quality assurance.
