Molex PicoBlade Series Right Angle Through Hole PCB Header, 14 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53048-1410

Molex 53048-1410 PicoBlade Series Right Angle Through Hole PCB Header is designed for high-density wire-to-board interconnection with a compact 1.25 mm pitch and 14 male contacts arranged in one row. Its shrouded, right angle orientation enhances mechanical protection and connection reliability. This header supports a current rating of 1 ampere and a voltage rating of 125 V, suitable for compact electronic designs requiring secure and space-efficient connectors.

The housing is manufactured from durable nylon providing insulation and mechanical stability while the contacts use phosphor bronze material with tin plating to deliver excellent conductivity and corrosion resistance. The through hole mounting with solder termination offers robust retention and electrical connectivity on printed circuit boards.

Operating temperature bandwidth from -40°C up to 85°C makes this connector suitable for industrial, automotive, medical equipment, and consumer electronics applications where vibration resistance and secure mating are critical. The friction locking mechanism ensures that the connection remains intact under mechanical stresses.

Compact 1.25 mm pitch design enables PCB space saving up to 45% compared to traditional 2.00 mm pitch headers. Friction lock prevents accidental disconnections caused by vibration or mishandling. Solder tabs provide secure PCB retention and reduce strain on solder joints.

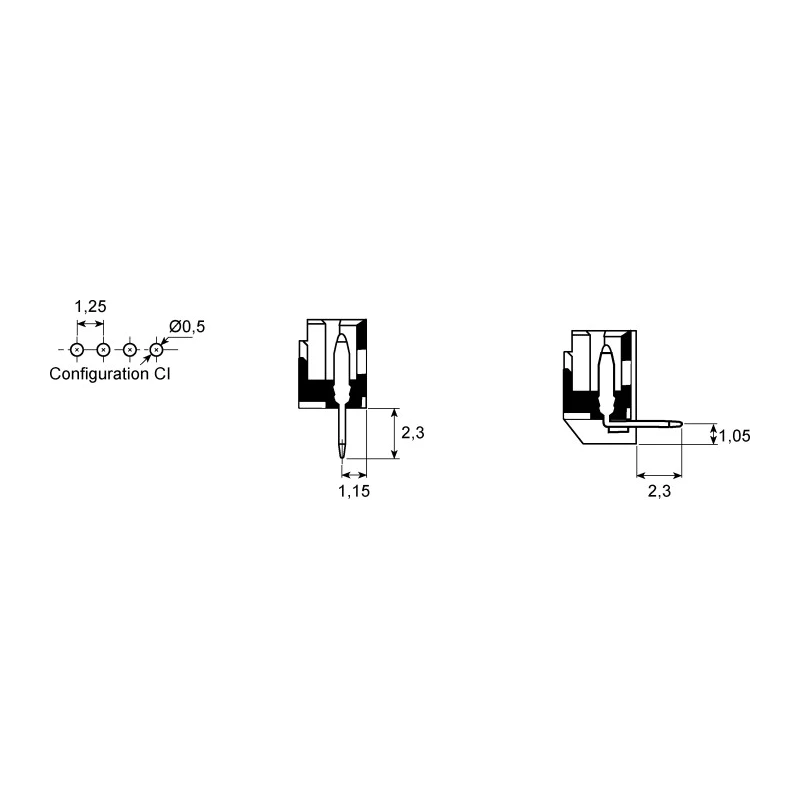

The tail pin length of 2.3 mm ensures reliable solder joint formation. Male contact gender in a single row configuration. Right angle orientation suits space-constrained PCB layouts. Materials and plating resist corrosion and maintain electrical performance over time.

This connector is ideal for industrial automation, automotive alarm systems, car audio devices, DVD players, medical patient monitors, and industrial process controls requiring reliable and miniature wire-to-board interconnection systems. Molex PicoBlade Series connectors deliver excellent balance of compactness, secure mating, and electrical performance for demanding applications.
