Schurter Capacitive Switch Latching Momentary Illuminated RGB OptoMOS Relay IP67 Stainless Steel 3-101-404

Schurter 3-101-404 capacitive switch is a latching, momentary illuminated switch designed for robust industrial and automation applications. It features a capacitive touch sensor providing reliable switching with no mechanical wear due to the absence of moving parts. The switch offers both latching and momentary functions, controlled via an OptoMOS relay output for galvanic isolation and high reliability.

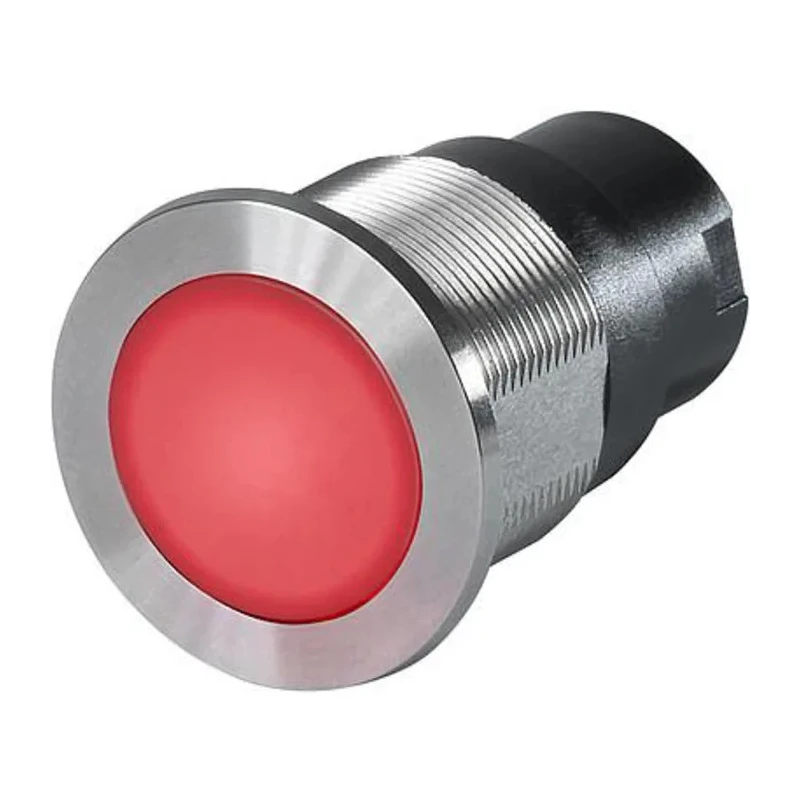

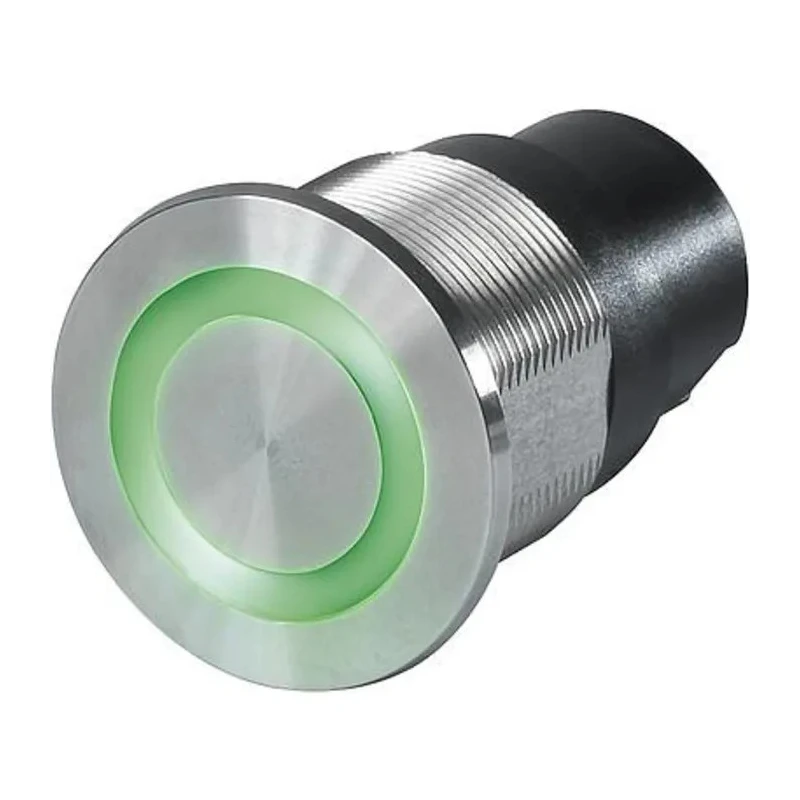

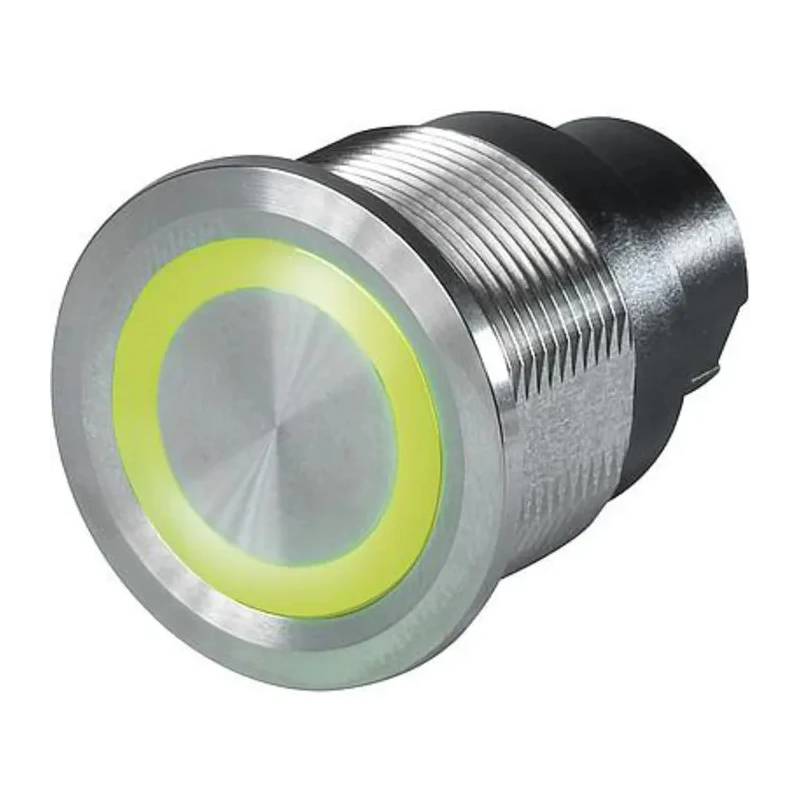

The device is housed in a stainless steel enclosure with a metallic color finish, offering excellent durability and vandal resistance. Its touch surface may be composed of scratch-resistant ceramics with area illumination or stainless steel with ring illumination, providing flexible design options. Multicolor RGB LED illumination adds user-friendly visual status feedback and can be customized for different color settings.

Electrically, the switch operates between 5V and 28V DC input voltages, with a maximum allowable current of 100mA. It is rated for IP67, allowing operation in wet or dusty environments. The operating temperature range from -40°C to 60°C enables use in extreme conditions typical in industrial, automation, and outdoor equipment.

Additional features include protection against unintended switching, floating switch connections, and various illumination colors and combinations. The switch meets IEC and UL 60950 standards and complies with RoHS and REACH environmental regulations, assuring safety and environmental compliance.

This capacitive switch is well-suited for use in industrial automation, control panels, machinery interfaces, and applications requiring durable, reliable touch input devices with visual feedback and high ingress protection.

The switch supports latching and momentary operations with capacitive touch sensing. RGB multicolor illumination provides visual feedback with customizable LED colors. Housing is made of robust stainless steel, ensuring durability and vandal resistance.

OptoMOS relay output ensures reliable and galvanically isolated switching. Rated for 5V to 28V DC input with a maximum current rating of 100mA. IP67 protection makes it suitable for harsh industrial and outdoor environments.

Operating temperature ranges from -40°C to 60°C for wide application versatility. Scratch-resistant ceramic or stainless steel touch surfaces enhance wear resistance. Features floating switch connections and protection against unintended switching.

Complies with IEC/UL 60950 standards and is RoHS and REACH compliant.
