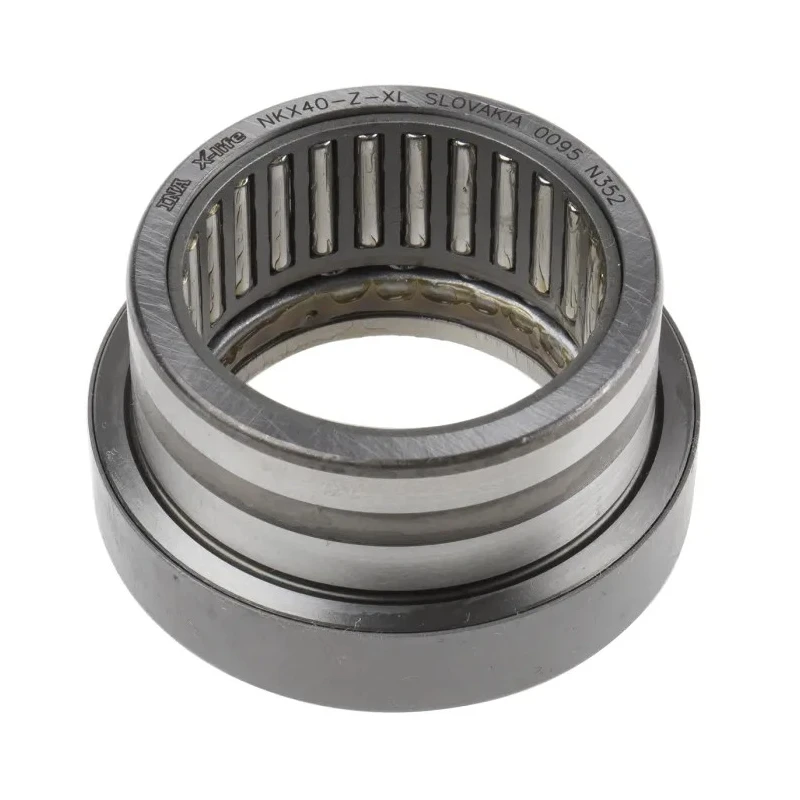

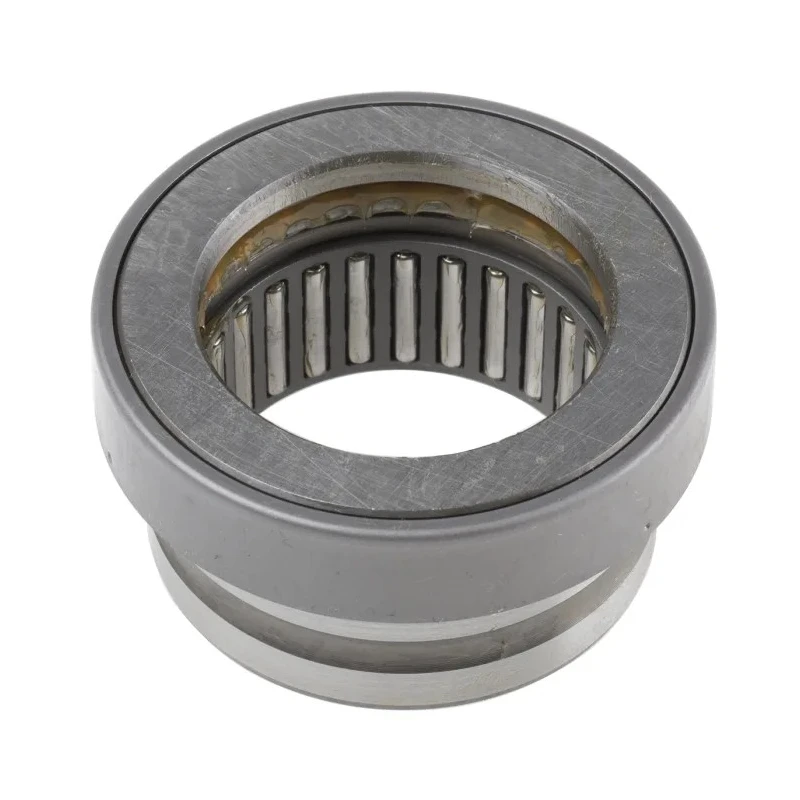

INA Needle Roller Bearing 40 mm ID, 52 mm OD, 32 mm Width, Sheet Steel Cage, Sealed End NKX40-Z-XL

INA NKX40-Z-XL is a high-quality needle roller bearing designed to support both radial and axial loads with a 40 mm inside diameter, 52 mm outside diameter, and a race width of 32 mm. The bearing cage is made from sheet steel, providing robust mechanical strength and reliable operation under demanding industrial conditions. This bearing features a sealed end, enhancing its resistance to dust and contaminants, thereby increasing service life and reliability.

The bearing is constructed with two rows of needles, offering outstanding load carrying capacity and the ability to handle axial forces in one direction while maintaining excellent rotation accuracy and stability. Its parallel bore type allows for straightforward installation and secure fitting in shafts and housings.

Designed for use in various industrial fields such as manufacturing machinery, material handling equipment, and fluid power systems, this bearing provides dependable performance. With a maximum operating speed of 4000 rpm (oil-lubricated), a static load rating of 63000N, and a dynamic load rating of 47000N, it ensures efficiency in high-speed and high-load applications.

Although this model does not carry specific industry standards or certifications, it is engineered to meet the demanding requirements of mechanical machinery and fluid power applications. Its sealed design minimizes the need for frequent maintenance and protects internal components from environmental wear.

Constructed with sheet steel cage material for durability. Sealed end type for protection against contaminants. Capable of supporting axial forces in one direction. Maximum oil-lubricated operating speed of 4000 rpm. Static load rating of 63000N and dynamic load rating of 47000N.

Two rows of rollers enhance load capacity and stability. Bore type is parallel for easy installation and alignment. Designed for industrial, mechanical, and manufacturing applications. No specific standards or approvals applicable.

This INA bearing model NKX40-Z-XL is ideal for rotary bearing and housing unit applications where precision needle Roller Bearings are required for compact and lightweight machines. Suitable for environments such as industrial equipment, conveyor machinery, and other mechanical assembly systems.

Explore a wide range of bearings and rotary bearing units from INA and other leading brands available at EnvMart for reliable, precision-engineered solutions.
