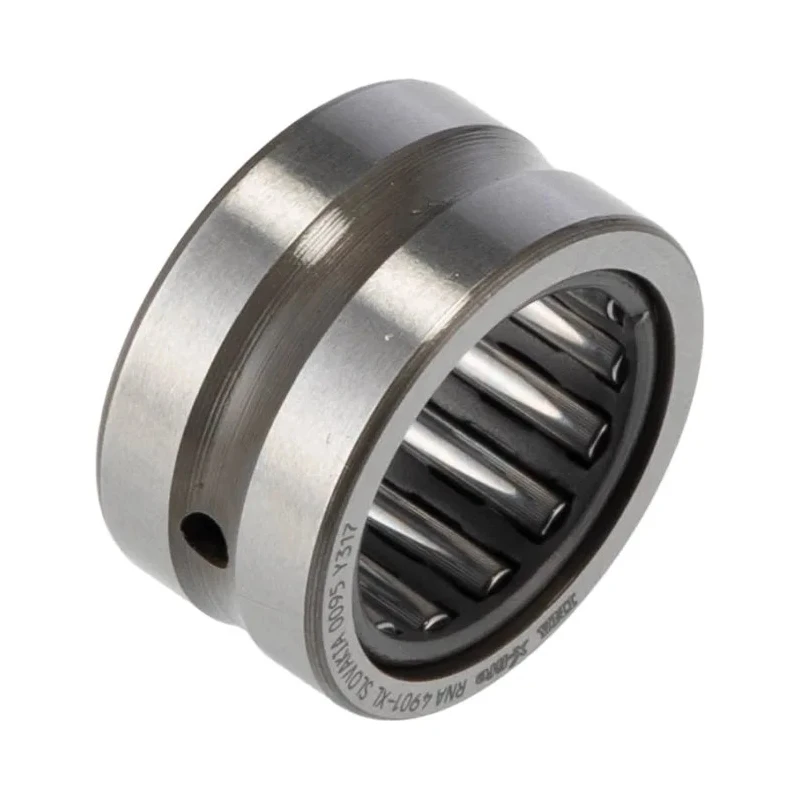

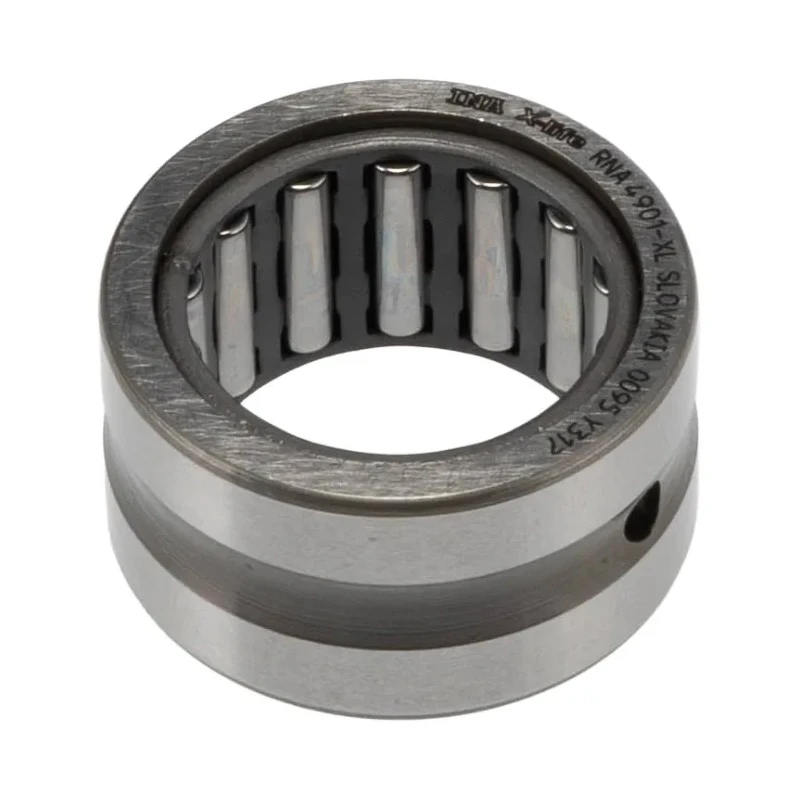

INA Needle Roller Bearing 16 mm ID, 24 mm OD, 13 mm Race Width, Steel Cage RNA4901-XL

INA RNA4901-XL needle roller bearing is designed for high-performance rotary bearing applications requiring a 16 mm inside diameter and 24 mm outside diameter, with a 13 mm race width. It features a durable steel cage and is a single-row unit with a parallel bore and open end type. This needle roller bearing is engineered for industrial, manufacturing, and mechanical machinery environments requiring high load capacity and operational reliability.

The bearing carries static and dynamic load ratings of 10.9 kN and 10.6 kN respectively, making it suitable for heavy-duty applications. It operates at limiting speeds of up to 23,200 rpm and supports lubrication using oil at 24,000 rpm max speed or grease up to 13,900 rpm, providing flexibility for different maintenance regimes.

As an X-life bearing, RNA4901-XL offers optimised raceway surfaces, delivering higher load capacities and longer bearing life, thereby saving energy and reducing operational costs. The needle roller bearing does not include an inner ring but maintains precision and quality performance standards expected from INA products.

Constructed with a steel cage for durability. Single row needle roller bearing design. Parallel bore type with an open end. Static load rating of 10.9 kN for enhanced load support. Dynamic load rating of 10.6 kN ensuring longevity under dynamic stresses.

Supports maximum speeds of 24,000 rpm with oil lubrication and 13,900 rpm with grease. Better World product contributing to sustainability through extended bearing life.

This bearing is ideal for industrial applications in mechanical machinery and manufacturing sectors, requiring reliable rotary bearing solutions with a compact size and high-performance characteristics. Explore more INA Roller Bearings and mechanical components on EnvMart for optimized durability and industrial reliability.
