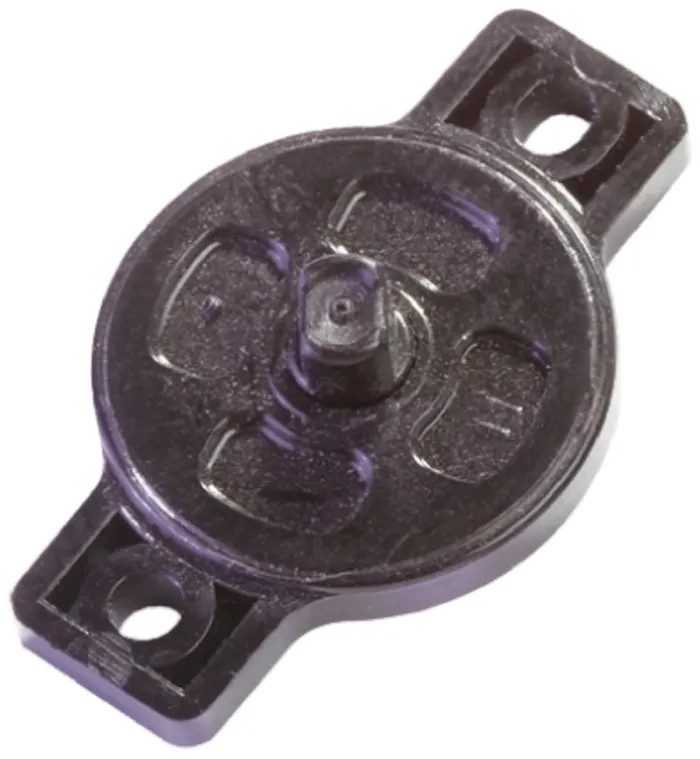

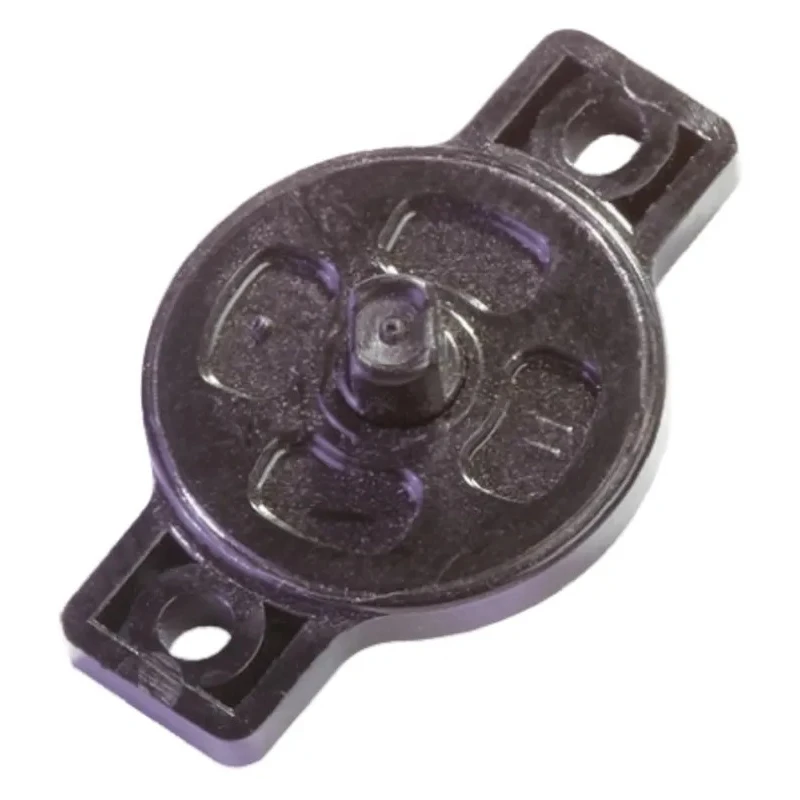

ACE Rotary Damper 14 Teeth, 7 mm Pitch Circle Diameter, Torque Range 0.6 ± 0.12 Ncm, Operating Temperature 0°C to FRT-G2-600

ACE FRT-G2-600 rotary damper is engineered to provide smooth and reliable mechanical motion damping using silicone fluid resistance. It is designed to protect sensitive and expensive equipment from damage caused by sudden or abrupt closing of panels, doors, or drawers. This damper features a compact design constructed from durable polycarbonate plastic, ensuring stable performance even under frequent use.

The damper includes 14 gear teeth with a pitch circle diameter of 7 mm, supporting precise mechanical engagement and torque transmission in the range of 0.6 ± 0.12 Ncm. It operates reliably within a temperature range from 0°C up to a maximum of 50°C, making it suitable for varied environmental conditions. The damper is maintenance free, designed for longevity exceeding 50,000 cycles, and provides effective damping in both rotational directions.

Its compact size and high energy absorption characteristics help absorb shocks and vibrations efficiently, extending the operational life of enclosures and equipment. The maximum cycle rate is 10 cycles per minute, allowing it to handle rapid repetitive motions without performance degradation.

The product is ideal for industrial, mechanical, fluid power, and electronic enclosure applications where controlled movement and protection against damage from mechanical shock are critical. Typical uses include factory automation machinery, instrumentation panels, HVAC control enclosures, and other mechanical assemblies requiring smooth closing actions.

The damper has 14 gear teeth and a pitch circle diameter of 7 mm. Operates within a torque range of 0.6 ± 0.12 Ncm. Maximum operating temperature is 50°C and minimum is 0°C. Maintenance free with a life expectancy over 50,000 cycles.

Compact polycarbonate plastic design with high energy absorption. Damping function works in both directions. Maximum cycle rate is 10 cycles per minute. Browse the Industrial Machines & Instruments category on EnvMart to discover more products like the ACE FRT-G2-600 rotary damper.
