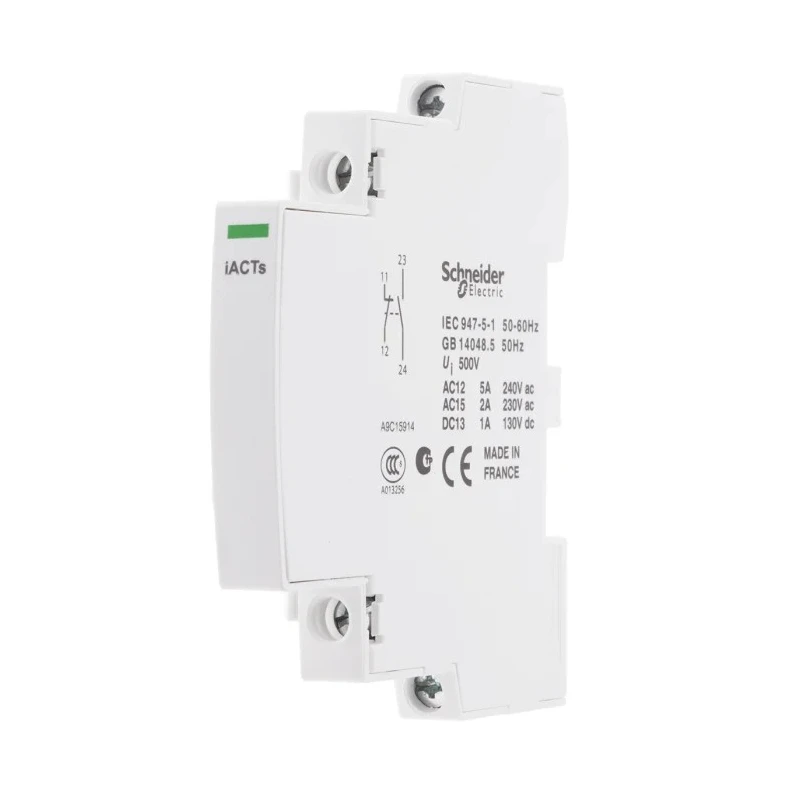

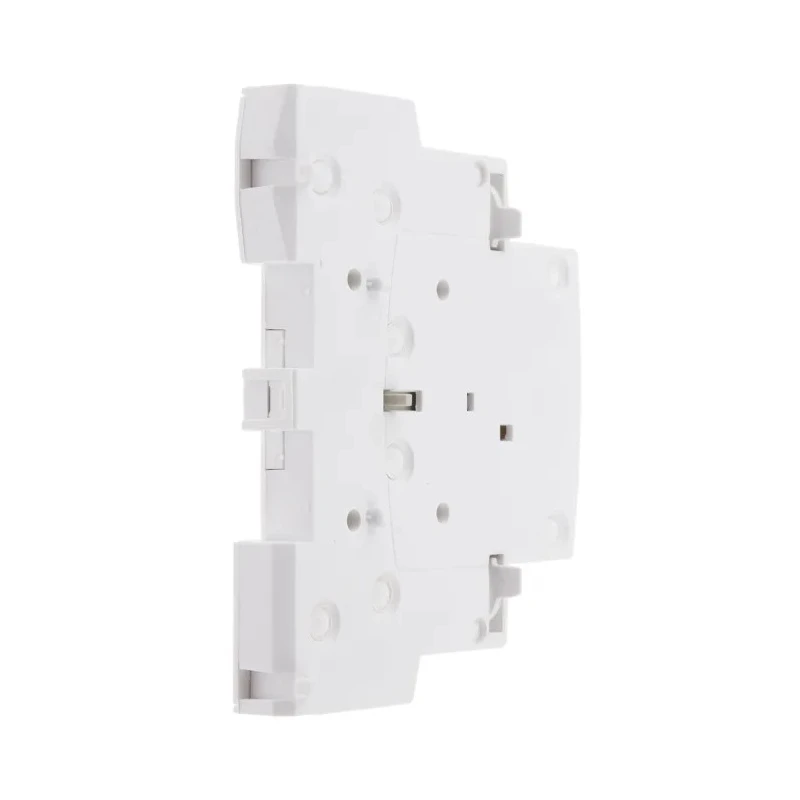

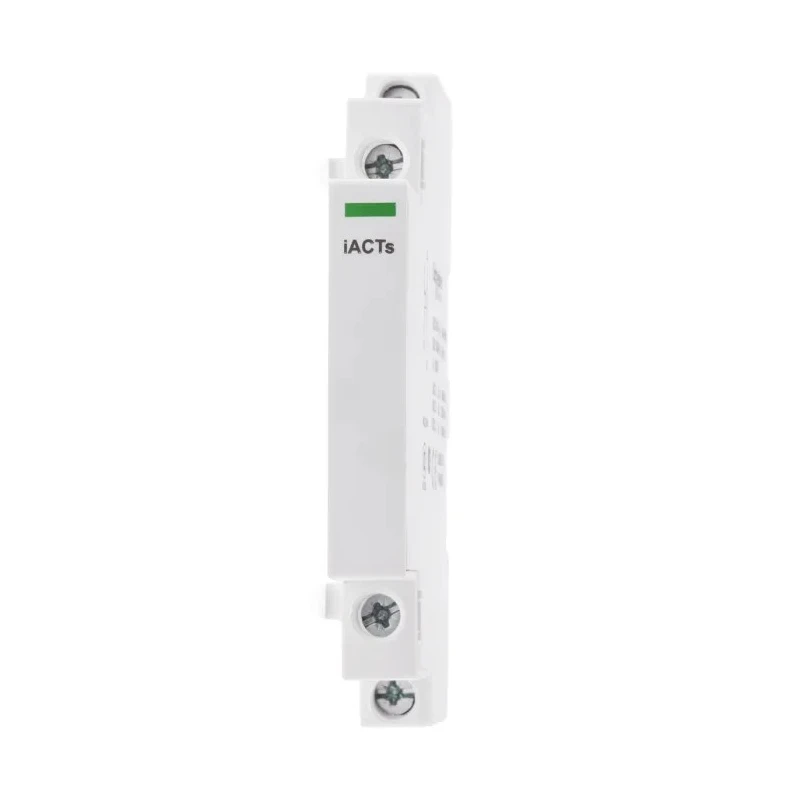

Schneider Electric iACT Contactor, 24V Coil, 2-Pole, 15 A, 30 W Power Rating, 1 NO/1 NC Auxiliary Contacts, DIN A9C15914
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 81mm |
| Model | A9C15914 |
| Depth | 68mm |
| Width | 9mm |
| Mount Type | DIN Rail |
| Series | iACT |
| Power Rating | 30W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 24, 130, 24, 240V dc |
| Coil Voltage | 24V |
| Normal State Configuration | 1 NO/1 NC |
| Contact Current | 15A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 15A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2P |
| Merlin Gerin Auxiliary Contact, 2 Contact, NO/NC, DIN Rail MountBrand | Merlin Gerin |
Key Features
- Equipped with 1 normally open and 1 normally closed auxiliary contact for versatile control.
- Operates with a coil voltage of 24 V DC and supports contact voltages up to 240 V AC/DC.
- Handles an operational contact current of 15 A with a power rating of 30 W.
- Designed for DIN rail mounting with screw terminal type for secure connections.
- Compact dimensions of 81 mm length, 9 mm width, and 68 mm depth ensure easy installation.
- Functionally optimized for motor control with applicable temperature range from -5°C to 50°C.
- Manufactured in France with compliance to international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric A9C15914 iACT Contactor is a high-quality electrical component optimized for motor control applications with a 24V coil voltage and 2-pole configuration. It provides reliable switching with 1 normally open and 1 normally closed auxiliary contact, supporting a contact current of 15 A. This contactor is suitable for both AC and DC circuits, handling contact voltages of 24 V DC, 130 V DC, 24 V AC, and 240 V AC, making it versatile for various industrial and commercial automation use cases.
This device features a 30 W power rating coil and is designed for easy DIN rail mounting with screw terminals, ensuring robust and secure electrical connections. Its compact size (81 mm length, 9 mm width, 68 mm depth) allows seamless integration into electrical panels with space constraints.
The contactor is engineered to operate efficiently within a temperature range of -5°C to 50°C, suitable for most industrial environments. Compliance with key international standards such as CCC, CSA, EAC, IEC, RoHS, and UL demonstrates its quality and safety during operation.
Manufactured in France, the A9C15914 model is part of Schneider Electric's iACT series, known for durable and reliable auxiliary contactors. This product supports industrial automation, motor control, HVAC systems, manufacturing equipment, and various control systems that require reliable switching mechanisms.
Equipped with 1 normally open and 1 normally closed auxiliary contacts for diverse control operations. Coil voltage of 24 V DC with compatible contact voltages across AC and DC ranges. Rated for operational contact current of 15 A and a coil power rating of 30 W.
Mounts securely on DIN rails with screw terminal connections. Complies with multiple international safety and quality standards. Operating temperature range from -5°C to 50°C for versatile applications.
Available for professionals requiring reliable Contactors for automation and control gear, this model is an integral component for electrical panels and industrial automation setups. Explore the range of Schneider Electric products on EnvMart for high-quality automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24 V DC.
It has an operational contact current rating of 15 A.
This model has dimensions of 81 mm in length, 9 mm in width, and 68 mm in depth.
It is designed for DIN rail mounting with screw terminal connections.
The coil power rating is 30 W.
It operates efficiently within a temperature range of -5°C to 50°C.
This model is equipped with 1 normally open and 1 normally closed auxiliary contact.
It supports contact voltages of 24 V DC, 130 V DC, 24 V AC, and 240 V AC.
It complies with standards such as CCC, CSA, EAC, IEC, RoHS, and UL.
This contactor is functionally optimized for motor control applications.
It has a 2-pole configuration.
It is manufactured in France.
