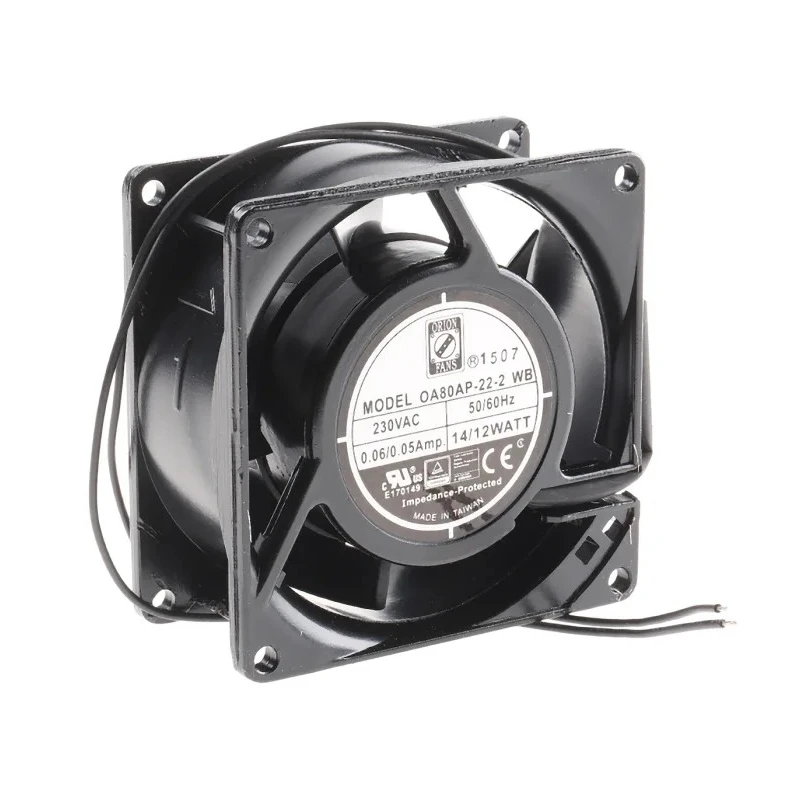

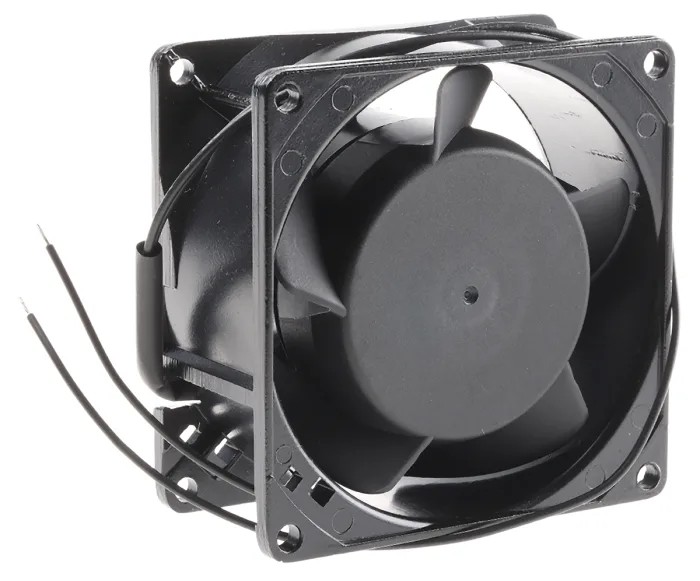

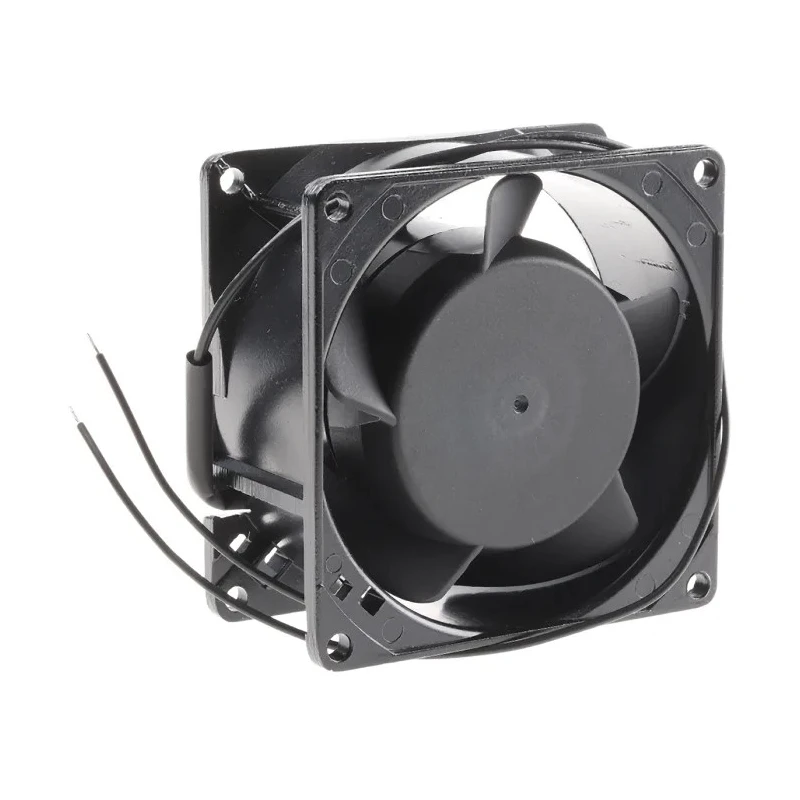

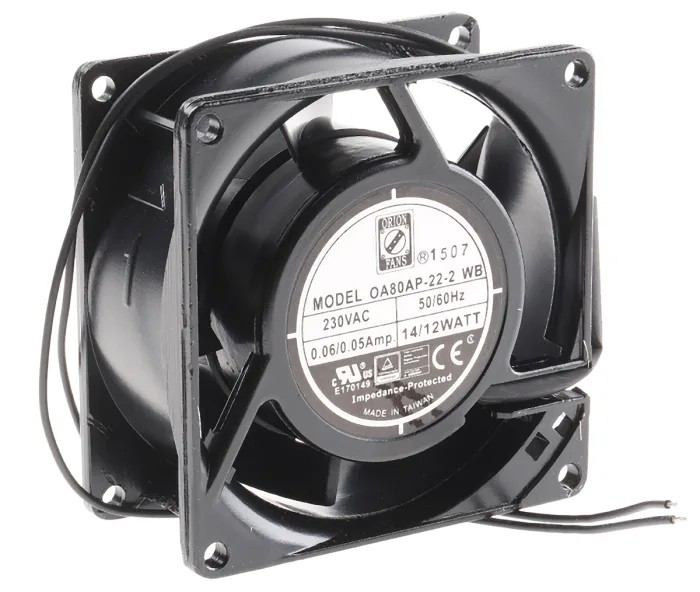

RS PRO Industrial AC Dual Ball Bearing Axial Fan 230V AC, 12 W, 25 CFM, IP44, 80 mm, Model 789-7876

RS PRO 789-7876 axial fan is a high-quality AC dual ball bearing axial fan operating at 230V AC with a power rating of 12 W and maximum current of 50 mA. It delivers an air flow of 25 cfm at 2300 RPM with a noise level of 32 dB, making it suitable for industrial cooling and ventilation purposes.

The fan construction includes a robust die-cast aluminium frame that provides durability and industrial-grade strength. It is equipped with a PBT UL94V-0 thermoplastic impeller offering flame resistance and long-term reliability. The dual ball sealed bearing system supports excellent performance and a life expectancy of approximately 60000 hours under normal conditions, as indicated by the L10 curve figures.

This model features an impedance protected shaded pole motor which prevents overheating by limiting temperature rise and power surges, ensuring stable and safe operation over extended periods.

With its compact dimensions of 80 mm width and height, and 38 mm depth, it fits readily into various equipment forms, including electrical cabinets, server racks, and enclosures. The fan frame is square, and the direction of curve is forward, which contributes to smooth and effective air flow.

The fan holds an IP44 rating, providing protection against solid objects larger than 1 mm and water splashes from any direction, suited for industrial environments. Applications cover server cooling, electrical cabinet ventilation, motors in production lines, and HVAC cooling systems.

The fan's die-cast aluminium frame ensures structural stability and industrial ruggedness. Thermoplastic impeller is UL94V-0 rated for flame resistance and impact durability. Dual ball bearing system enhances lifespan and allows versatile mounting orientations.

Shaded pole motor features impedance protection to maintain motor temperature stability. Compact size and IP44 rating allow use in diverse industrial and commercial settings. Low noise levels make it suitable for noise-sensitive equipment environments.

RS PRO brand guarantees professional quality and reliability, making this axial fan a dependable choice for many industrial cooling needs. Explore more Axial Fans and related HVAC cooling solutions on EnvMart.
