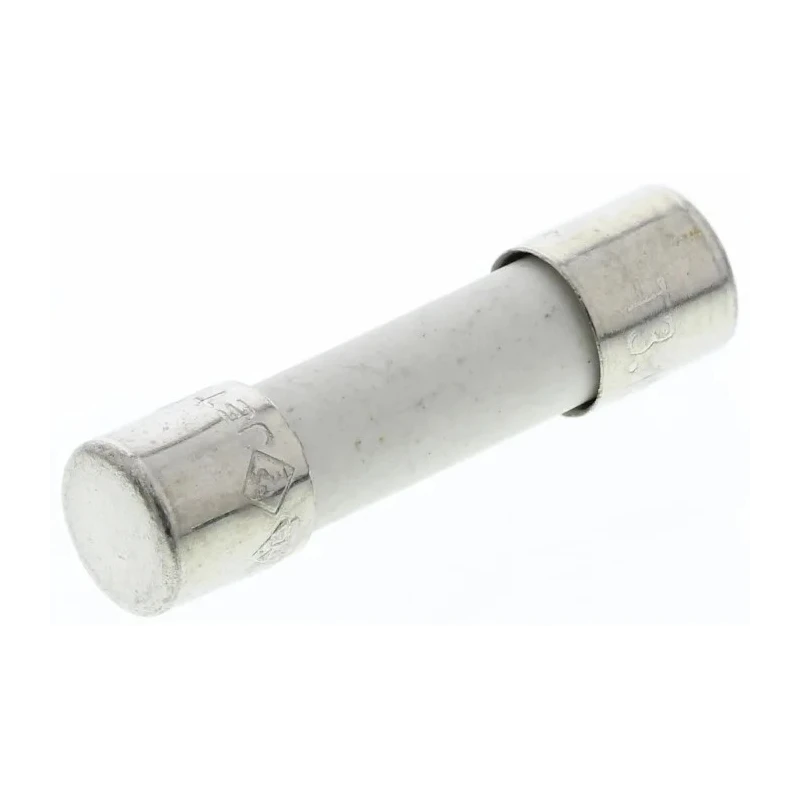

Schurter Ceramic Cartridge Fuse 3.15A Time Delay 300V DC 5 x 20 mm 0001.2509
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V dc |
| Diameter | 5mm |
| Brand | Schurter |
| Body Material | Ceramic |
| Overall Length | 20mm |
| Current Rating | 3.15A |
| Series | SPT 5X20 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL 248-14 |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| RS PRO 3.15A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
| RS PRO 3.15A T Ceramic Cartridge Fuse, 5 x 20 mmRS Stock No. | 610-9793Brand: RS PRO |
Key Features
- This fuse is rated for 300V DC voltage suitable for various electrical applications.
- Its ceramic body provides high breaking capacity and durability.
- The fuse size measures 5 x 20 mm with a diameter of 5mm and overall length of 20mm.
- Operates reliably within a temperature range of -55°C to +125°C.
- Complies with UL 248-14 standard ensuring safety and quality.
- Designed for industrial, electrical, automation, and circuit protection uses.
Product Description
Schurter 0001.2509 Ceramic Cartridge Fuse is a reliable protective component designed for electrical and industrial applications. It features a current rating of 3.15A and is engineered with a time delay characteristic for enhanced protection, especially suitable for power supply adapters and switching mode power supplies (SMPS).
The fuse operates at a voltage of 300V DC and is constructed with a ceramic body providing excellent breaking capacity and thermal stability. Measuring 5 x 20 mm in size, with a 5 mm diameter and 20 mm overall length, it fits standard cartridge fuse holders.
This fuse can withstand operating temperatures from -55°C up to +125°C, ensuring durability in various environments. The Schurter SPT 5x20mm series conforms to the UL 248-14 standard, confirming its compliance with international safety requirements.
Ceramic construction and gold-plated copper alloy terminals promote efficient current flow and mechanical strength. This fuse is ideal for industrial, electrical, automation, power supply protection, and general circuit protection applications.
This fuse has a 3.15A current rating providing primary fuse protection. Time delay fuse characteristic for transient protection. Designed for 300V DC voltage applications. Durable ceramic body with high breaking capacity.
Operates over a broad temperature range from -55°C to +125°C. Compliance with UL 248-14 safety standard.
Schurter’s cartridge fuses are trusted in industrial and electrical automation sectors for efficient circuit protection. This specific model is manufactured in China, ensuring quality control and consistency.
Explore more Schurter products and fusion technology solutions in the Electronics & Electricals category on EnvMart.
Explore more products in our Electrical Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.15A, providing primary fuse protection for various electrical applications.
It is rated for a maximum voltage of 300V DC, making it suitable for high-voltage applications.
The fuse measures 5 x 20 mm, with a diameter of 5 mm and an overall length of 20 mm, fitting standard cartridge fuse holders.
The body of this fuse is constructed from ceramic, which provides high breaking capacity and thermal stability.
It operates reliably within a temperature range of -55°C to +125°C, ensuring functionality in various environments.
Yes, it complies with the UL 248-14 standard, which confirms its adherence to international safety requirements.
This fuse features a time delay characteristic, which provides enhanced protection against transient conditions.
It is designed for industrial, electrical, automation, and circuit protection applications, particularly in power supply adapters and switching mode power supplies (SMPS).
This model belongs to the SPT 5X20 series, which is known for its specific design and application suitability.
The Schurter ceramic cartridge fuse is manufactured in China, ensuring quality control and consistency in production.
It features gold-plated copper alloy terminals, which promote efficient current flow and enhance mechanical strength.
While specific breaking capacity values are not provided, the ceramic construction is designed to offer high breaking capacity for reliable circuit protection.
