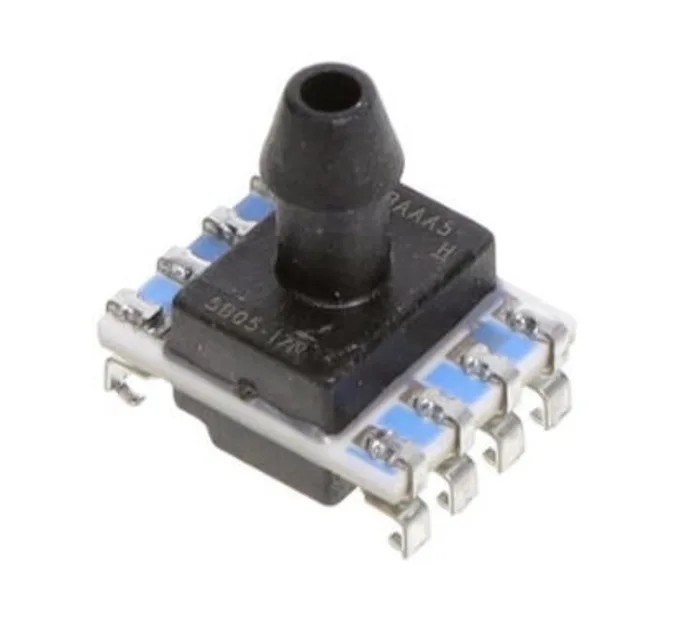

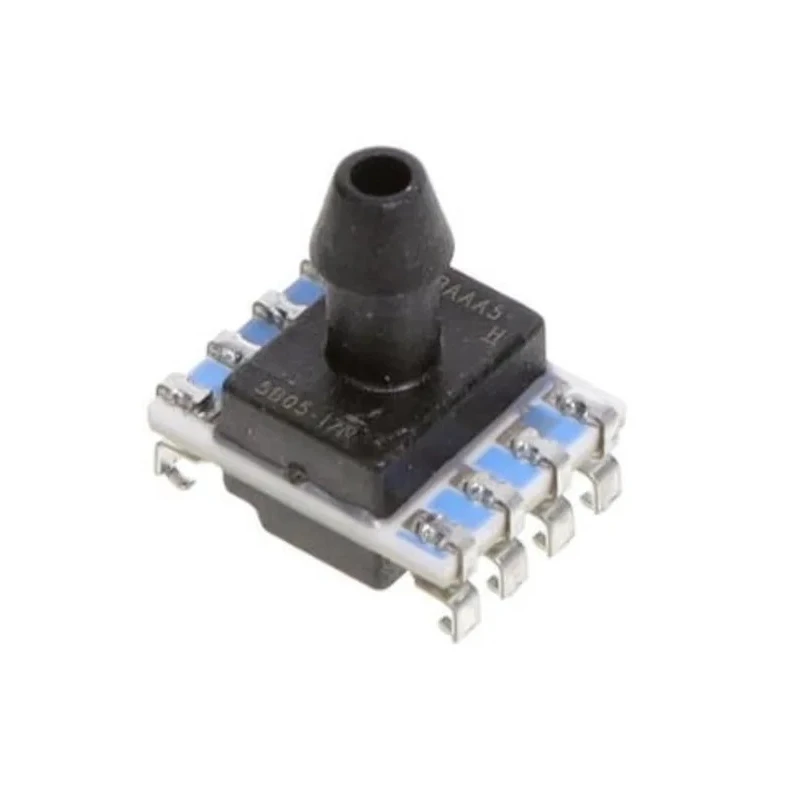

Honeywell Technologies Piezoresistive Pressure Sensor 1 bar 85 °C HSCMANV001BAAA5
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 1 bar |
| Model | HSCMANV001BAAA5 |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | 85°C |
| Pressure Type | Absolute |
| Port Type | Single Axial Barbed |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Minimum Operating Pressure | 0bar |
Key Features
- Offers ±0.25% full-scale accuracy for reliable measurements.
- Features a single axial barbed port for media connection.
- Operates within a temperature range of -20 °C to 85 °C.
- Calibrated and temperature-compensated onboard for offset and sensitivity.
- Designed for non-corrosive, non-ionic gases and selected liquids.
- Includes ratiometric analogue or 14-bit digital output compatible with SPI or I2C.
- Low power consumption under 10 mW enables extended battery runtime.
- Complies with ISO 9001 quality standards.
Product Description
Honeywell HSCMANV001BAAA5 piezoresistive pressure sensor is a high-precision board-mounted device designed for accurate absolute pressure measurement up to 1 bar, with a maximum operating temperature of 85 °C. It features a single axial barbed port that facilitates secure media connection and is optimized for non-corrosive, non-ionic gases plus selected liquids, ensuring versatility in application.
This sensor incorporates on-board calibration and temperature compensation to maintain offset and sensitivity stability across varying environmental conditions. The device supports both ratiometric analogue and 14-bit digital output formats, compatible with SPI and I2C protocols, simplifying integration with microcontroller systems.
With an accuracy of ±0.25% full scale, this sensor is suitable for demanding applications requiring precise pressure readings. It operates efficiently with power consumption under 10 mW, making it ideal for battery-powered equipment and applications where energy efficiency is critical.
Compliant with ISO 9001 standards and robust testing including moisture sensitivity per J-STD-020E, vibration and shock per MIL-STD-202G, the sensor is designed for reliability and longevity, enduring millions of pressure cycles.
Applications include medical ventilators and respiratory monitoring systems, HVAC indoor air quality transmitters, laboratory gas flow instrumentation, chromatography, barometry, flow calibration, pneumatic control, and VAV system pressure monitoring.
±0.25% full-scale accuracy ensures precise measurement performance. Single axial barbed port enables secure and straightforward media connections. Operates within -20 °C to 85 °C ensuring suitability for varied environments.
Low power design extends operational lifetime in battery-powered devices. Supports both analogue and digital output interfaces for flexible integration. Manufactured to ISO 9001 quality standards guaranteeing product consistency.
Withstands rigorous environmental stress including moisture, vibration, and shock. Explore more Pneumatic Pressure Sensors at EnvMart for industrial, laboratory, HVAC, and manufacturing applications designed for reliable performance and integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this model is ±0.25% full scale, ensuring reliable pressure measurements.
It can measure absolute pressure up to a maximum of 1 bar.
This sensor operates within a temperature range of -20 °C to 85 °C.
It supports both ratiometric analogue and 14-bit digital output formats, compatible with SPI and I2C protocols.
It features a single axial barbed port for secure media connection.
This model complies with ISO 9001 quality standards.
It is suitable for applications such as medical ventilators, HVAC transmitters, laboratory gas flow instrumentation, and more.
The minimum operating temperature is -20 °C.
It operates with a low power consumption of under 10 mW, making it suitable for battery-powered applications.
It is calibrated and temperature-compensated onboard for offset and sensitivity stability.
The country of origin for this sensor is China.
