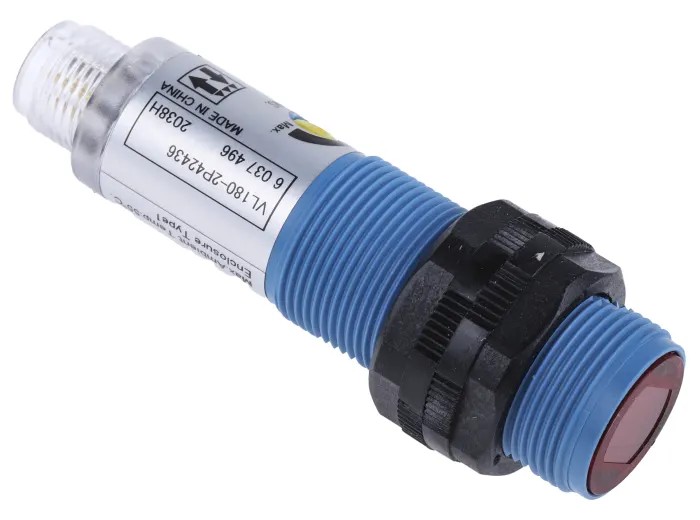

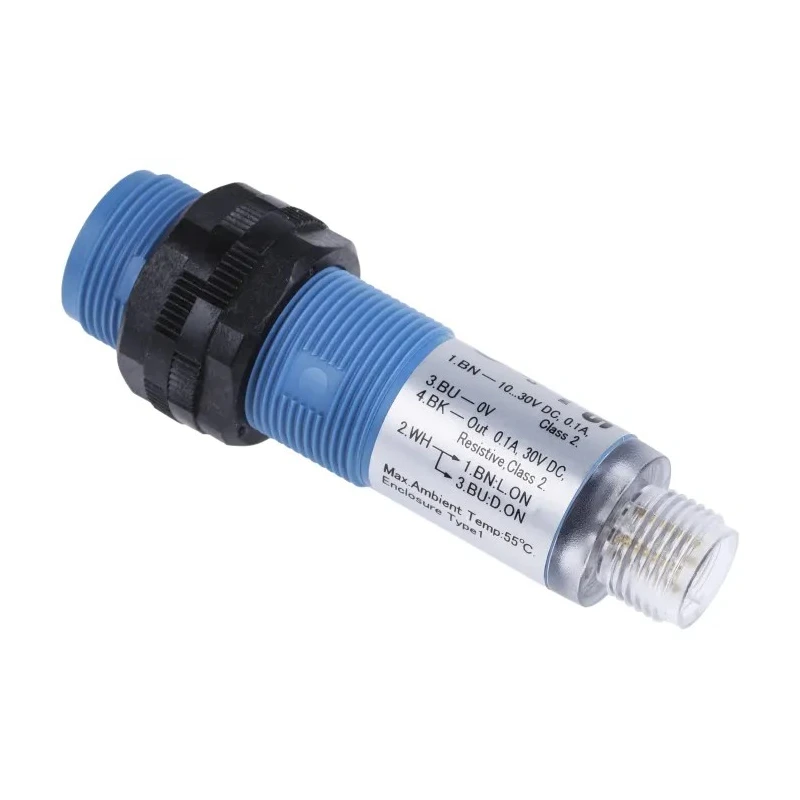

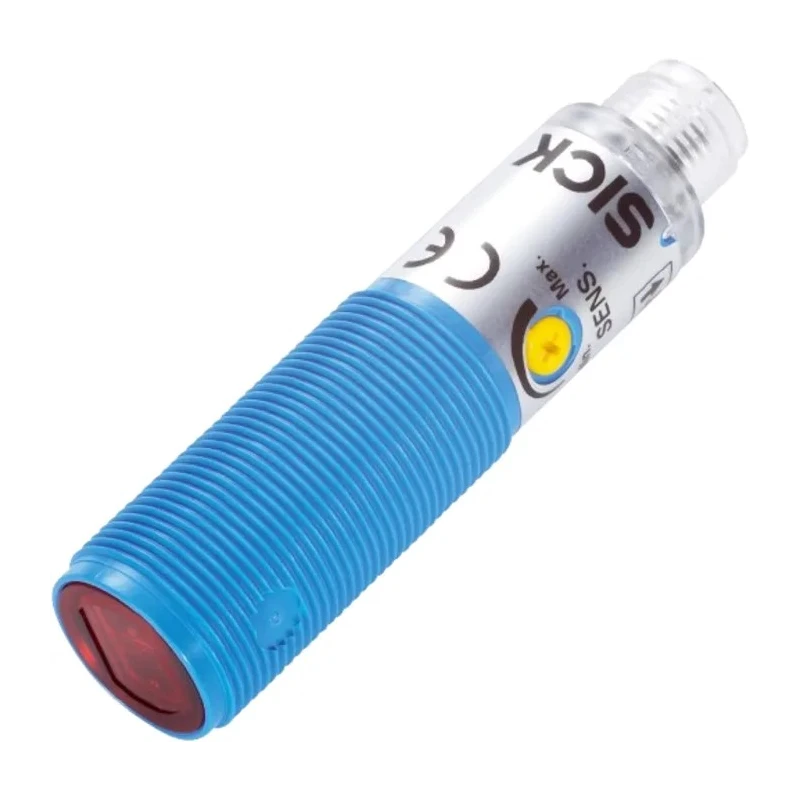

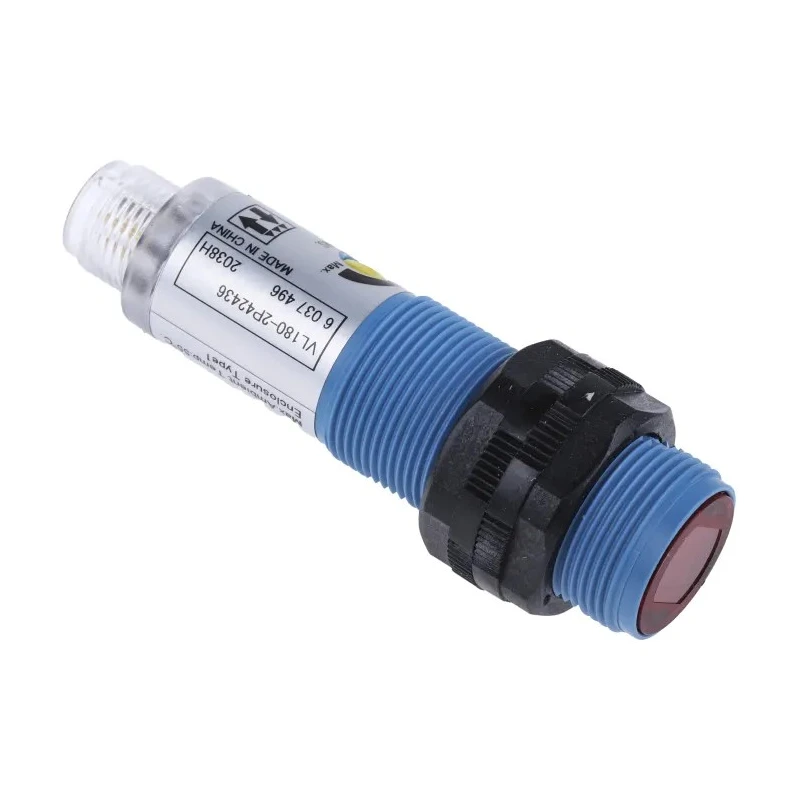

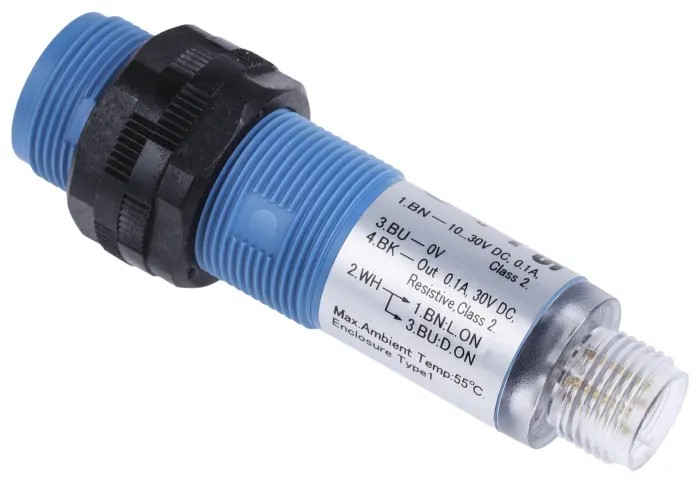

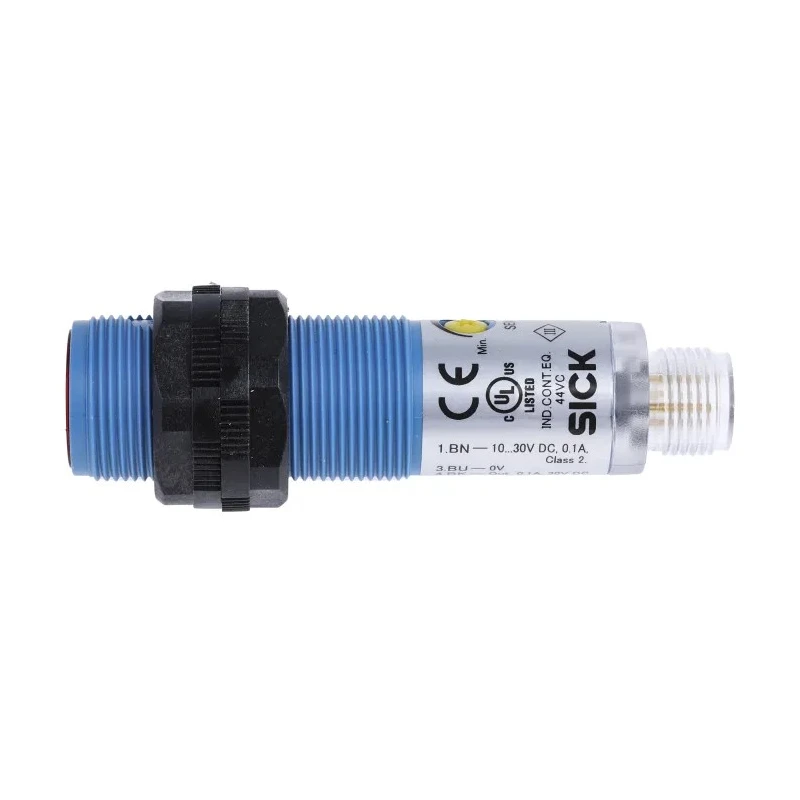

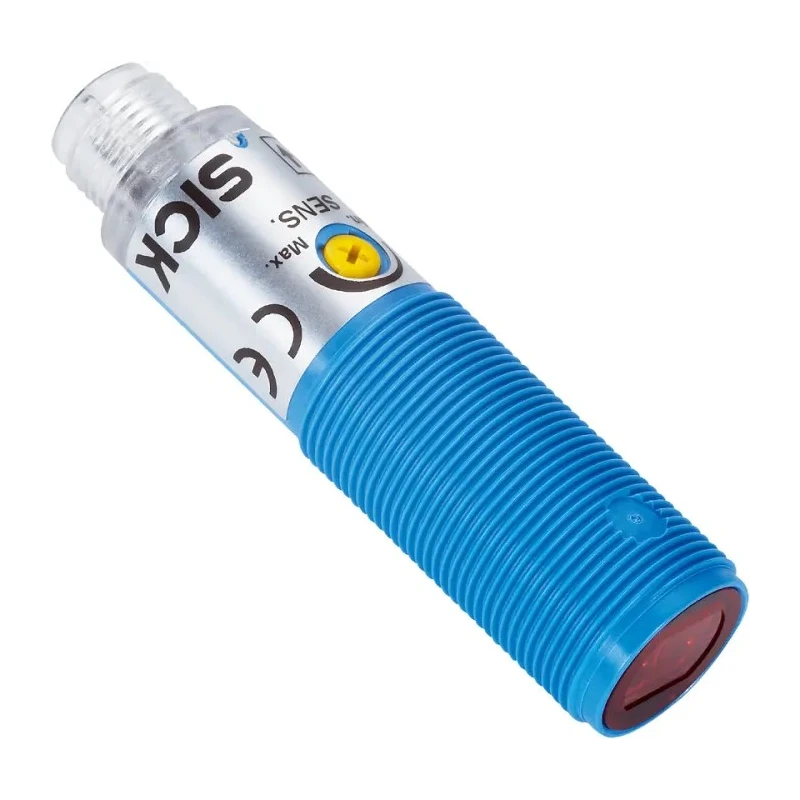

SICK Retroreflective Photoelectric Sensor, Barrel Style, 50 mm to 7 m Detection Range, PNP Output, IP67 VL180-2P42436

SICK VL180-2P42436 Retroreflective Photoelectric Sensor is a high-performance barrel sensor designed for industrial automation applications. It offers a detection range from 50 mm up to 7 meters, utilizing a retroreflective light beam for precise object sensing in harsh operating conditions. This sensor integrates seamlessly with control systems requiring quick optical detection cycles, aided by its outstanding 0.5 ms response time.

The sensor housing is constructed from durable polycarbonate and polybutylene terephthalate materials, providing excellent resistance to chemicals and mechanical impact, ideal for factory floor environments. Its IP67 rating ensures protection against dust and water ingress, making it suitable for wash-down processes and demanding industrial settings.

Electrical specifications allow operation up to 30 V DC and a current consumption of up to 100 mA. The sensor features a PNP output type, facilitating straightforward interfacing with commonly used control logic. A standard 4-pin M12 connector provides secure and standardized electrical connections, and the threaded mounting style allows flexible and reliable installation options.

This sensor is well-suited for applications including conveyor object detection in packaging lines, presence sensing in pick-and-place systems, material handling signal inputs to PLCs, and end-of-travel verification on actuated mechanisms. Quick alignment and stable sensing performance are enhanced by the included reflector and fastening nuts.

The operating temperature range from -25°C to 55°C supports varied environmental conditions encountered in industrial automation. Its LED light source provides visible status feedback for easy operational monitoring.

The sensor features a barrel style housing with threaded mount for secure installation. Robust polycarbonate and polybutylene terephthalate enclosure ensures chemical and impact resistance. 0.5 ms response time supports high-speed detection and rapid cycle control.

The LED light source delivers stable sensing and clear status indication. Rated for operation between -25°C and 55°C suitable for varied environments. IP67 ingress protection allows dust-tight and wash-down installations.

Output wiring uses a 4-pin M12 connector for reliable connectivity. Maximum electrical ratings include 30 V DC voltage and 100 mA current draw. The package includes two fastening nuts and a reflector for setup.

This product is ideal for use in industrial automation, manufacturing, material handling, and packaging equipment requiring reliable and fast object detection with environmental robustness. Explore EnvMart’s extensive sensor range for complementary automation components.
