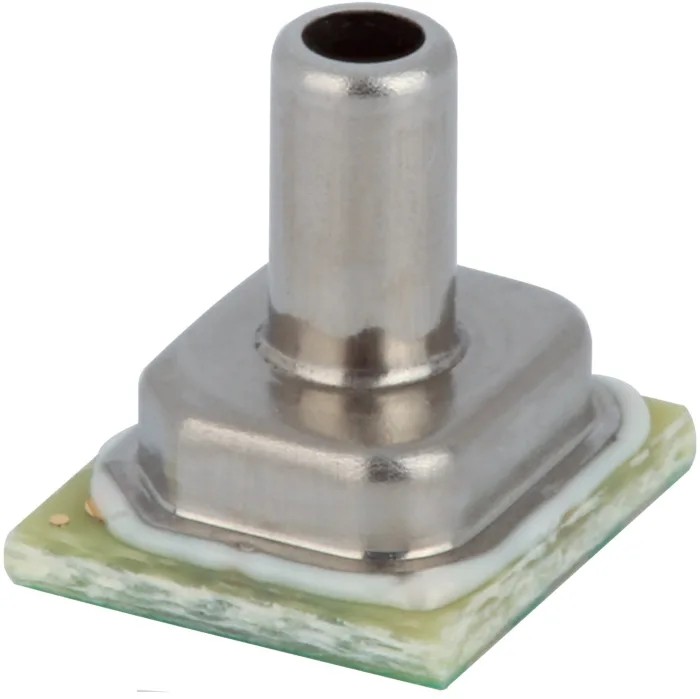

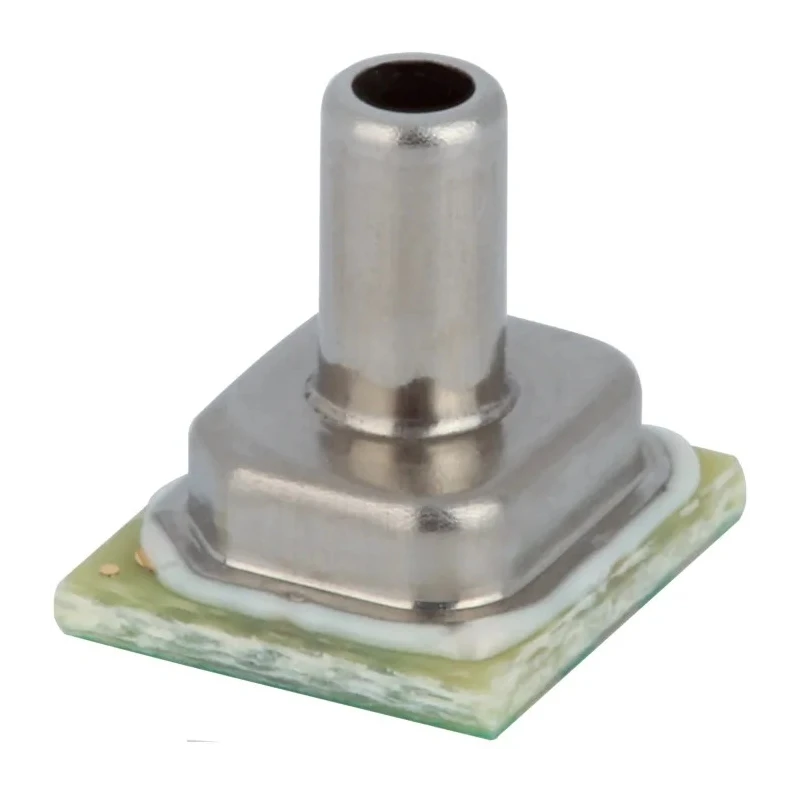

Honeywell Technologies Piezoresistive Pressure Sensor 16 kPa Operating Max ABP2LANT160MG2A3XX
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Material | Polyamide |
| Maximum Operating Pressure | 16 kPa |
| Response time | 7.5ms |
| Model | ABP2LANT160MG2A3XX |
| Series | ABP2 |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ISO 9001, RoHS |
Key Features
- Compact piezoresistive device providing calibrated, temperature-compensated pressure and temperature outputs.
- Offers 24-bit digital output with I2C, SPI, and ratiometric analogue interface options.
- Operates in extreme thermal range from -40°C to 110°C for reliable performance.
- 7.5 ms response time enables rapid measurement updates for dynamic applications.
- Liquid-media gel coating option available to protect electronics from condensation and non-corrosive liquids.
- Suitable for ventilator, patient-monitoring, HVAC, pneumatic control, and portable medical devices.
- Manufactured with polyamide housing and compliant with ISO 9001 and RoHS standards.
Product Description
Honeywell ABP2LANT160MG2A3XX pressure sensor from the ABP2 series is a compact piezoresistive device designed for precise pressure measurement up to 16 kPa maximum operating pressure. It delivers calibrated and temperature-compensated pressure and temperature outputs ideal for board-mount integration in pneumatic systems.
This sensor supports multiple output interfaces including a high-resolution 24-bit digital output via I2C or SPI protocols, as well as a ratiometric analogue output for easy connection in various applications. Its fast 7.5 ms response time enables rapid measurement in dynamic environments.
The device operates reliably over an extended temperature range from -40°C to 110°C, making it suitable for demanding industrial and medical environments. A liquid-media gel coating option provides protection against condensation and non-corrosive fluids, enhancing durability in wet conditions.
Constructed with a robust polyamide housing, the sensor complies with ISO 9001 quality management and RoHS environmental standards, ensuring quality and safety in industrial deployments.
Common use cases include ventilator and patient monitoring systems, HVAC transmitters, pneumatic control mechanisms, portable medical devices such as oxygen concentrators, consumer appliance level sensing, as well as CNG transportation and air brake pressure monitoring.
Compact, calibrated piezoresistive sensor for pressure and temperature measurement. Digital 24-bit I2C/SPI and analogue ratiometric outputs available. Wide operating temperature range from -40°C to 110°C ensures versatility.
7.5 ms response time for quick pressure sensing. Optional protective gel coating for liquid media protection. Polyamide housing compliant with ISO 9001 and RoHS standards. Explore Honeywell Pressure Sensors in EnvMart for reliable industrial and medical pneumatic sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Honeywell ABP2LANT160MG2A3XX pressure sensor is 16 kPa.
This model supports a 24-bit digital output via I2C and SPI protocols, as well as a ratiometric analogue output.
It operates within a temperature range of -40°C to +110°C, making it suitable for various industrial and medical applications.
The response time of this sensor is 7.5 milliseconds, allowing for rapid measurement updates in dynamic environments.
The sensor is constructed with a polyamide housing, which provides durability and protection.
Yes, there is an optional liquid-media gel coating available to protect the electronics from condensation and non-corrosive liquids.
This sensor complies with ISO 9001 quality management and RoHS environmental standards.
It is suitable for applications such as ventilators, patient monitoring systems, HVAC transmitters, pneumatic control mechanisms, and portable medical devices.
The model number of this pressure sensor is ABP2LANT160MG2A3XX.
This pressure sensor belongs to the ABP2 series.
The country of origin for this sensor is China.
This model is classified as a piezoresistive pressure sensor, designed for precise pressure measurement.
