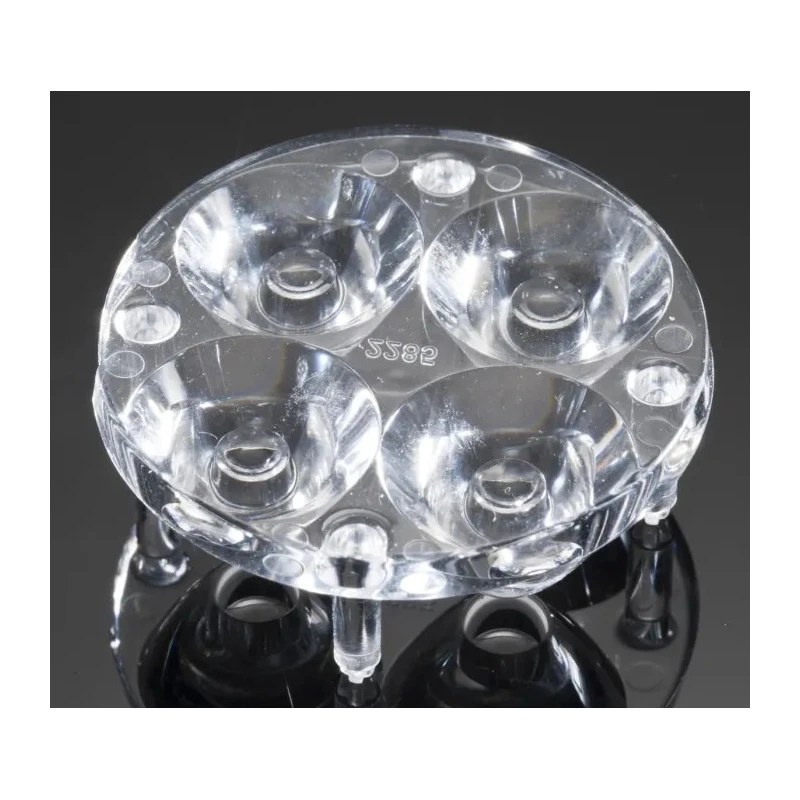

Ledil Angie Series 4-Way LED Lens 15 ° Spot Beam 34 mm Diameter PMMA C12285_ANGIE-S

Ledil C12285_ANGIE-S Angie Series 4-Way LED Lens is an optical component designed for advanced LED lighting systems. Manufactured with precision from high-quality polymethyl methacrylate, this clear, round lens measures 34 mm in diameter and 10.7 mm in height. It provides a tight 15 degree spot beam emission pattern suitable for multi-LED arrays.

This LED lens accommodates four LEDs per lens, directing their combined light output to produce uniform and efficient beam shaping. Compatible LEDs include Lumileds LUXEON T, Cree XP-E, OSRAM OSLON Square EC, Cree XP-G, OSRAM OSLON SSL 80 and 150, and Seoul Z5, making it versatile for various lighting designs.

The lens employs pin fixing for secure attachment onto the LED assembly, ensuring precise optical alignment and durability under operational conditions. Its optical-grade PMMA construction offers excellent UV stability and temperature resistance, maintaining performance over time.

The Angie series lenses are widely applicable in specialty LED lighting components, electronic displays, and optoelectronic devices requiring focused spot beams. Despite the lack of formal standards approvals, its quality design supports professional-grade industrial and commercial LED applications.

The lens shape is round with a diameter of 34 mm and height of 10.7 mm. Emission pattern is a tight 15 degree spot beam ideal for focused lighting. Compatible with a broad range of premium LED chips from leading manufacturers.

Constructed from durable, UV and temperature resistant polymethyl methacrylate. Fixing method utilizes pins for precise and stable mounting.

This component enhances LED system design in fields such as commercial lighting, signage, and electronic displays. For more LED lenses and reflectors visit EnvMart’s dedicated category.
