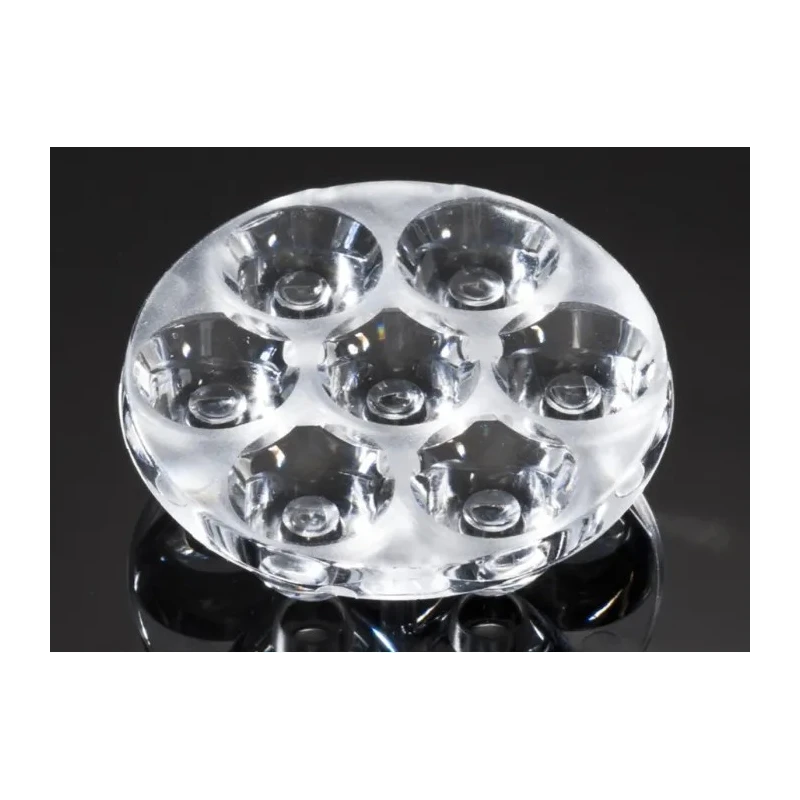

Ledil Anna Series 7-Way LED Lens 18 ° Spot Beam, Clear Polymethyl Methacrylate, Round 40mm Diameter C11716_ANNA-40-7-S
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 40mm |
| Brand | Ledil |
| Height | 10.7mm |
| Model | C11716_ANNA-40-7-S |
| Series | Anna |
| Viewing angle | 18 ° |
| Lens Material | Polymethyl Methacrylate |
| For Use With | Nichia NCSxx19A, OSRAM OSLON SSL 150, Lumileds LUXEON T, OSRAM OSLON SSL 80, Lumileds LUXEON Rebel ES, Lumileds LUXEON Rebel, Cree XP-G, Lumileds LUXEON A, Cree XP-E, Nichia NVSxx19A, Sharp Double Dome |
| Lens Shape | Round |
| Emission Pattern | Spot |
| Fixing Method | Pin |
| Number of LEDs Per Lens | 7 |
Key Features
- The lens is round with a standard diameter of 40 mm and a height of 10.7 mm.
- Constructed from optical-grade polymethyl methacrylate for high UV and temperature resistance.
- Designed to focus light into a spot emission pattern with uniform output.
- Uses pin fixing method for secure positioning and gluing.
- Compatible with LED models such as Nichia NCSxx19A, OSRAM OSLON SSL 150, Lumileds LUXEON T, and several others.
- Optimized for use with 7 LEDs offering precise light control.
- Suitable for applications requiring focused beam lighting in electronic and lighting components.
Product Description
Ledil C11716_ANNA-40-7-S Anna Series 7-Way LED Lens is a high-quality optical component designed for LED lighting systems requiring precise spot beam control with a narrow 18 ° viewing angle.
The lens is round with a diameter of 40 mm and a height of 10.7 mm, optimized for use with seven individual LEDs. This multi-lens array directs LED light efficiently to achieve a uniform spot beam with consistent luminous intensity. It uses a pin fixing method which offers reliable mechanical positioning and mounting with glue, facilitating integration into various LED assemblies.
This product is compatible with a wide array of LED types, including Nichia NCSxx19A, OSRAM OSLON SSL 150, Lumileds LUXEON T, OSRAM OSLON SSL 80, Lumileds LUXEON Rebel ES, Lumileds LUXEON Rebel, Cree XP-G, Lumileds LUXEON A, Cree XP-E, Nichia NVSxx19A, and Sharp Double Dome LEDs, providing flexibility for diverse lighting design requirements.
The lens features a clear emission pattern tailored for spot light focusing. Material choice and optical design ensure minimal light loss and high beam consistency. Ideal for electronics components, LED lighting manufacturing, and illumination applications requiring high-quality light direction.
Designed to conform with industry standards while providing reliable long-term performance. Pin mounting offers effective installation within LED fixtures.
These properties make the Ledil Anna Series lens suitable for industrial, commercial, and architectural LED lighting systems where precise light shaping and beam control are critical.
For more selection, explore EnvMart’s range of LED Lenses and related LED lighting components to find the best fit for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diameter of this lens is 40 mm.
It has a viewing angle of 18 °, designed for focused spot beam lighting.
The lens is constructed from optical-grade polymethyl methacrylate, which offers high UV and temperature resistance.
It uses a pin fixing method for secure positioning and gluing.
This lens is compatible with several LED models, including Nichia NCSxx19A, OSRAM OSLON SSL 150, and Lumileds LUXEON T, among others.
The height of this lens is 10.7 mm.
This lens is optimized for use with seven individual LEDs.
It produces a spot emission pattern, focusing light into a narrow beam.
It is suitable for industrial, commercial, and architectural LED lighting systems requiring precise light shaping and beam control.
Yes, it is designed to conform with industry standards while providing reliable long-term performance.
The model number of this lens is C11716_ANNA-40-7-S.
The country of origin for this lens is India.
