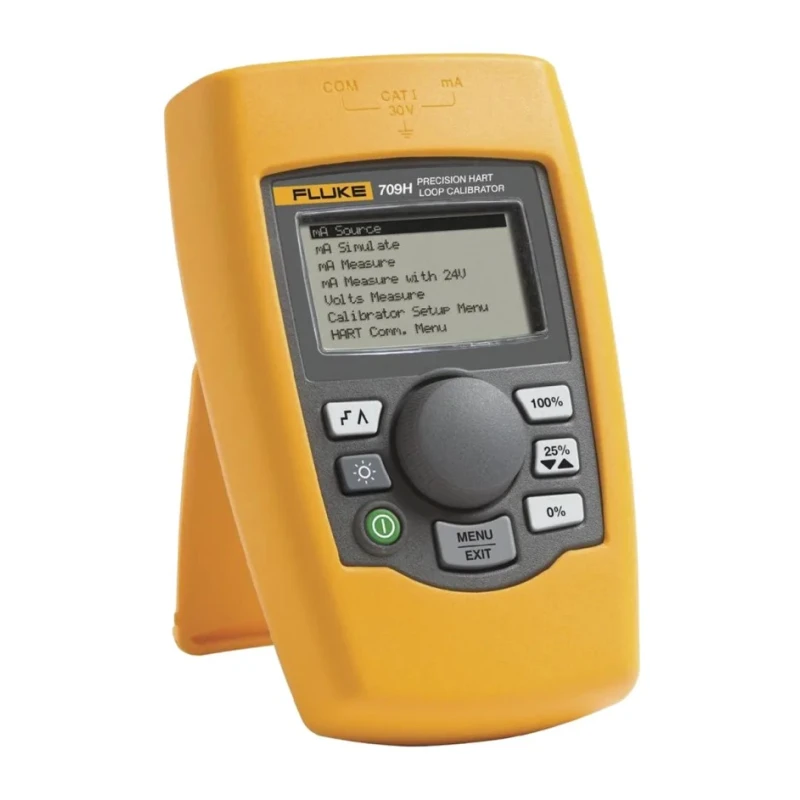

Fluke Loop Calibrator with ±0.01% Accuracy, 1 μA Resolution, Lithium-ion Battery, 30min Battery Life, 709H FLUKE-709H/APAC
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 1 μA |
| Accuracy | ±0.01 % |
| Brand | Fluke |
| Battery Life | 30min |
| Battery type | Lithium-ion |
| Height | 150mm |
| Length | 54mm |
| Model | FLUKE-709H/APAC |
| Gross Weight | 300g |
| Width | 90mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | EN 61326 |
Key Features
- Accuracy of 0.01% reading ensures precise calibration and verification.
- Resolution of 1 μA supports fine adjustment tasks.
- Built-in selectable 250 Ω resistor allows HART signal coupling.
- Operates from Lithium-ion battery with 30 minutes battery life.
- Designed for operating temperatures ranging from -10°C to 55°C.
- Compact size and graphic backlit display enable use in confined or poorly lit environments.
- Logging capacity of up to 9,800 records aids systematic fault analysis.
- 24V DC loop power at 20 mA permits active loop testing.
Product Description
It delivers ±0.01% accuracy and a resolution of 1 μA, enabling precise calibration and verification tasks on process plants and industrial equipment.
The device operates from a rechargeable Lithium-ion battery providing approximately 30 minutes of battery life, with optional support for alkaline cells for extended use. Its compact form factor, measuring 54mm length, 90mm width, and 150mm height, combined with a graphic backlit display and a simple rotary Quick-Set control, allows effective setup and operation in confined or poorly lit industrial environments.
The built-in selectable 250 Ohm resistor supports HART signal coupling, and the device provides 24V DC loop power at 20 mA for active loop testing. With an environmental operating range from -10°C to +55°C, the calibrator is suited for diverse industrial conditions.
The loop calibrator features a logging capacity of up to 9,800 records or 99 separate sessions, supporting troubleshooting and fault analysis with adjustable capture intervals from 1 second to 60 seconds. It includes over-voltage protection up to 240 VAC and overload current protection near 28 mA DC, and conforms to the EN 61326 EMC standard.
Weighing only 0.3 kg and equipped with a rugged holster and compact footprint, it is highly portable and favored for field commissioning, diagnostic tasks, and routine maintenance in industrial, manufacturing, HVAC, and process plant settings.
Accuracy of 0.01% reading ensures precise calibration and verification. Resolution of 1 μA supports fine adjustment tasks. Selectable 250 Ω resistor for HART signal coupling. 24V DC loop power at 20 mA enables active loop testing.
Logging capacity of 9,800 records for fault analysis. Operating temperature range: -10°C to +55°C. Complies with EN 61326 EMC standards with over-voltage protection. Compact and lightweight at 0.3 kg with rugged holster.
Rechargeable Lithium-ion battery with 30-minute life. Ideal for commissioning, troubleshooting, and maintenance. Explore more reliable industrial test and measurement instruments available on EnvMart to meet your precise calibration needs.
Explore more products in our Loop Calibrators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an accuracy of ±0.01%, ensuring precise calibration and verification tasks.
The resolution is 1 μA, which supports fine adjustment tasks during calibration.
The device operates from a rechargeable Lithium-ion battery with a battery life of approximately 30 minutes.
It can operate in temperatures ranging from -10°C to +55°C, making it suitable for diverse industrial conditions.
Yes, it includes a built-in selectable 250 Ω resistor that allows for HART signal coupling.
It has a logging capacity of up to 9,800 records, which aids in systematic fault analysis.
The calibrator measures 54mm in length, 90mm in width, and 150mm in height.
It provides 24V DC loop power at 20 mA for active loop testing.
It conforms to the EN 61326 EMC standard, ensuring it meets certain electromagnetic compatibility requirements.
The unit weighs 0.3 kg, making it lightweight and portable for field use.
It is designed for use in confined or poorly lit environments, suitable for industrial, manufacturing, HVAC, and process plant settings.
It uses a rechargeable Lithium-ion battery, with optional support for alkaline cells for extended use.
