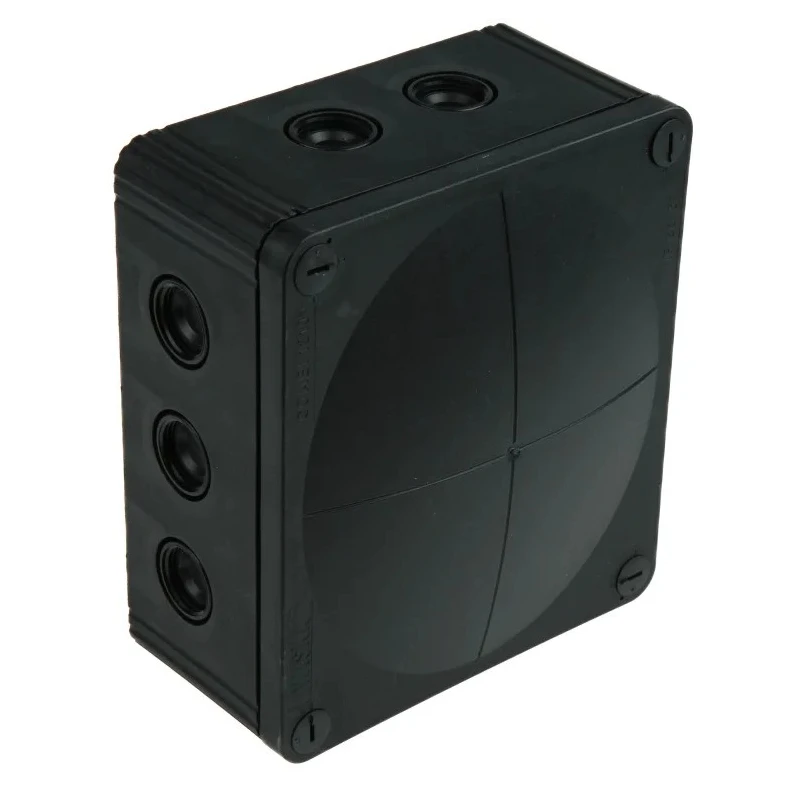

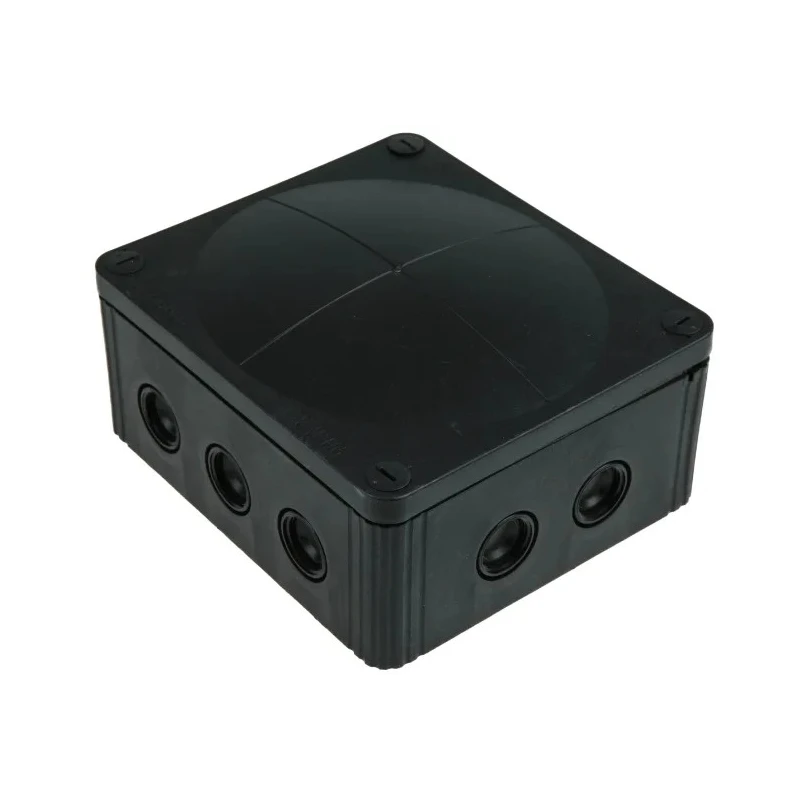

WISKA COMBI Series Black Polypropylene Junction Box, IP66, IP67, 4 Terminals, 160 mm x 140 mm x 81 mm 1210/5/B

WISKA 1210/5/B Black Polypropylene Junction Box is a professional-grade electrical enclosure designed for high water and dust ingress protection, with IP66 and IP67 ratings. It measures 160 mm in length, 140 mm in width, and 81 mm in height, making it compact yet spacious with a patented bellied lid providing 10% more internal room compared to standard shapes. Manufactured in Germany, it features flame-retardant and halogen-free polypropylene material resistant to environmental hazards including UV rays, impact, flame, and various chemicals such as vegetable and animal fats, mineral oils, diesel, alcohol, and weak acids.

This junction box is equipped with 4 terminals and cable entry options comprising five M25 knockouts with integrated threads, allowing direct mounting of cable glands without locknuts for ease of installation. The base includes four M20 entries with self-sealing membranes enabling wall assembly while maintaining the enclosure’s IP rating. Lid screws are quick release, made of durable plastic to avoid rust and ensure secure fastening. Mounting is done via holes in the corners separated from the box’s inside to preserve weatherproof qualities.

The COMBI series junction boxes comply with RoHS standards and glow wire test (750°C) according to EN 60695-2-11, confirming their suitability for industrial and building construction wiring applications. Typical uses include connecting additional sockets, adding lighting points, extending circuits, and electrical circuit repairs, both indoor and outdoor, due to their robust protective properties.

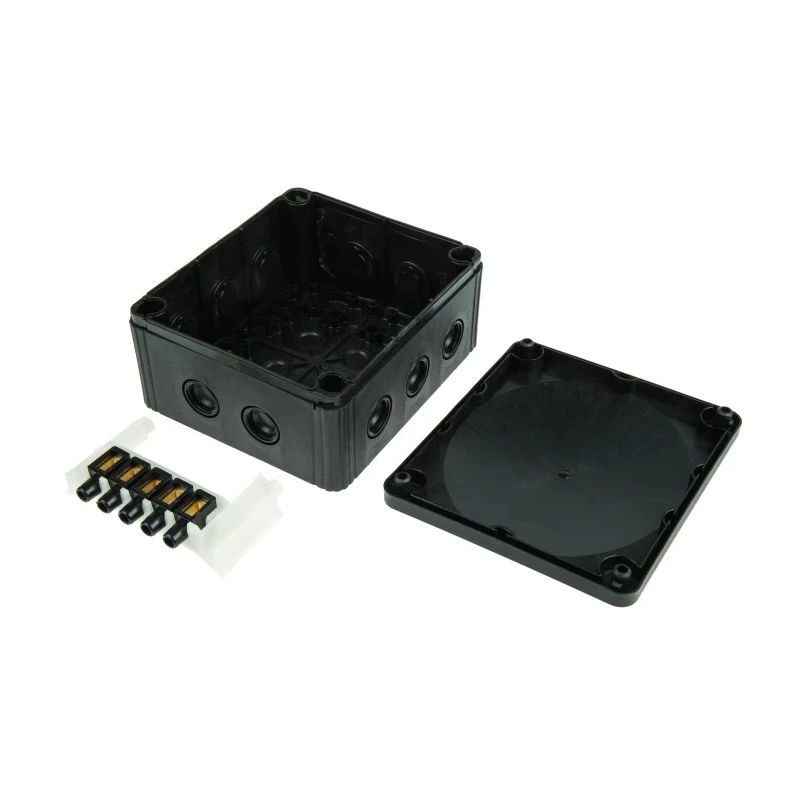

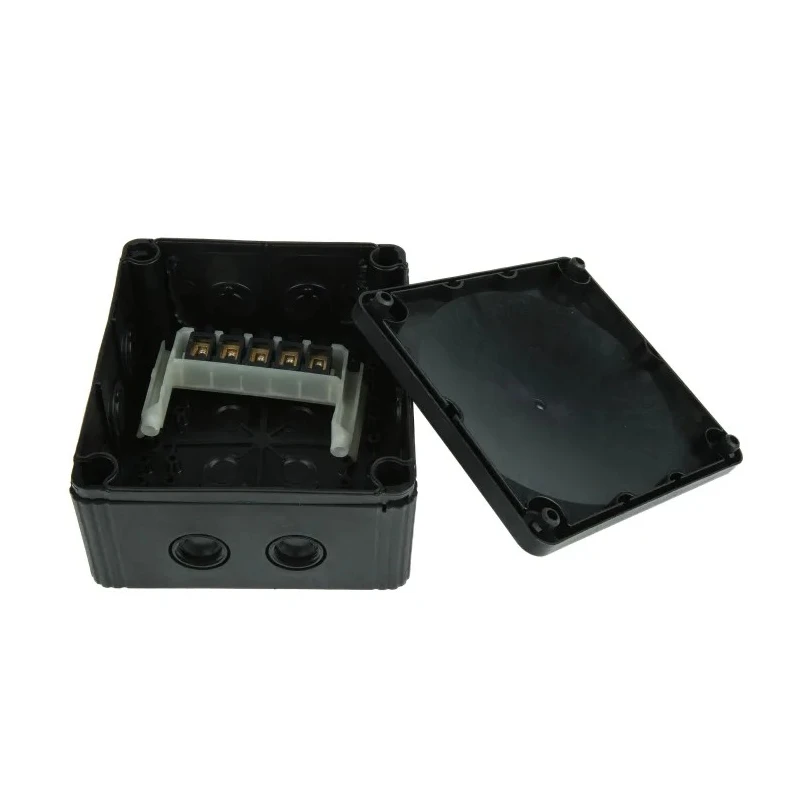

Package contents include the junction box itself, 4 captive quick-release lid screws, and a 5-pole terminal. Optional accessories such as DIN rail kits and earthing kits are available for specialized installation requirements.

Constructed from flame-retardant and halogen-free polypropylene material. IP66 and IP67 rated for excellent resistance to water ingress and dust. 4 terminals with 5 cable entries supporting M25 glands. Quick release lid screws ensure secure and rust-free fastening.

Bellied lid design offers 10% additional internal space. Resistant to UV, impact, flame, and various chemical exposures. Mounting holes maintain enclosure’s IP rating when installed. RoHS compliant and passes glow wire test at 750°C.

Ideal for industrial, construction, and HVAC electrical wiring protection. Germany made quality with reliable durability and performance. Explore more professional-grade electrical enclosures and Junction Boxes within EnvMart to find products that perfectly suit your industrial or commercial projects.
