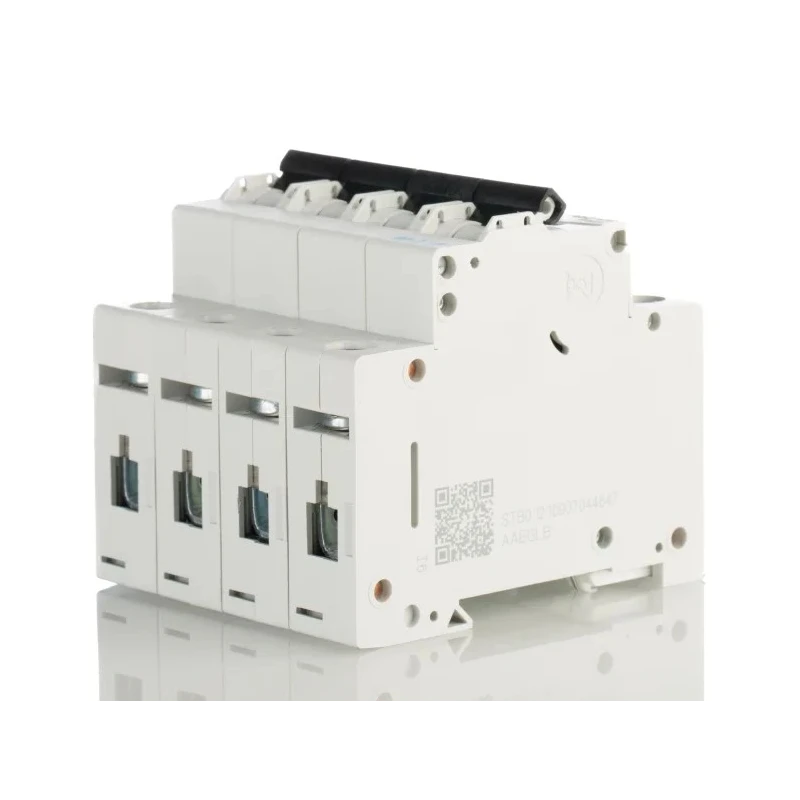

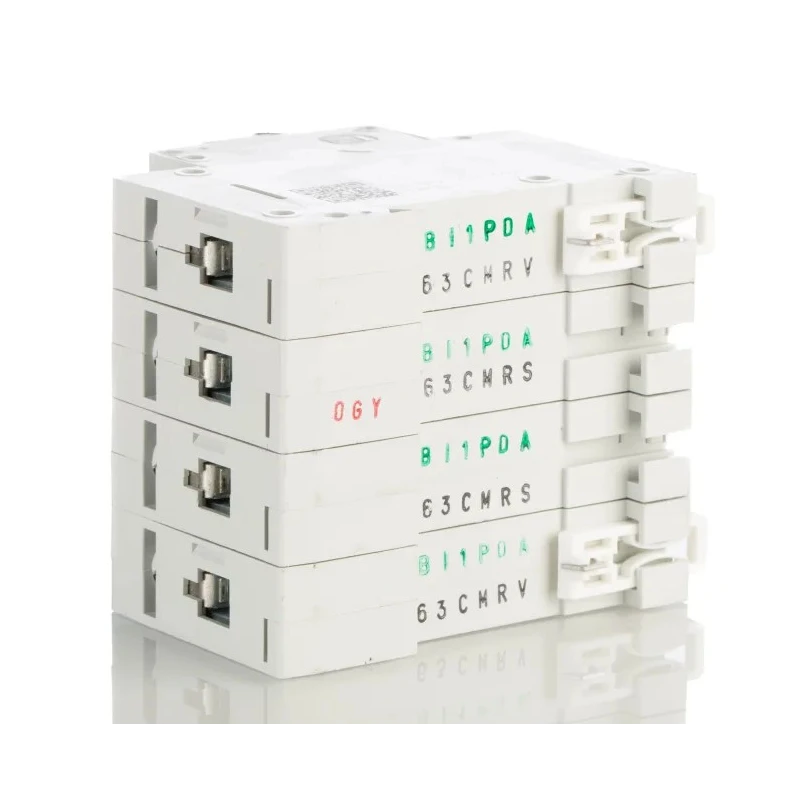

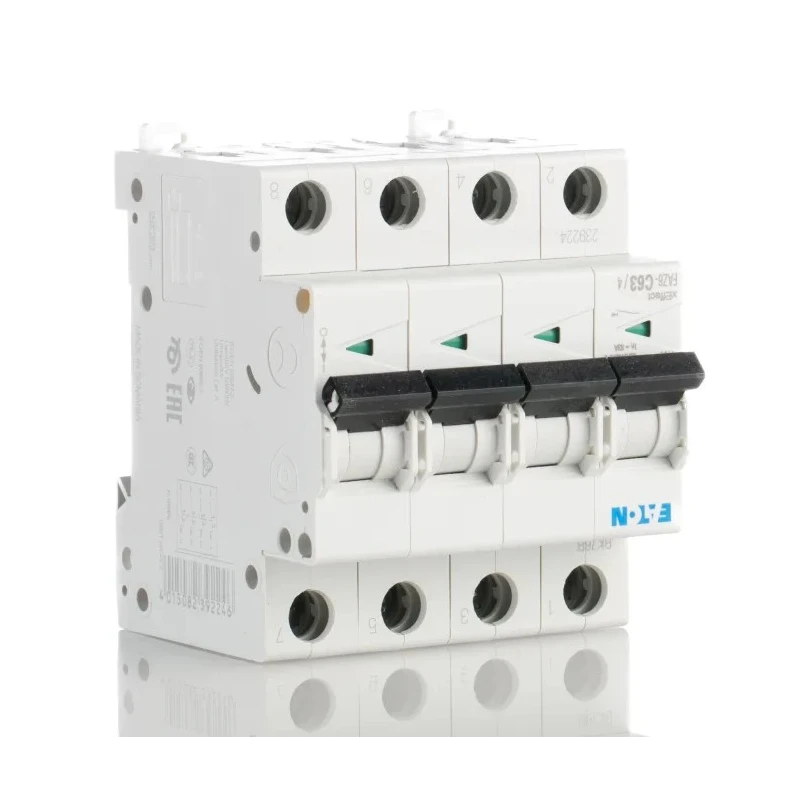

Eaton xEffect Miniature Circuit Breaker 4-Pole 63A Type C 400V AC 6 kA Breaking Capacity 239224 FAZ6-C63/4
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 239224 FAZ6-C63/4 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 63A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed for installation on a DIN rail to save space on panels.
- Features a finger-proof design to prevent electric shocks.
- Tripping Type C characteristic suitable for general applications.
- Compact dimensions of 80 mm length, 17.5 mm width, and 62 mm depth allow use in limited spaces.
- Toggle switch provides clear visible status indication for operational safety.
- Thermal magnetic tripping mechanism protects circuits effectively from short circuits and overloads.
- Instantaneous break time ensures rapid disconnection under fault conditions.
- Complies with IEC/EN 60947-2 standards for circuit breakers.
Product Description
Eaton 239224 FAZ6-C63/4 Miniature Circuit Breaker 4-Pole 63A Type C rated at 400V AC and offering a 6 kA breaking capacity is designed to safeguard electrical networks in industrial, commercial, and residential applications.
This xEffect series MCB protects circuits by automatically disconnecting power during fault conditions, minimizing risk of equipment damage and downtime. The device incorporates a thermal-magnetic tripping mechanism that provides both overload and short-circuit protection.
Compact and space-saving, this MCB measures 80 mm in length, 17.5 mm in width, and 62 mm in depth, which enables easy installation in distribution boards and control panels using a standard DIN rail mount.
The finger-proof design significantly reduces the risk of electric shock during handling or operation. The clear toggle switch indicator improves safety by showing the switch position and operation status at a glance.
Internationally recognized IEC/EN 60947-2 certification guarantees that the product meets stringent safety and performance criteria. This breaker is ideally suited for use with transformers, motor control circuits, factory automation systems, and other industrial electrical installations.
Designed for installation on a DIN rail to save space on panels. Features a finger-proof design to prevent electric shocks. Tripping Type C characteristic suitable for general applications. Compact dimensions of 80 mm length, 17.5 mm width, and 62 mm depth allow use in limited spaces.
Toggle switch provides clear visible status indication for operational safety. Thermal magnetic tripping mechanism protects circuits effectively from short circuits and overloads. Instantaneous break time ensures rapid disconnection under fault conditions.
Complies with IEC/EN 60947-2 standards for circuit breakers.
This Eaton Miniature Circuit Breaker offers high reliability and safety in electrical distribution systems across various industries including manufacturing, HVAC, commercial buildings, and water treatment facilities. It is part of the trusted Eaton xEffect product range known for quality and durability.
Explore more high-performance circuit protection devices on EnvMart for industrial and electrical engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA, which allows it to effectively disconnect power during fault conditions.
The current rating is 63A, making it suitable for various electrical applications.
It is rated for 400V AC, which is standard for many industrial and commercial applications.
This model features 4 poles, allowing it to protect multiple circuits simultaneously.
It measures 80 mm in length, 17.5 mm in width, and 62 mm in depth, making it compact for installation in limited spaces.
It uses a thermal magnetic tripping mechanism, providing protection against both overloads and short circuits.
It has a Type C tripping characteristic, which is suitable for general applications, including inductive loads.
Yes, it complies with IEC/EN 60947-2 standards, ensuring it meets safety and performance criteria.
The IP rating is IP20, indicating it is suitable for indoor use and protected against solid objects larger than 12.5 mm.
It is designed for DIN rail mounting, which allows for easy installation in distribution boards and control panels.
It features a toggle switch as the reset actuator, providing a clear visual indication of the operational status.
It is suitable for industrial, commercial, and residential applications, including transformer protection and motor control circuits.
