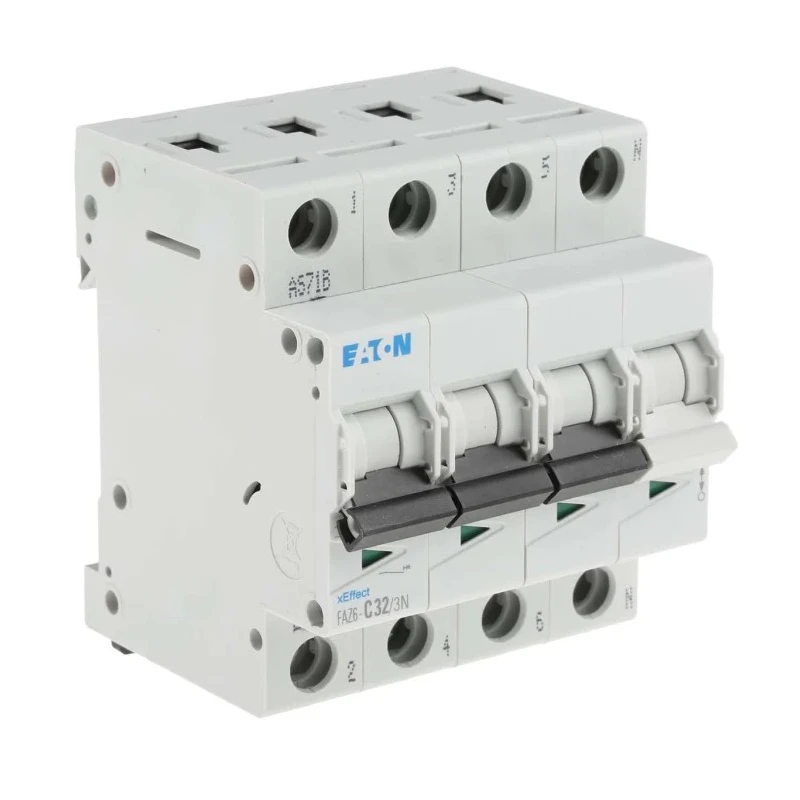

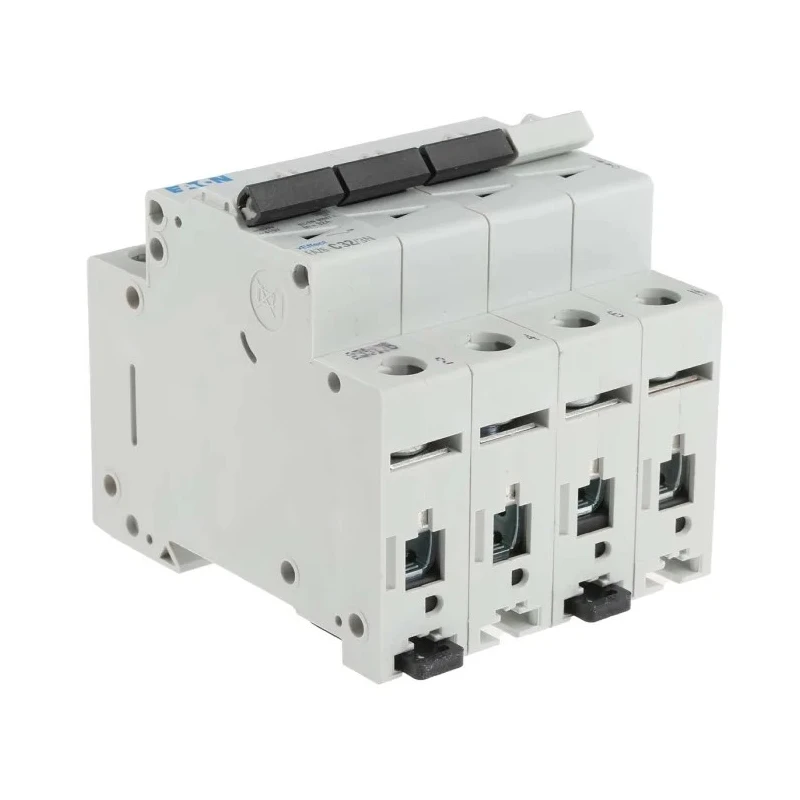

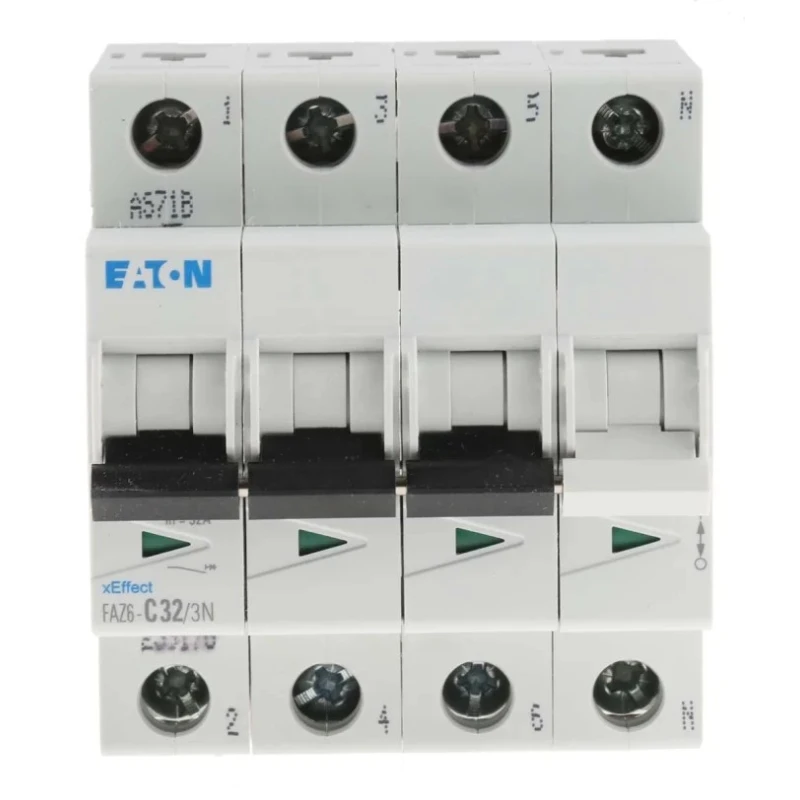

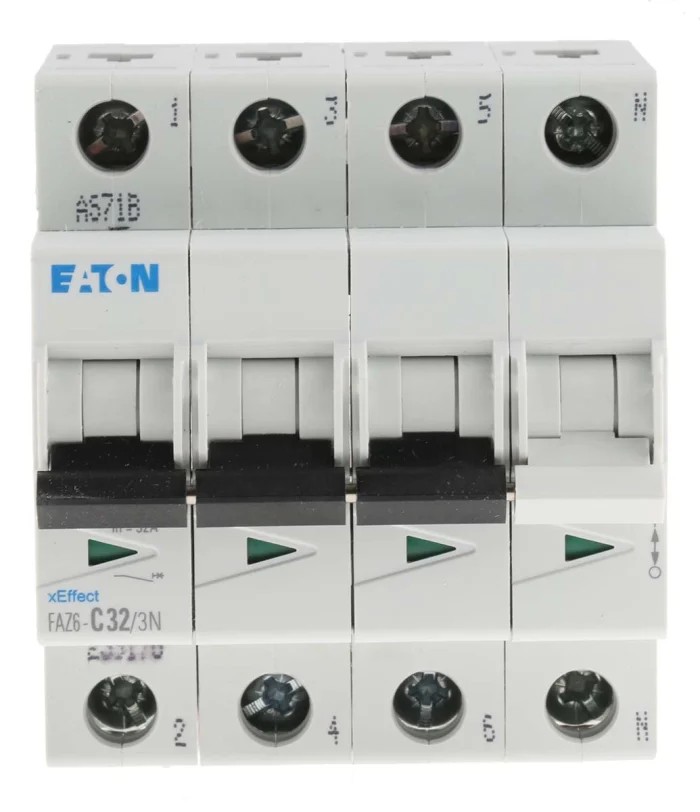

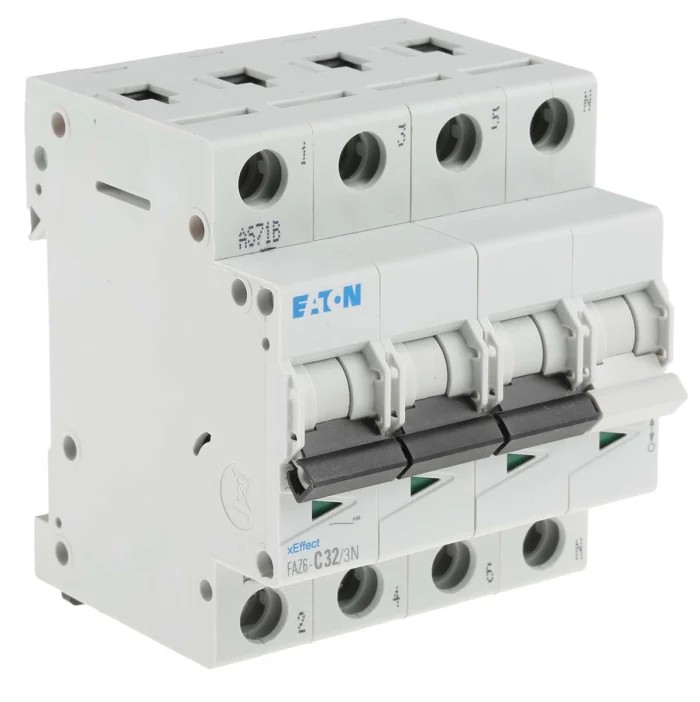

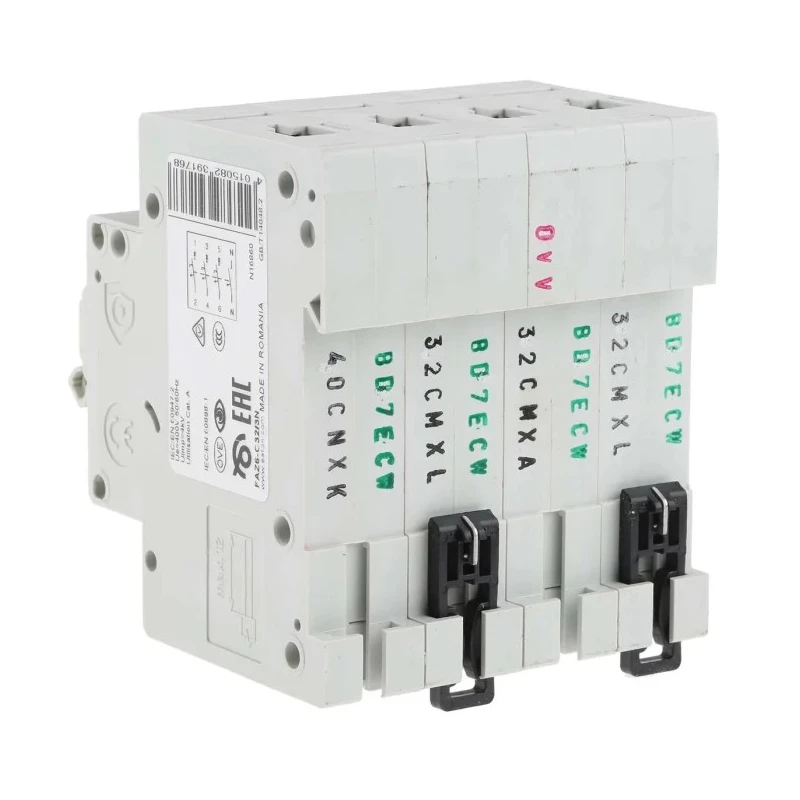

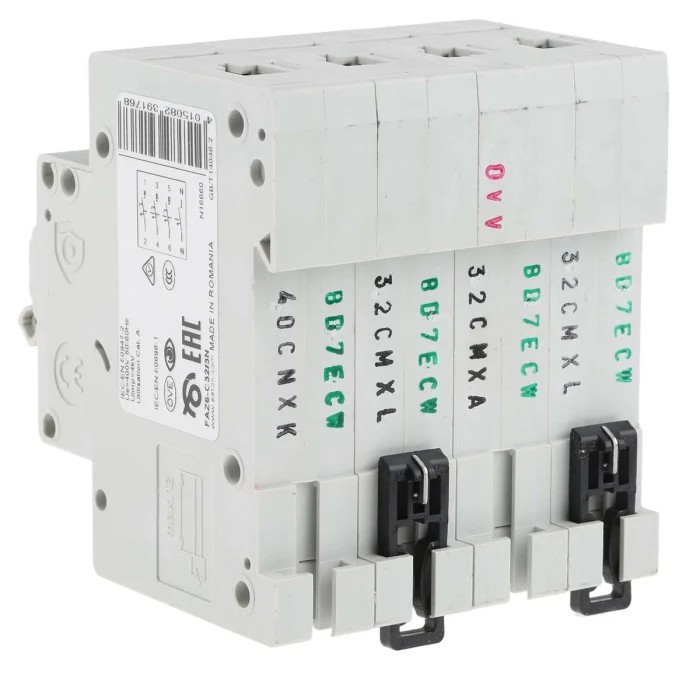

Eaton xEffect Miniature Circuit Breaker 4-Pole 32A Type C 400V AC 6kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 73mm |
| IP Rating | IP20 |
| Width | 72mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Compact dimensions of 84.7 mm length, 72 mm width, and 23 mm depth save panel space.
- Rated for 400V AC operation with a breaking capacity of 6 kA.
- Type C tripping characteristic suitable for general applications with moderate inrush current.
- Equipped with tamper-proof toggle switch and trip-free mechanism for enhanced safety.
- Easy DIN rail mounting with clear indication of contact position.
- Meets EN 60898 and IEC standards ensuring high quality and safety compliance.
- Suitable for control circuits and electrical distribution boards in industrial, commercial, and residential use.
Product Description
The Eaton FAZ6 Miniature Circuit Breaker (MCB), model FAZ6-C32/3N, is a 4-pole device rated for 32A current with Type C tripping characteristics, designed to offer thermal-magnetic protection for electrical circuits up to 400V AC.
This compact MCB measures 84.7 mm in length, 72 mm in width, and 23 mm in depth, making it ideal for installations where panel space is limited. Its thermal-magnetic tripping mechanism protects against short circuits and voltage spikes, reducing potential damage to electrical systems.
The toggle switch is tamper-proof and features a trip-free mechanism to prevent the breaker from being held ON during faults. Clear contact position indication and easy DIN rail mounting simplify installation and maintenance.
With a breaking capacity of 6 kA, the device complies with EN 60898 and IEC standards, ensuring reliable performance and safety in various applications including industrial machinery control, electrical distribution boards, manufacturing plants, and commercial buildings.
The FAZ6 series features modular widths of 17.5 mm per pole, and this 4-pole MCB is suitable for installations requiring multiple poles for simultaneous switching. Compact design saves panel space. Highly reliable thermal-magnetic protection.
Trip-free toggle switch and tamper-proof operation. Complies with international safety standards. DIN rail mounting for quick installation. Suitable for industrial, commercial, and residential applications.
For advanced industrial and electrical applications, Eaton's xEffect FAZ6 series Miniature Circuit Breakers provide dependable protection and operational safety. Browse the Electronics & Electricals category at EnvMart for more Eaton circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 32A current and operates at 400V AC.
It has a breaking capacity of 6 kA.
It uses a thermal-magnetic tripping mechanism, which provides protection against short circuits and voltage spikes.
This model is a 4-pole circuit breaker.
The dimensions are 84.7 mm in length, 72 mm in width, and 23 mm in depth.
It is designed for easy DIN rail mounting, which simplifies installation.
It complies with EN 60898 and IEC standards, ensuring safety and quality.
It is suitable for control circuits and electrical distribution boards in industrial, commercial, and residential applications.
It has a Type C tripping characteristic, which is suitable for general applications with moderate inrush current.
The reset actuator type is a toggle switch, which is tamper-proof and features a trip-free mechanism.
The IP rating for this model is IP20, indicating its level of protection against solid objects and moisture.
The modular width for this 4-pole MCB is 17.5 mm per pole.
