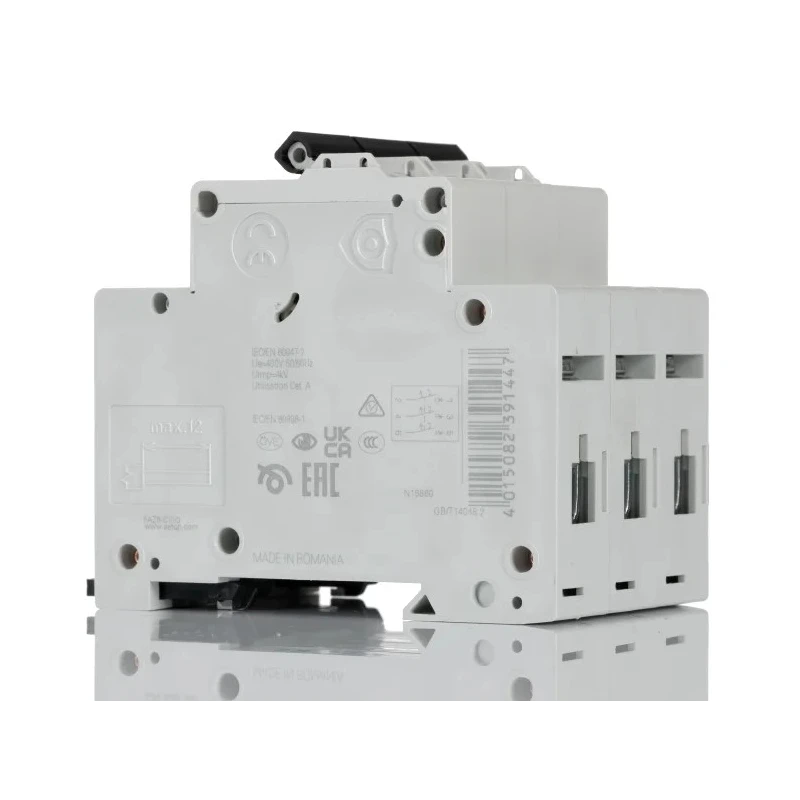

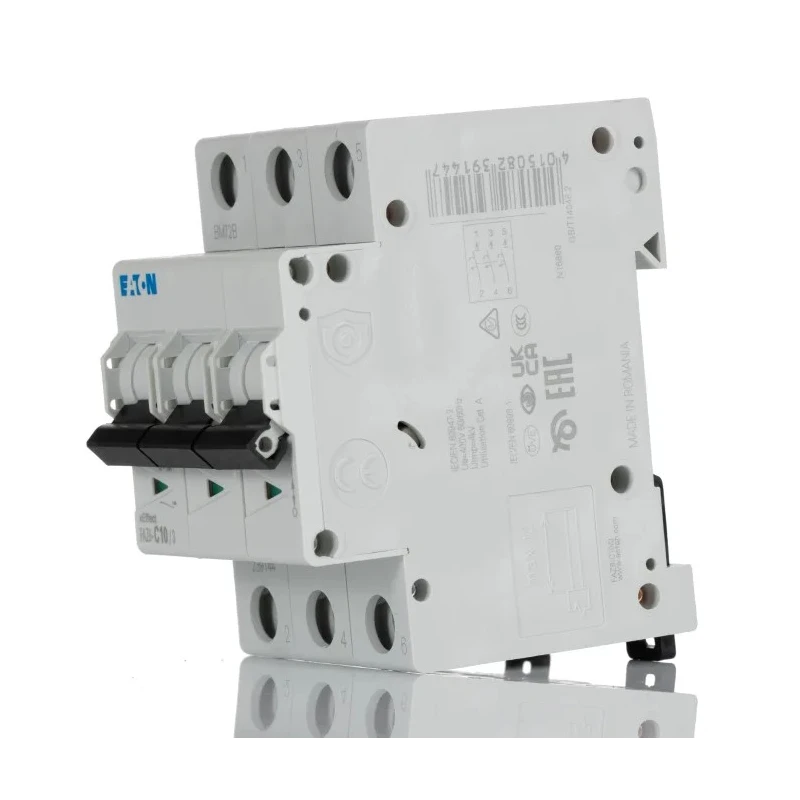

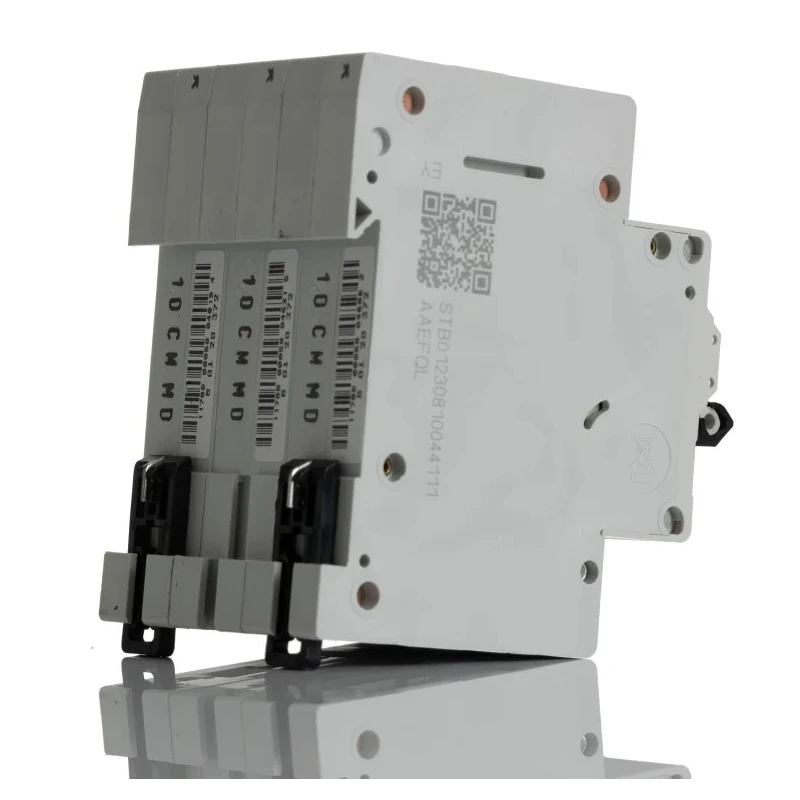

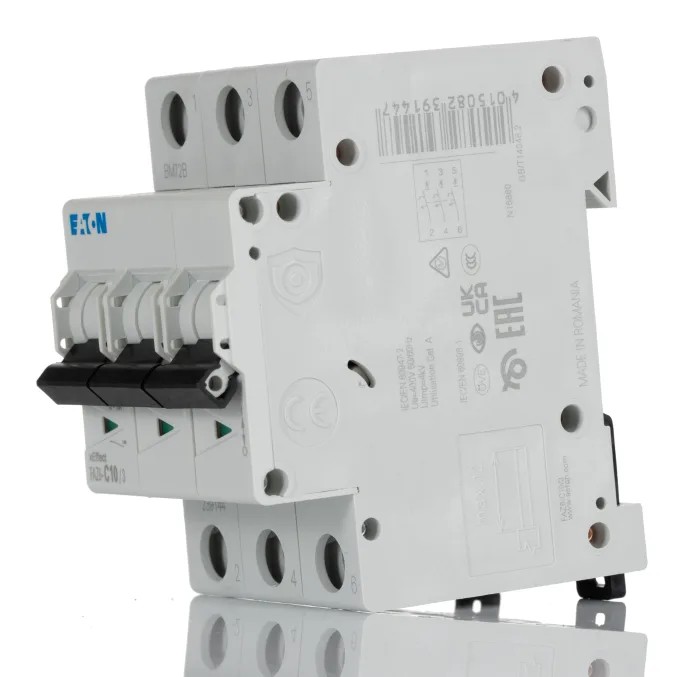

Eaton xEffect Miniature Circuit Breaker 3-Pole 10A Type C 400V AC 6 kA Breaking Capacity 239144 FAZ6-C10/3

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker 3-Pole 10A Type C 400V AC 6 kA Breaking Capacity 239144 FAZ6-C10/3

Name: Eaton xEffect Miniature Circuit Breaker 3-Pole 10A Type C 400V AC 6 kA Breaking Capacity 239144 FAZ6-C10/3
Brand: Eaton
SKU: 230391
Price: 136.14 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	239144 FAZ6-C10/3
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	10A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	3
Standards/Approvals	IEC, EN 60898
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
3 pole type C circuit breaker,10kA 10ABrand	Moeller
Eaton MCB3P, 10A Curve CBrand	Moeller

Key Features

Features a thermal-magnetic tripping mechanism for effective overload and short circuit protection.
Equipped with a toggle switch reset actuator for easy operation.
Compact size with dimensions 73 x 53.1 x 85 mm to save panel space.
IP20-rated for finger-safe operation and protection against objects over 12 mm.
Compatible with standard 35mm DIN rail mounting for quick installation.
Standards compliant with IEC and EN 60898 for reliability and safety.
Designed to operate in ambient temperatures from -25°C to +75°C.
Instantaneous break time and type C characteristic suitable for handling high inrush currents.

Product Description

Eaton 239144 FAZ6-C10/3 miniature circuit breaker is a 3-pole device rated at 10A with type C tripping characteristics, suitable for industrial, commercial, and residential electrical installations requiring reliable overcurrent protection at voltages up to 400V AC.

The breaker utilizes a thermal-magnetic tripping mechanism to provide rapid interruption of fault currents and effective protection against overload conditions. Its type C trip curve allows it to respond instantly to short circuits with currents five to ten times the rated current, making it ideal for controlling circuits with moderate surge currents such as lighting and motor loads.

This product features a user-friendly toggle switch for resetting after trip events and is designed to be easy to mount on a standard 35mm DIN rail, minimizing installation time and effort. The compact dimensions of 73 mm height, 53.1 mm width, and 85 mm depth ensure efficient use of panel space.

With an IP20 rating, the breaker is protected against accidental contact with live parts and ingress of solid objects greater than 12 mm, enhancing operational safety. The rated breaking capacity of 6 kA supports handling of significant fault currents without damage.

Certifications to IEC and EN 60898 standards confirm its compliance with international safety and quality benchmarks. The breaker operates reliably within a broad ambient temperature range from -25°C to +75°C, suitable for demanding environmental conditions.

Thermal-magnetic tripping mechanism ensures precise protection. Type C trip characteristic suitable for moderate surge applications. Easy DIN rail mounting compatible with standard electrical panels. Compact size conserves space within electrical installations.

IP20 rated for touch protection and safety. 6 kA breaking capacity for high fault current interruption. Compliant with IEC and EN 60898 standards for quality assurance. Wide operating temperature range from -25°C to +75°C.

This Eaton miniature circuit breaker is widely used in industrial automation, electrical distribution boards, manufacturing plants, HVAC systems, and commercial lighting installations to safeguard electrical circuits.

Explore more products in Miniature Circuit Breakers at EnvMart to complement your electrical distribution needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton 239144 FAZ6-C10/3 miniature circuit breaker has a current rating of 10A.

This model features a breaking capacity of 6 kA, allowing it to handle significant fault currents effectively.

The dimensions of this miniature circuit breaker are 73 mm in height, 53.1 mm in width, and 85 mm in depth.

It utilizes a thermal-magnetic tripping mechanism for effective overload and short circuit protection.

The Eaton 239144 FAZ6-C10/3 has an IP20 rating, providing protection against accidental contact with live parts and solid objects greater than 12 mm.

This model is designed for easy installation on a standard 35mm DIN rail, which minimizes installation time and effort.

It has Type C tripping characteristics, suitable for handling high inrush currents, making it ideal for circuits with moderate surge currents.

The breaker operates reliably within a temperature range of -25°C to +75°C, suitable for various environmental conditions.

It is compliant with IEC and EN 60898 standards, ensuring reliability and safety in electrical installations.

It features a toggle switch reset actuator, allowing for easy operation after a trip event.

The Eaton 239144 FAZ6-C10/3 is a 3-pole circuit breaker.

This miniature circuit breaker is widely used in industrial automation, electrical distribution boards, manufacturing plants, HVAC systems, and commercial lighting installations.
