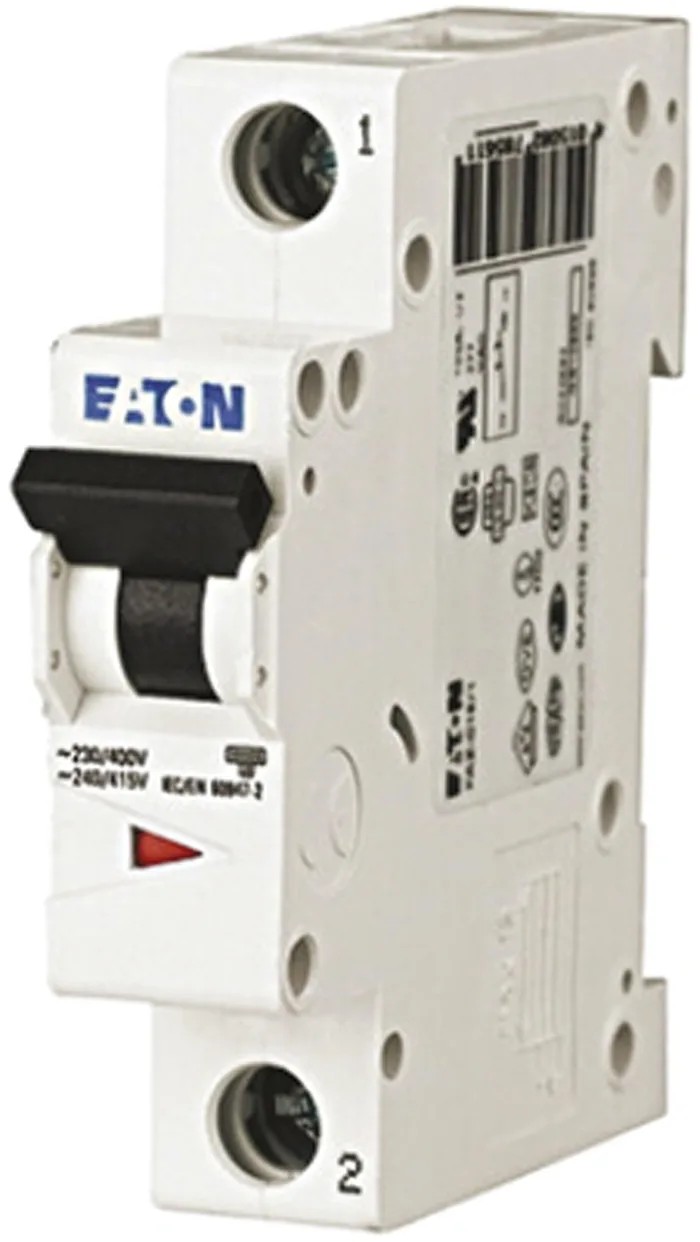

RS PRO Miniature Circuit Breaker, 1-Pole, 1A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | RS PRO |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| Eaton PLS6 MCB Mini Circuit Breaker1P, 1A Curve C, 6 kA Breaking CapacityBrand | Moeller |
| Eaton MCB1P, 1A Curve CBrand | Moeller |
Key Features
- This 1-pole MCB supports a rated voltage of 400V AC and a breaking capacity of 6 kA.
- Equipped with a thermal-magnetic trip mechanism ensuring both instantaneous and overload protection.
- Mounts easily on DIN rail with a compact width of 17.5 mm saving panel space.
- Features a toggle switch with clear contact position indication and trip-free mechanism for safety.
- IP20 rated for finger protection and designed to meet IEC 60947-2 and related international standards.
- Offers a modular design compatible within the Eaton xEffect series.
- Includes a short-circuit limiting design to reduce let-through energy and protect circuits effectively.
Product Description
Eaton FAZ6 Miniature Circuit Breaker (MCB) model FAZ6-C1/1 is a high-performance 1-pole circuit breaker rated at 1 ampere, designed for use in industrial, commercial, and residential electrical distribution systems. It operates at 400 volts AC with a breaking capacity of 6 kiloamperes, ensuring robust protection against overloads and short circuits.
This MCB belongs to the Eaton xEffect range, incorporating advanced thermal-magnetic tripping mechanisms that respond instantly to current surges, thereby preventing damage to equipment and wiring. The type C tripping curve allows for currents 5 to 10 times the rated current before tripping, suitable for circuits with moderate inrush currents typical in lighting and motor applications.
The device features a compact, modular design with a 17.5mm width per pole and mounts conveniently on standard DIN rails. Its toggle switch provides clear visual indication of contact position and cannot be bypassed by holding in the ON position, enhancing user safety with finger-proof IP20 protection and a trip-free mechanism.
This MCB series complies with IEC 60947-2 standards, suitable for low voltage industrial and commercial installations worldwide. The product ensures easy installation and maintenance, making it ideal for electrical panels, control circuits, and distribution boards requiring dependable short-circuit and overload protection.
1 pole, 1 ampere current rating with Type C tripping curve. Rated voltage of 400V AC and breaking capacity of 6 kA. Thermal-magnetic trip mechanism for combined overload and short-circuit protection. Compact 17.5mm width per pole for space-saving in distribution panels.
DIN rail mountable with toggle switch and trip-free operation. IP20 finger-safe enclosure for increased operator safety. Compliant with IEC 60947-2 and related industry standards.
Eaton xEffect MCBs facilitate secure, reliable electrical protection essential for industrial, laboratory, commercial, and residential electrical installations. This model is part of a broad range including interlocks, busbars, and accessories for comprehensive panel solutions.
Explore more Eaton circuit protection solutions and accessories on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker supports a rated voltage of 400V AC and has a breaking capacity of 6 kA.
It has a current rating of 1 ampere and features a single pole design.
This model is equipped with a thermal-magnetic trip mechanism, providing both instantaneous and overload protection.
The circuit breaker has a width of 17.5 mm and a depth of 62 mm, making it compact for installation.
The Type C tripping characteristic allows for tripping when the flow-through current is 5 to 10 times the rated current, suitable for circuits with moderate inrush currents.
Yes, it is designed for easy mounting on standard DIN rails, facilitating straightforward installation.
It has an IP20 rating, providing finger protection for enhanced safety.
This model complies with IEC 60947-2 standards, which are relevant for low voltage industrial and commercial installations.
It is suitable for use in industrial, commercial, and residential electrical distribution systems, providing protection against overloads and short circuits.
It includes a trip-free mechanism, a toggle switch for clear contact position indication, and cannot be bypassed when held in the ON position, enhancing user safety.
It features a modular design compatible with the Eaton xEffect series, allowing for integration with other circuit protection solutions.
The break time is instantaneous, ensuring quick response to overloads and short circuits.
