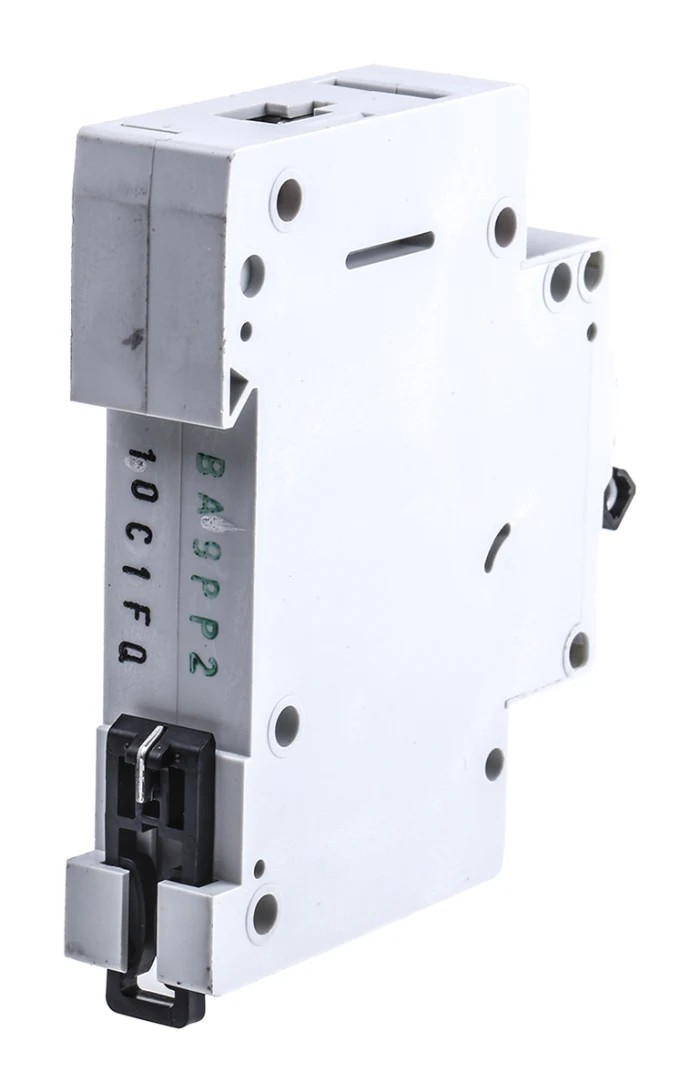

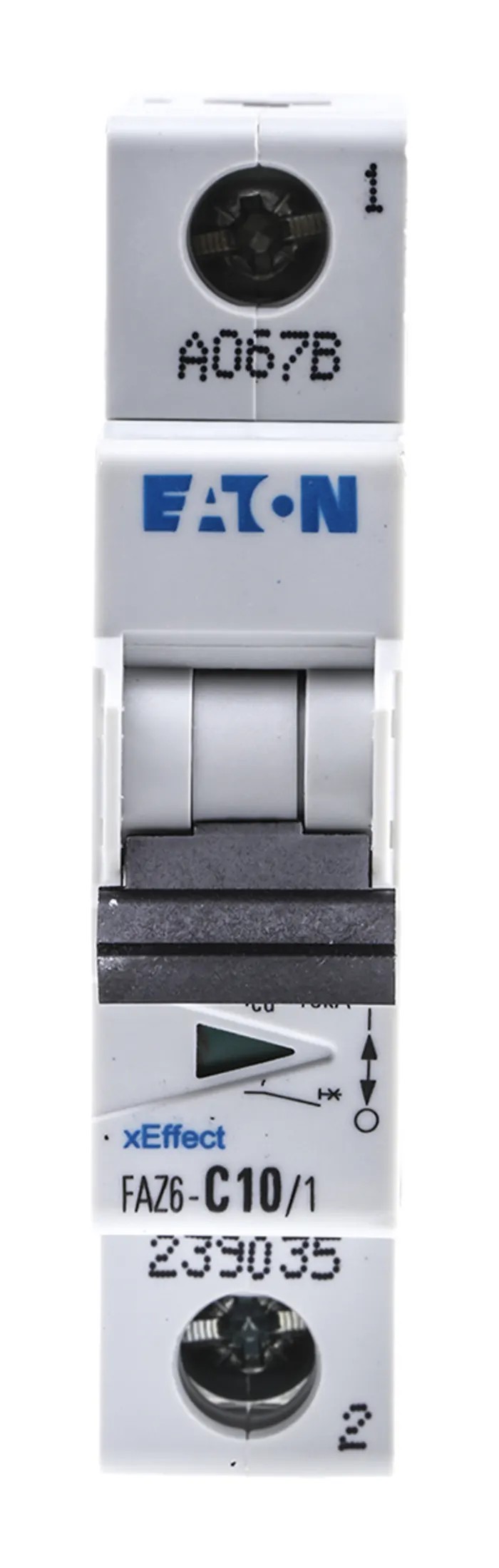

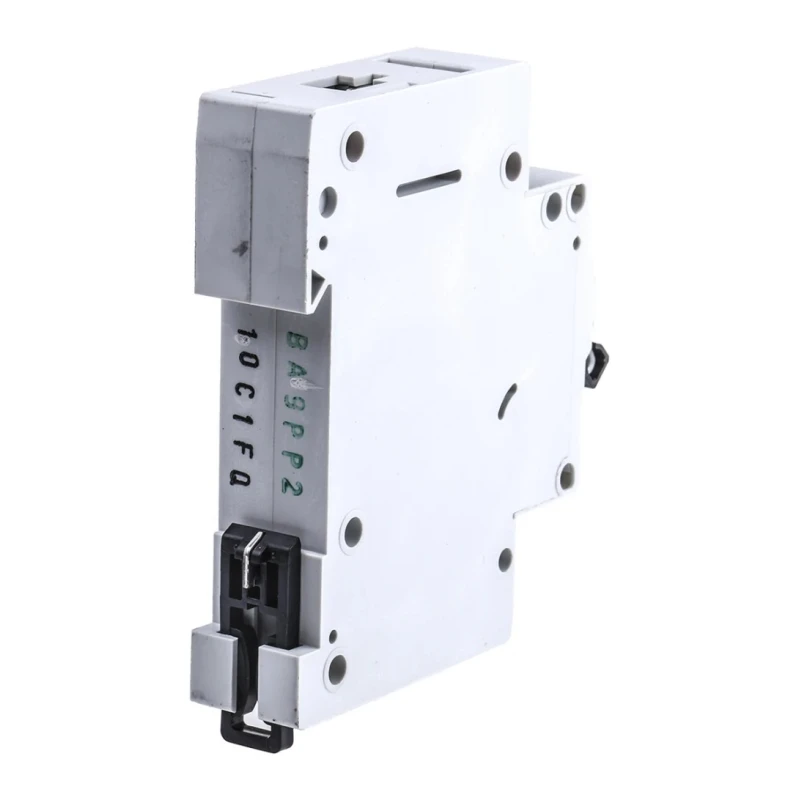

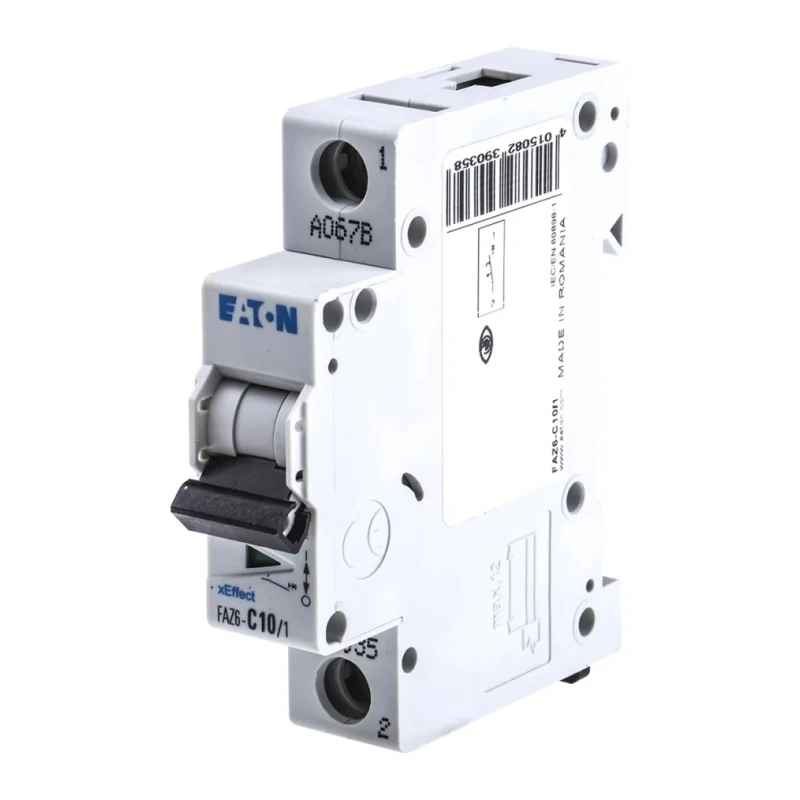

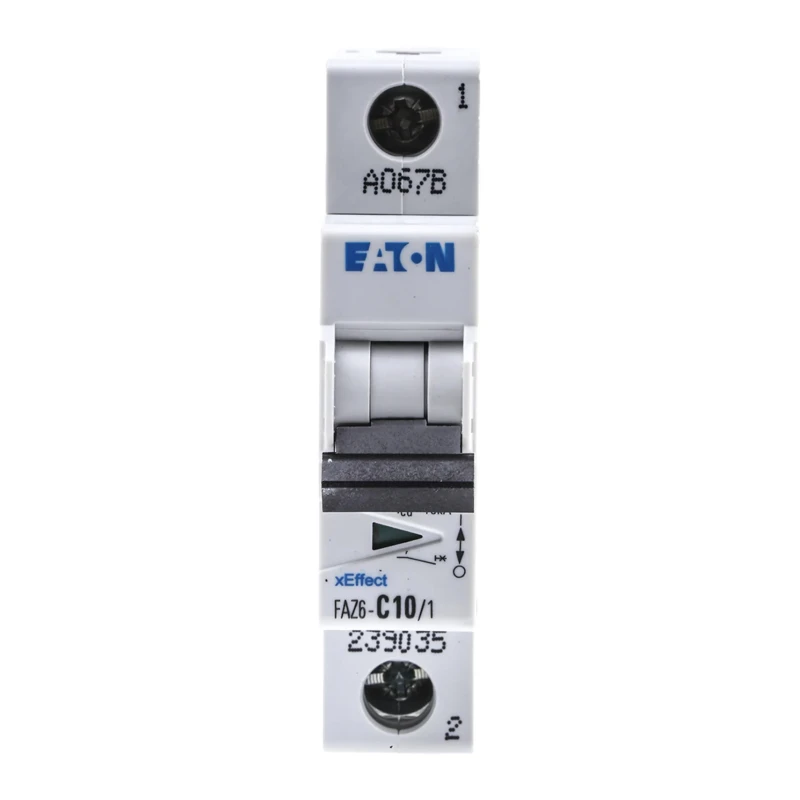

RS PRO xEffect Miniature Circuit Breaker 1-Pole 10A Type C 400V AC 6 kA Breaking Capacity -C10/1 FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | RS PRO |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
| Eaton PLS6 MCB Mini Circuit Breaker1P, 10A Curve C, 6 kA Breaking CapacityBrand | Moeller |
| Eaton MCB1P, 10A Curve CBrand | Moeller |
Key Features
- Compact 1-pole design for control and distribution circuits.
- Rated current of 10A with instant trip for currents 5 to 10 times the rating.
- DIN rail mounting allows space-saving installation.
- IP20 finger-safe protection for enhanced safety.
- Robust thermal-magnetic tripping mechanism prevents overload and short circuits.
- Clear front toggle switch indicates operational status.
- Complies with IEC 60947-2 standards for electrical safety.
- Module width of 17.5 mm supports modular panel design.
Product Description
Eaton FAZ6-C10/1 xEffect Miniature Circuit Breaker is a single-pole 10A circuit protection device optimized for use in electrical distribution boards and control panels. It features a thermal-magnetic tripping mechanism designed to interrupt overload and fault currents efficiently at up to 6 kA breaking capacity with a rated voltage of 400V AC. This breaker uses a type C tripping curve, triggering when currents range between five and ten times the rated current, ensuring reliable protection of circuits with moderate inductive loads.
The compact MCB has a 17.5 mm module width and mounts on standard DIN rails, facilitating easy, space-saving installations. It's finger-safe with an IP20 rating and a clear front toggle switch that shows the ON/OFF status for safety and user convenience. The trip-free mechanism guarantees that the breaker cannot be manually held ON during fault conditions.
This product complies with IEC 60947-2 standards, ensuring high-quality and internationally recognized performance. The FAZ6 series also includes accessories like interlocks and busbars, allowing extensive customization for complex electrical distribution systems.
Designed for industrial, commercial, and residential environments, this MCB efficiently safeguards electrical wiring against short circuits and overload, enhancing equipment safety and reliability.
Compact single-pole design for versatile circuit protection. Thermal-magnetic tripping ensures fast and reliable fault interruption. Type C tripping curve suitable for lighting, heating, and motor circuits. DIN rail mounting for installation flexibility and space savings.
Finger-safe IP20 design for operator protection. Clear toggle switch indicating breaker status. Trip-free mechanism prevents unsafe handle override. Compliant with IEC 60947-2 electrical safety standards. Module width of 17.5 mm supports compact panel configurations.
Applicable for industrial, commercial, and residential use cases. Explore more Eaton electrical protection devices and accessories in the Miniature Circuit Breaker category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, allowing it to interrupt fault currents efficiently.
It has a rated current of 10A, suitable for various circuit protection applications.
This unit features a thermal-magnetic tripping mechanism that provides reliable overload and short circuit protection.
The IP rating is IP20, indicating it is finger-safe and suitable for indoor use.
The Type C tripping characteristic triggers when the current flow is between 5 to 10 times the rated current, making it suitable for circuits with moderate inductive loads.
The dimensions include a width of 17.5 mm and a depth of 62 mm, designed for compact installation on DIN rails.
Yes, it is designed for industrial, commercial, and residential environments, providing effective circuit protection.
It mounts on standard DIN rails, allowing for easy and space-saving installation.
A clear front toggle switch indicates the ON/OFF operational status of the breaker.
Yes, it complies with IEC 60947-2 standards for electrical safety, ensuring reliable performance.
The module width is 17.5 mm, which supports modular panel design for compact configurations.
It is suitable for lighting, heating, and motor circuits due to its Type C tripping characteristics.
