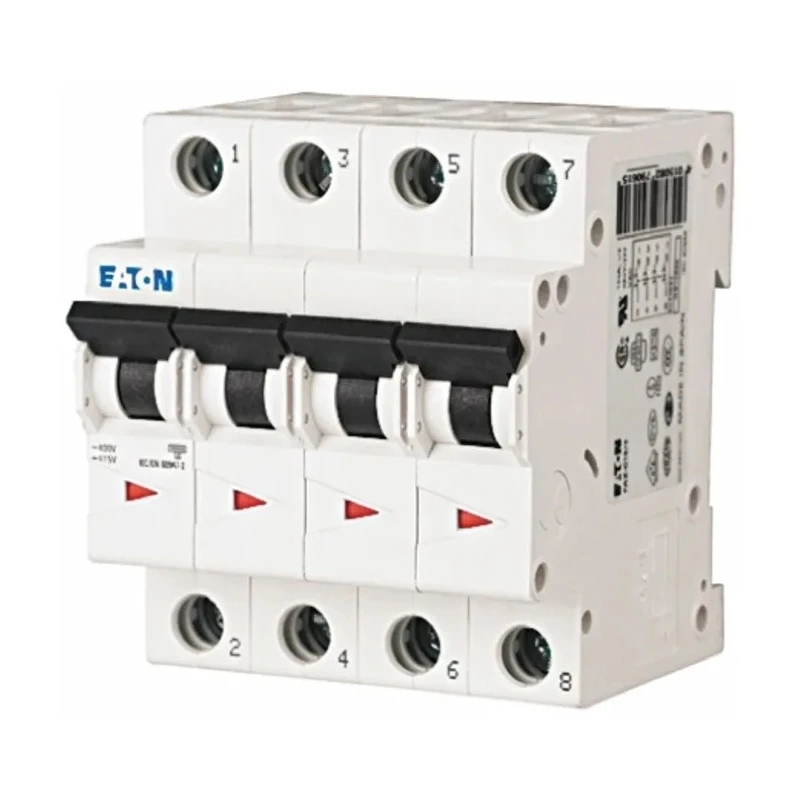

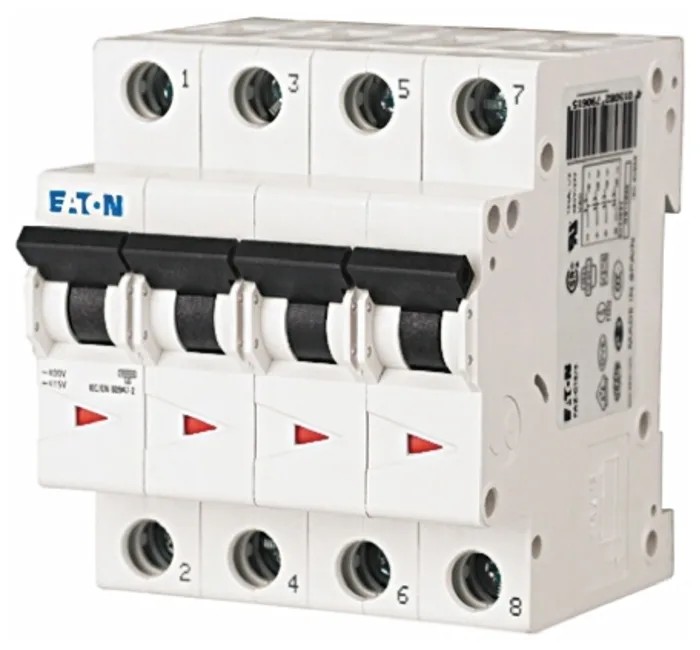

Eaton xEffect Miniature Circuit Breaker 4-Pole 63A Type B 400V AC 6 kA Breaking Capacity FAZ6

Eaton FAZ6 Miniature Circuit Breaker is a high-quality, 4-pole electrical protection device designed for industrial and commercial use with excellent reliability. Model FAZ6 ensures current interruption up to 63 amperes and operates at a rated AC voltage of 400V, making it suitable for low-voltage power distribution and circuit safeguarding.

This Miniature Circuit Breaker features Type B tripping characteristics, providing sensitive protection against overcurrent caused by short circuits or overloads. With a robust breaking capacity of 6 kiloamperes, it can safely interrupt fault currents to protect wiring and equipment.

It mounts easily on a standard DIN Rail and comes with twin-purpose terminals, facilitating quick and versatile installation. The device has an IP20 ingress protection rating, protecting internal components from solid objects larger than 12.5 mm, making it suitable for indoor electrical panels and control cabinets.

Measuring 80 mm in height, 17.5 mm in width, and 62 mm in depth, this circuit breaker balances compact design with full functional capabilities, allowing effective space management in electrical distribution boards.

Eaton FAZ6 is part of the renowned xEffect series (formerly Moeller), offering updated certification compliant with international standards IEC/EN 60947-2, IEC/EN 60898, UL 1077, and CSA (CSA 22.2 No.235). It carries CE and VDE approvals, ensuring it meets stringent safety and performance requirements.

This breaker is essential for electrical, automation, manufacturing, commercial, and industrial applications requiring dependable circuit protection to prevent damage from electrical faults.

Rated current of 63 amperes for robust circuit protection. Type B tripping characteristics ensuring sensitive fault response. Supports 400V AC rated voltage compatibility. Breaking capacity rated at 6 kA for effective interruption of fault currents.

Compact DIN Rail mounting with twin-purpose terminals for convenient installation. Complies with IEC/EN 60947-2, IEC/EN 60898, UL 1077, CSA standards and CE and VDE approvals. Designed with IP20 protection rating to safeguard against ingress of solid objects.

Dimensions of 80mm height, 17.5mm width, and 62mm depth optimize panel space usage. Part of Eaton xEffect FAZ / FAZ6 series, former Moeller range with updated certification. Discover the wide range of Eaton circuit protection solutions in EnvMart's Electronics & Electricals category for reliable and certified products.
