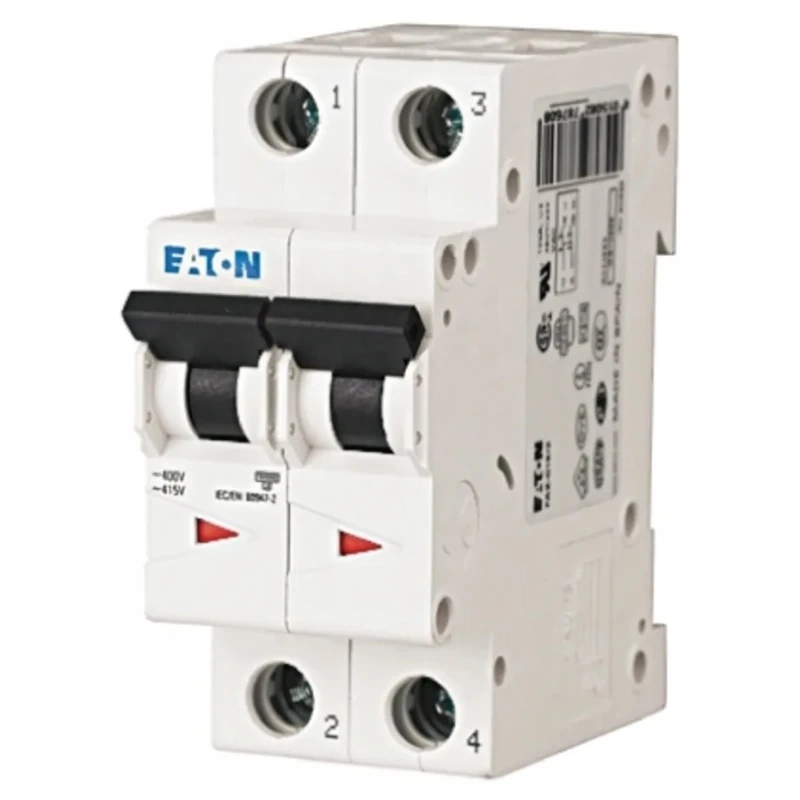

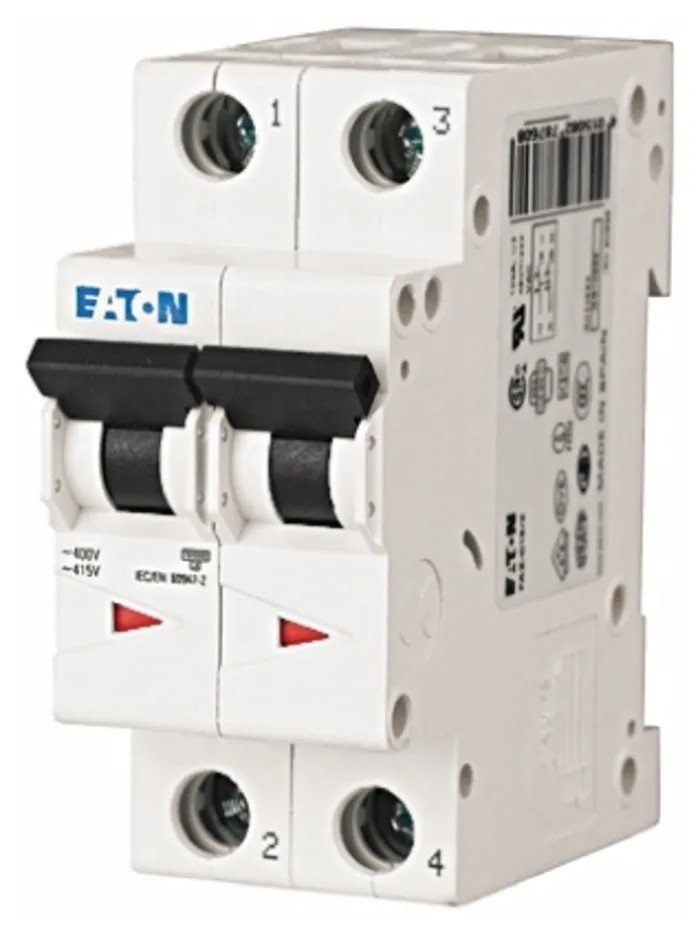

Eaton xEffect FAZ / FAZ6 Miniature Circuit Breaker 2-Pole 25A Type B 400V AC 6 kA Breaking Capacity FAZ6

Eaton FAZ6 miniature circuit breaker is a high-quality electrical protection device suitable for industrial, commercial, and residential installations. Rated for 25 Amperes with a 2-pole configuration, this Type B breaker provides reliable disconnection under overload and short circuit conditions at a breaking capacity of 6 kA.

Designed for 400V alternating current systems, the FAZ6 incorporates a thermal magnetic tripping mechanism ensuring precise and rapid response to electrical faults. Its construction supports mounting on standard DIN rails, enabling easy installation and replacement within distribution panels.

The breaker’s twin-purpose terminals accommodate various wiring approaches, enhancing operational flexibility and ensuring secure electrical connections. Eaton FAZ6 complies with global industry standards including IEC/EN 60947-2, IEC/EN 60898, UL 1077, and CSA 22.2 No. 235, guaranteeing safety and international approval.

Compact size dimensions - 80mm height, 17.5mm width, and 62mm depth - allow efficient panel space utilization. With an IP20 rating, it is suited for protected indoor environments and provides adequate protection against solid objects.

This miniature circuit breaker is ideal for use in industrial automation, electrical distribution boards, commercial buildings, and residential circuits where reliable overcurrent protection is critical. FAZ6 series, part of Eaton’s xEffect family, is a trusted solution formerly known as Moeller’s PLS6 updated and certified for IEC/EN standards.

Provides 6 kiloampere breaking capacity suitable for commercial and industrial applications. Operates at rated AC voltage of 400V ensuring compatibility with common electrical systems. Equipped with thermal magnetic tripping mechanism for efficient protection against overloads and short circuits.

Mounts easily on DIN rails for convenient installation and maintenance. Features twin-purpose terminals enhancing wiring flexibility and safety. Conforms to international standards IEC/EN 60947-2, IEC/EN 60898, UL 1077 and CSA 22.2 No. 235.

Compact dimensions with height 80mm, width 17.5mm, and depth 62mm suitable for panel integration. IP20 rated for basic protection in indoor electrical enclosures.
