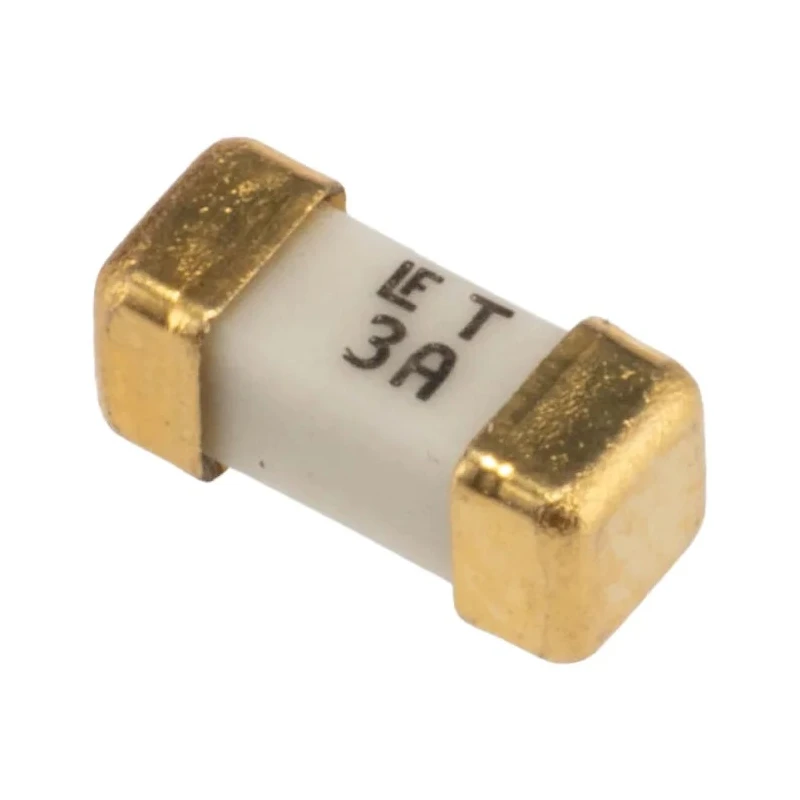

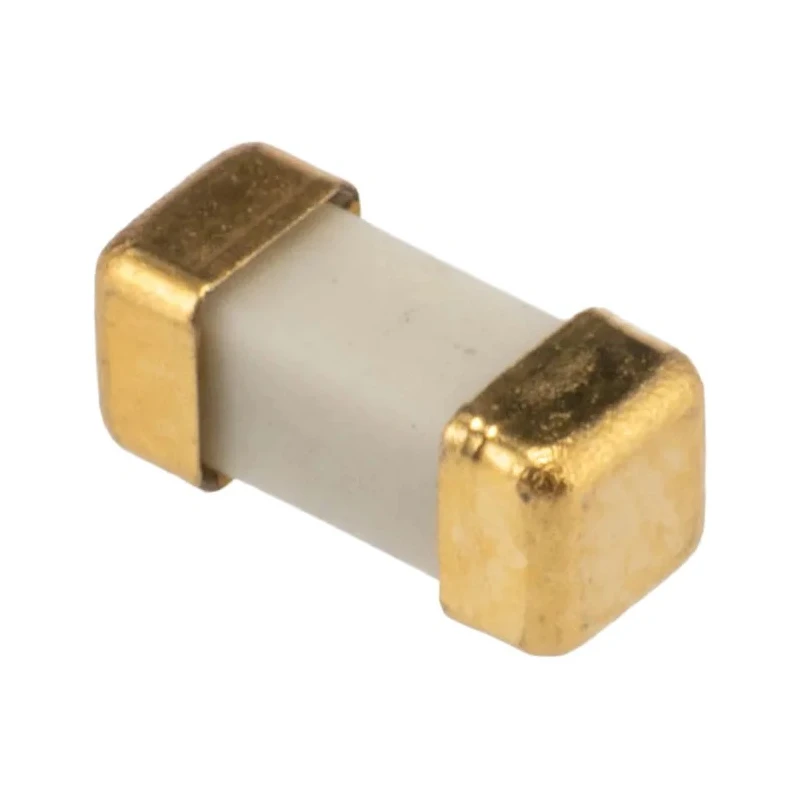

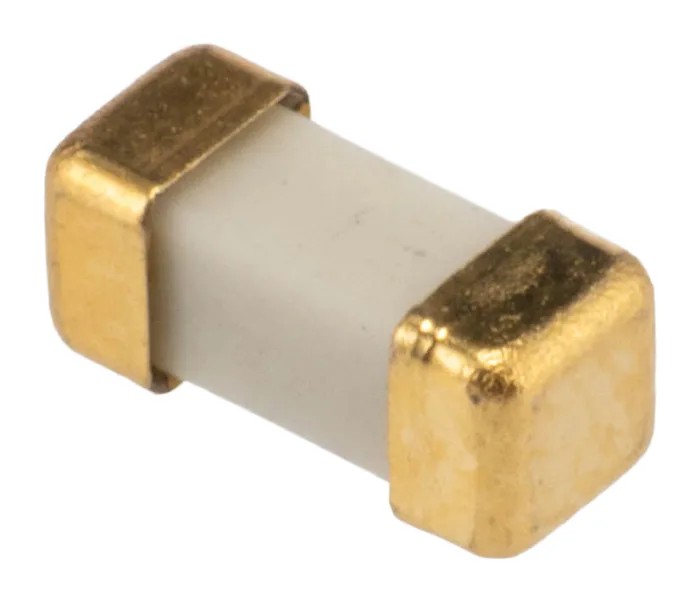

Littelfuse Non-Resettable Fuse 3A 125V AC Ceramic Body Time Delay 0452003.NRL

Littelfuse 0452003.NRL is a Non-Resettable Fuse with a 3 ampere current rating and 125V AC voltage rating, designed for effective circuit protection in electrical applications.

The fuse's ceramic body offers high durability and thermal resistance, making it suitable for demanding industrial and electronic environments. Its time delay characteristics allow it to withstand temporary inrush currents without nuisance blowing, protecting sensitive components.

This fuse features compact dimensions - 2.69mm width, 2.69mm height, and 6.1mm depth - facilitating surface mount technology applications where space is limited. Gold plated caps on terminals ensure reliable electrical connection and resist corrosion over time.

With a breaking capacity of 50 amperes, the fuse effectively interrupts fault currents to safeguard circuits. It operates efficiently across a wide temperature range from -55°C minimum to 125°C maximum, expanding its usability across varied environments.

The Littelfuse 452 Series NANO2 surface mount fuse is ideal for protecting high-value electronic components such as silicon ICs, alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical apparatus. This fuse meets RoHS compliance and CSA approvals, ensuring adherence to high-quality standards.

Designed for 3 ampere current rating and 125V AC voltage operation. Ceramic body ensures durability and thermal resistance. Time delay fuse characteristics accommodate transient inrush currents. Small compact size with 2.69mm width, 2.69mm height, and 6.1mm depth.

Gold plated terminals provide excellent connectivity and corrosion resistance. Breaking capacity of 50 amperes for safe fault interruption. Operational temperature range from -55°C to 125°C assures performance versatility.

Compliance with RoHS and CSA standards for reliability and safety. Ideal for industrial, electronic, and manufacturing applications requiring reliable circuit protection where reset capability is not needed. Explore more Littelfuse fuses and circuit protection devices available at EnvMart for your diverse electrical and electronic needs.
