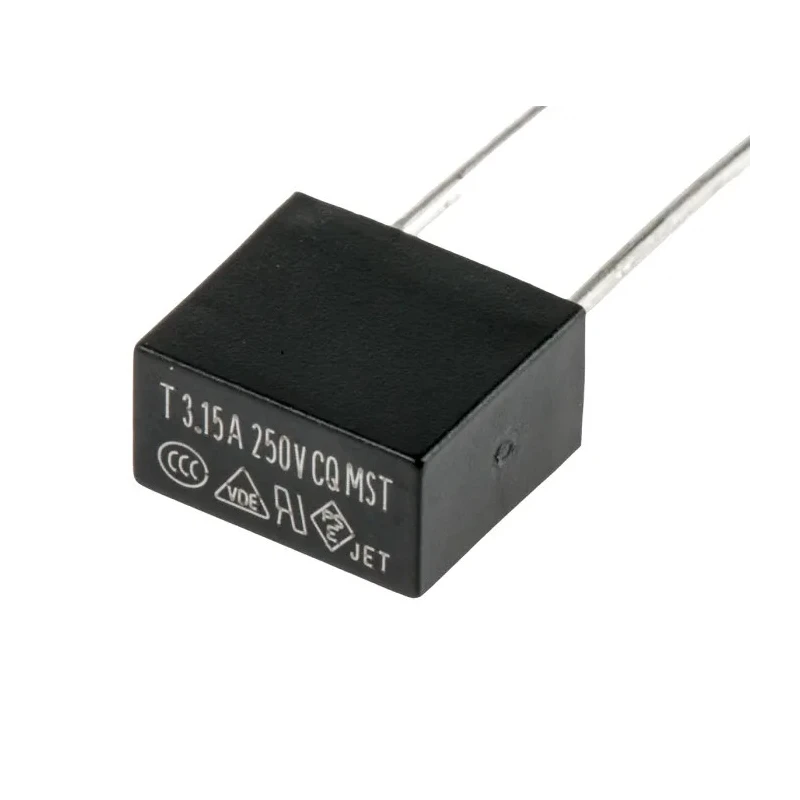

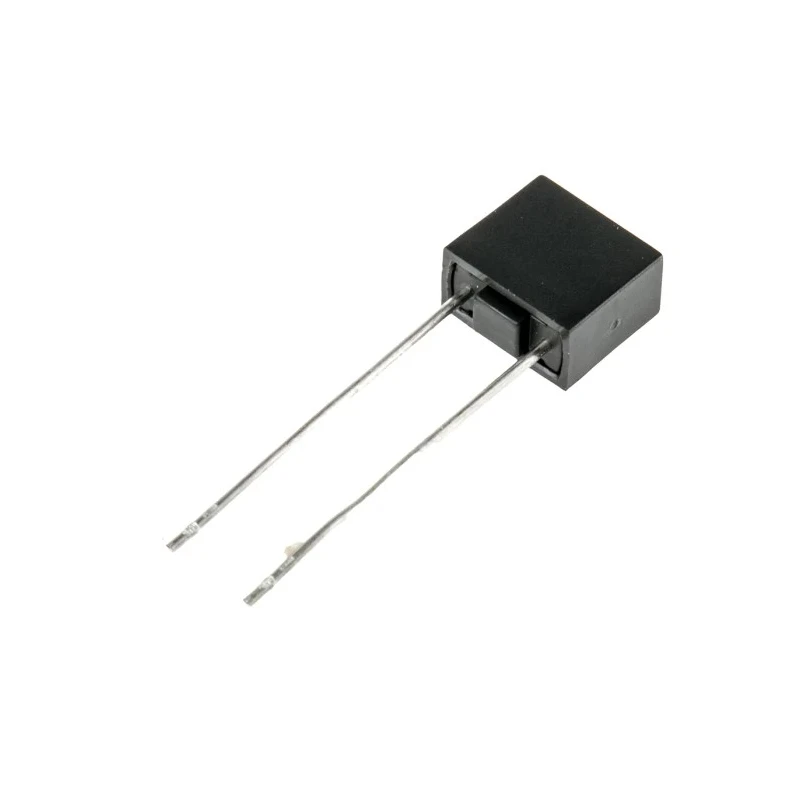

RS PRO Non-Resettable Fuse Radial 3.15A 250V AC Thermoplastic Body Slow Acting Time Delay Fuse 767-5052
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5052 |
| Width | 4.3mm |
| Current Rating | 3.15A |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Standards and Approvals | SEMKO, VDE, TUV, CSA, UL, CCC, KTL, PSE, RoHS |
| Lead Orientation | Radial |
Key Features
- This slow blow fuse withstands temporary current surges above its 3.15A rating.
- Radial lead orientation with 22mm long, 0.62mm diameter tin-plated copper pins allows easy circuit board attachment.
- The thermoplastic body is built to UL 94-V0 standards providing durable insulation and heat resistance.
- Designed to operate safely within a temperature range from -55°C to 125°C.
- Breaking capacity of 35A ensures robust protection during surge events.
- Meets multiple international approvals including CSA, RoHS, SEMKO, VDE, TUV, UL, CCC, KTL, and PSE.
- Ideal for a wide range of industrial, commercial, and electronic manufacturing applications.
Product Description
RS PRO 767-5052 Non-Resettable Fuse Radial 3.15A 250V AC is a thermoplastic slow acting micro fuse (TE5 size) intended for protecting electronics and electrical systems against short circuits, power surges, and mismatched loads that could cause permanent damage.
Slow blow fuses like this are designed to withstand brief surges of current above their rated value, making them suitable for circuits subject to temporary power variations without blowing unnecessarily.
The fuse features radial lead orientation with 22mm long tin-plated copper pins for easy PCB mounting. Its thermoplastic body complies with UL 94-V0 flammability rating, ensuring high safety standards.
Dimensionally, the fuse is compact with a length of 8.35mm, width of 4.3mm, height of 7.7mm, and pin diameter of 0.62mm. It operates over a wide temperature range from -55°C to 125°C and provides a breaking capacity of 35A, which guarantees robust protection during fault conditions.
This product meets numerous international safety and quality standards, including CSA, RoHS, SEMKO, VDE, TUV, UL, CCC, KTL, and PSE, certifying its reliability and global applicability.
Applications include industrial automation, electronic manufacturing, electrical assembly, and other commercial uses requiring reliable fuse protection on printed circuit boards. This slow blow fuse withstands temporary current surges above its 3.15A rating.
Radial lead orientation with 22mm long, 0.62mm diameter tin-plated copper pins allows easy circuit board attachment. The thermoplastic body is built to UL 94-V0 standards providing durable insulation and heat resistance.
Designed to operate safely within a temperature range from -55°C to 125°C. Breaking capacity of 35A ensures robust protection during surge events. Meets multiple international approvals including CSA, RoHS, SEMKO, VDE, TUV, UL, CCC, KTL, and PSE.
Compact size: length 8.35mm, width 4.3mm, height 7.7mm. Ideal for a wide range of industrial, commercial, and electronic manufacturing applications. Explore the extensive range of RS PRO products at EnvMart for quality, reliability, and performance in industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.15A.
It is rated for 250V AC operation.
The breaking capacity is 35A, providing robust protection during surge events.
This unit is designed to operate safely within a temperature range from -55°C to 125°C.
The dimensions are 8.35mm in length, 4.3mm in width, and 7.7mm in height.
It features a radial lead orientation with 22mm long tin-plated copper pins for easy PCB mounting.
The body is made of thermoplastic, which complies with UL 94-V0 standards for insulation and heat resistance.
It meets multiple international standards including CSA, RoHS, SEMKO, VDE, TUV, UL, CCC, KTL, and PSE.
It is a slow acting time delay fuse, designed to withstand temporary current surges above its rated value.
It is ideal for industrial automation, electronic manufacturing, and electrical assembly applications.
The diameter of the lead pins is 0.62mm.
The country of origin for this fuse is Taiwan.
