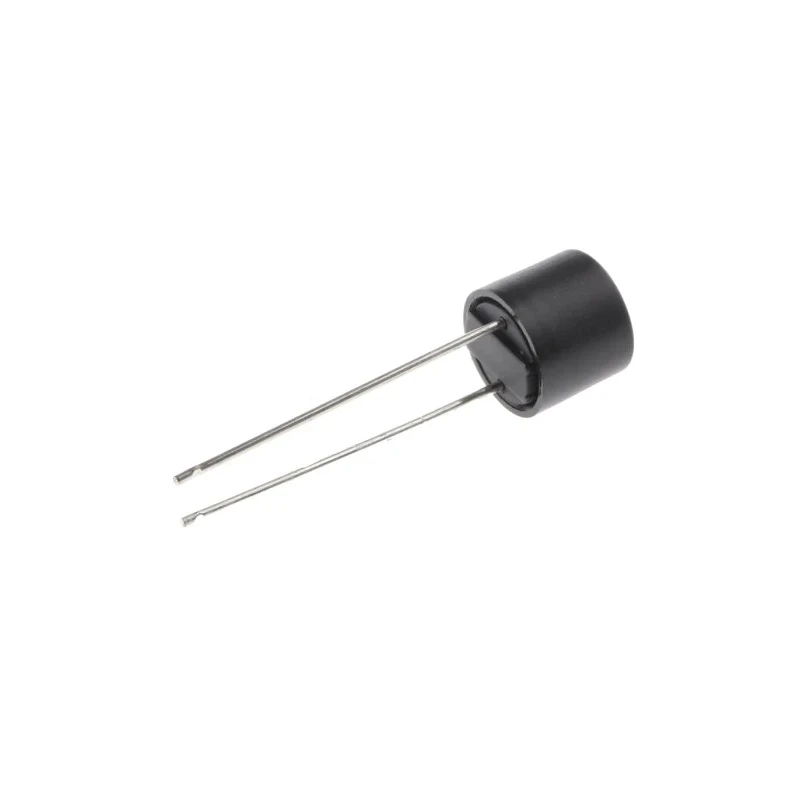

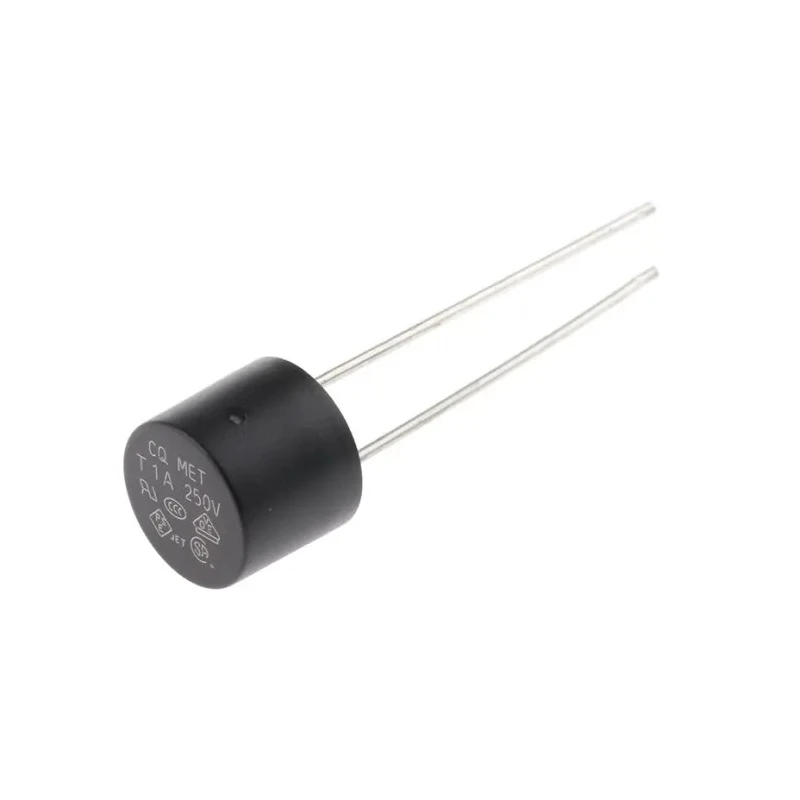

RS PRO Non-Resettable Fuse Radial 1A 250V Thermoplastic Body Time Delay 35A Breaking Capacity 767-5140

RS PRO 767-5140 Non-Resettable Fuse Radial 1A 250V is engineered to provide reliable overcurrent protection in electronic circuits and industrial electrical systems. Featuring a robust thermoplastic body and radial leads, this fuse is ideal for PCB installations requiring durable and compact fuse solutions.

The fuse’s time delay characteristic offers protection against temporary overloads while allowing normal inrush currents, making it suitable for applications with motors and transformers.

This 1 ampere fuse is rated for 250 volts and has a breaking capacity of 35 amperes, ensuring rapid interruption in case of faults to prevent damage to sensitive components. Its compact dimensions, including a length of 5.08 mm, diameter of 8.35 mm, and height of 7.7 mm, make it compatible with various circuit designs where space is limited.

Operating reliably in temperatures from -55°C up to 125°C, this fuse is suitable for industrial, laboratory, manufacturing, and electrical automation uses. The component complies with applicable CSA and RoHS certifications, ensuring environmental safety and electrical standards compliance.

The fuse features a thermoplastic body for enhanced durability. Radial lead orientation for easy installation on printed circuit boards. Rated current of 1 ampere and voltage of 250 volts. Time delay fuse characteristic provides surge protection.

Breaking capacity up to 35 amperes ensures circuit safety. Compact size with 5.08 mm length and 8.35 mm diameter. Operational temperature range from -55°C to 125°C. Conforms to CSA and RoHS standards for quality assurance.

Manufactured in Taiwan, Province Of China.

This RS PRO series fuse is widely used in electronics manufacturing, industrial electrical systems, and automation equipment, providing dependable circuit protection. Browse similar products in the Non-Resettable Fuse category on EnvMart for more options.
