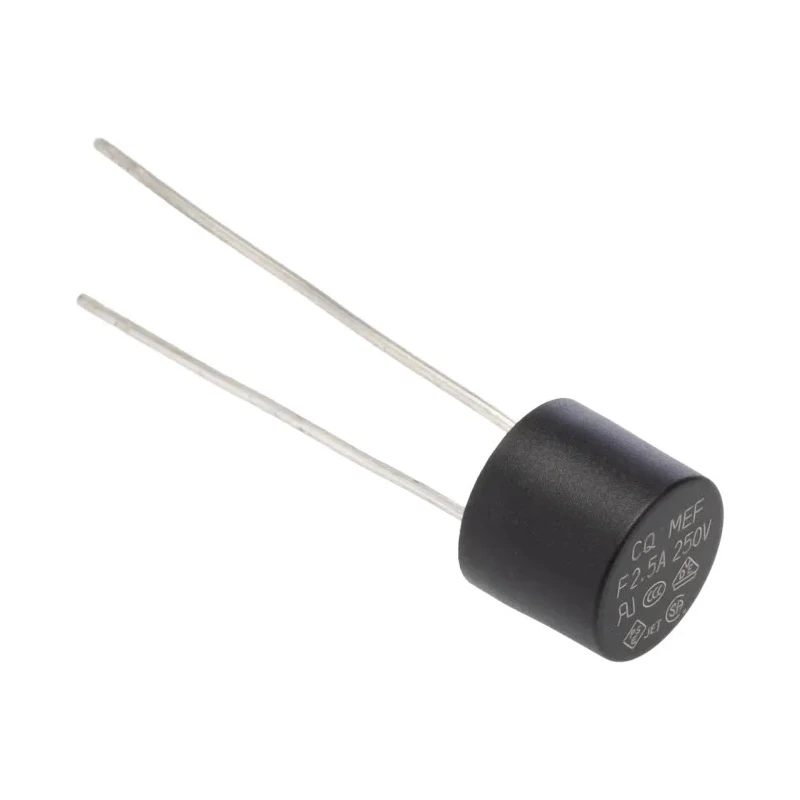

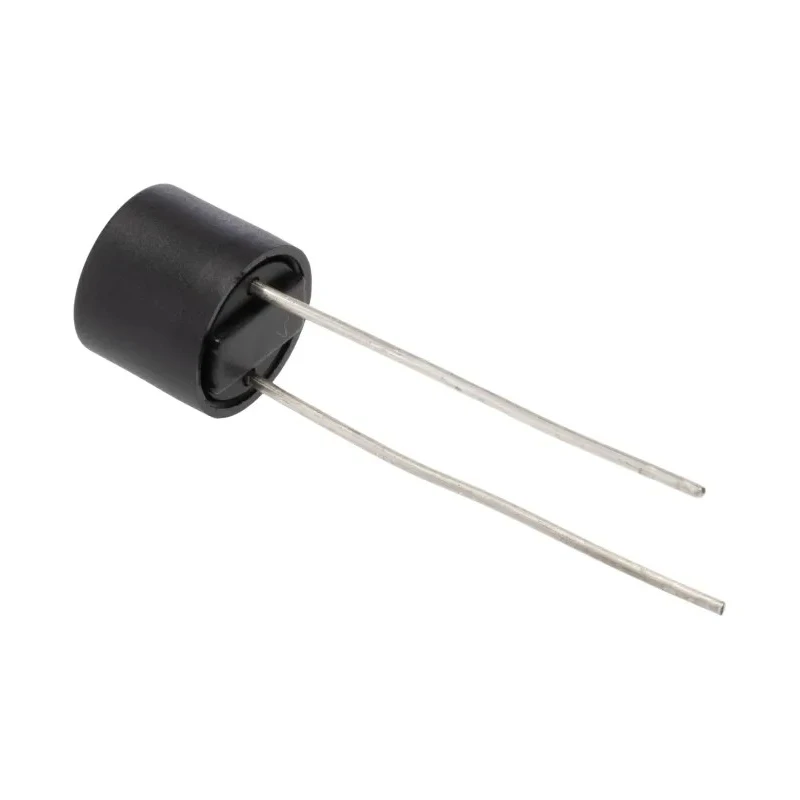

RS PRO Non-Resettable Fuse Radial 2.5A 250V AC Thermoplastic Body 35A Breaking Capacity 767-5210
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.35mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 5.08mm |
| Model | 767-5210 |
| Current Rating | 2.5A |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | RoHS |
| Lead Diameter | 0.62mm |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
| Schurter Non-Resettable Fuse, Radial 2.5A, 250V acBrand | Schurter |
Key Features
- Rated current of 2.5 amps suitable for low current circuit protection.
- Fast acting fuse characteristic offers rapid response to overcurrent events.
- Thermoplastic polyamide body material provides electrical insulation and mechanical strength.
- Lead orientation is radial with 22mm lead length and 0.62mm lead diameter for secure connections.
- High breaking capacity of 35 amps for safe interruption of fault currents.
- Operating temperature range from -55°C to 125°C ensures reliable performance under varied conditions.
- Compliant with RoHS standards indicating reduced hazardous materials.
Product Description
RS PRO 767-5210 Non-Resettable Fuse is a fast acting radial fuse with a current rating of 2.5A and voltage rating of 250V AC. The fuse features a thermoplastic polyamide body that offers high durability and electrical insulation, suitable for various circuit protection applications in industrial and electrical automation environments.
This fuse is designed to provide rapid response to overcurrent situations, ensuring safety by interrupting excessive current flow quickly. Its compact size with a length of 5.08mm, height of 7.7mm, and diameter of 8.35mm allows for seamless integration into electrical circuits.
The lead orientation is radial, with 22mm lead length and 0.62mm lead diameter, facilitating robust and reliable connections. The fuse is capable of breaking fault currents up to 35A, making it suitable for demanding electrical protection tasks.
Operating reliably across a temperature range from -55°C to 125°C, this fuse maintains performance stability in harsh industrial conditions. It complies with RoHS standards, reflecting its environmentally safe design and manufacture. Manufactured in Taiwan, Province Of China, the RS PRO 767-5210 model offers trusted quality in circuit protection solutions.
Rated current of 2.5A suitable for precise circuit protection. 250V AC voltage rating compatible with standard electrical systems. Fast acting fuse characteristic for swift overcurrent interruption. Thermoplastic polyamide body for electrical insulation and mechanical durability.
Compact dimensions for versatile mounting options. Radial lead orientation with long leads for secure fittings. High breaking capacity of 35A for fault current protection. Wide operating temperature range from -55°C to 125°C.
Complies with RoHS environmental standards.
This fuse is ideal for use in electrical, industrial automation, manufacturing, and circuit protection applications requiring reliable, fast-acting interrupt capability. Browse more Non-Resettable Fuses and related circuit protection products on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 767-5210 non-resettable fuse has a current rating of 2.5A.
This fuse is rated for a voltage of 250V AC, making it suitable for standard electrical systems.
It has a high breaking capacity of 35A, allowing it to safely interrupt fault currents.
The fuse measures 5.08mm in length, 7.7mm in height, and has a diameter of 8.35mm.
The body of this fuse is made from thermoplastic polyamide, providing electrical insulation and mechanical strength.
The fuse features a radial lead orientation with a lead length of 22mm and a lead diameter of 0.62mm.
It operates reliably within a temperature range of -55°C to 125°C.
Yes, it complies with RoHS standards, indicating reduced hazardous materials in its manufacture.
This model features a fast acting fuse characteristic, allowing for rapid response to overcurrent events.
This fuse is suitable for various circuit protection applications in electrical and industrial automation environments.
This fuse is manufactured in Taiwan, Province Of China.
The breaking capacity indicates the maximum fault current the fuse can safely interrupt, which is 35A for this model.
