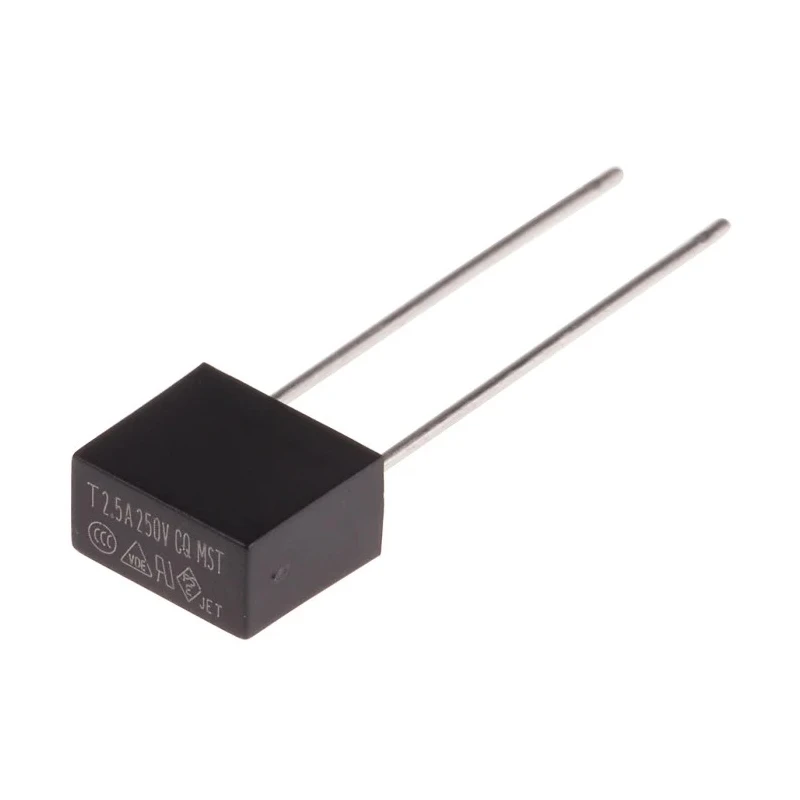

RS PRO Non-Resettable Fuse Radial 2.5A 250V AC Thermoplastic Body 767-5058

RS PRO 767-5058 Non-Resettable Fuse is an essential electrical component designed for circuit protection in industrial, commercial, and residential applications. Featuring a radial lead orientation and rated for 2.5 amperes at 250 volts AC, this fuse incorporates a thermoplastic body that enhances insulation resistance and durability.

The fuse dimensions are compact, measuring 8.35mm in length, 4.3mm in width, and 7.7mm in height, enabling installation in tight spaces. The lead length of 22mm facilitates secure soldering or mounting connections. It operates reliably in environments ranging from -55°C to 125°C, accommodating a broad spectrum of operating conditions.

This time delay, or slow blow, fuse characteristic allows it to tolerate short current surges, making it suitable for inductive loads and transient conditions without premature fuse opening. Its breaking capacity of 35 amperes ensures it can safely interrupt fault currents, protecting critical equipment.

RS PRO 767-5058 complies with RoHS and CSA standards, reflecting adherence to environmental and safety regulations. The fuse's body and caps are made from UL 94-V0 rated thermoplastic material, providing high flame retardancy and electrical safety.

Ideally suited for use in electrical assemblies, automation systems, HVAC equipment, and industrial machinery, this fuse acts as a dependable safeguard against overcurrent and short circuits, thereby enhancing system reliability and safety.

Current rating of 2.5 amperes suitable for delicate electrical circuits. Rated voltage of 250 volts alternating current for safe usage. Thermoplastic body material ensures durable insulation and safety. Radial lead orientation with 22mm lead length for easy mounting.

Compact dimensions: length 8.35mm, width 4.3mm, height 7.7mm for space-saving applications. Operating temperature range from -55°C minimum to 125°C maximum for reliable performance. Time delay fuse characteristics for handling transient overloads without nuisance blowing.

Breaking capacity of 35 amperes to withstand high fault currents safely. Conforms to RoHS and CSA standards ensuring compliance and quality. Manufactured in Taiwan, Province Of China with strict quality control. Explore more industrial electrical components and fuse solutions on EnvMart to enhance your project efficiency and safety standards.
