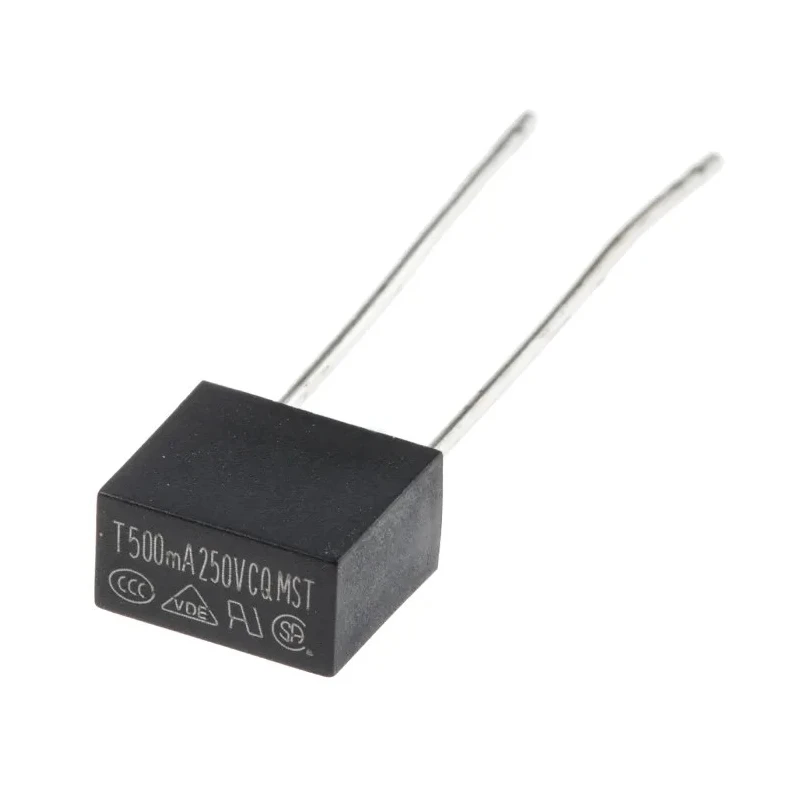

RS PRO Non-Resettable Fuse Radial 500mA 250V AC Time Delay Thermoplastic Body 767-5033
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5033 |
| Width | 4.3mm |
| Current Rating | 500mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- This fuse features a time delay characteristic for protection against transient surges.
- The body is made of black thermoplastic with UL 94-V0 flammability rating.
- It has a breaking capacity of 35A ensuring robust disconnection.
- Lead orientation is radial with 22mm length and 0.62mm diameter tin-plated copper pins.
- It operates reliably from -55°C to a maximum of 125°C for harsh environments.
- Complies with CSA and RoHS standards for safety and environmental regulations.
- Suitable for industrial, electrical automation, and electronic circuit protection applications.
Product Description
RS PRO 767-5033 Non-Resettable Fuse is a high-quality radial fuse rated at 500mA current and 250V AC voltage. Its time delay characteristic makes it ideal for protecting circuits susceptible to transient surges, providing reliable and consistent performance in demanding industrial and electrical automation environments.
The fuse body is manufactured from thermoplastic material with UL 94-V0 flame retardant rating, ensuring durability and safety. Its pins are made of tin-plated copper, offering excellent conductivity and corrosion resistance. The radial lead orientation and dimensions of 22mm lead length, 8.35mm length, 4.3mm width, and 7.7mm height allow easy PCB mounting and integration.
This fuse conforms to CSA and RoHS standards, reflecting compliance with industry safety and environmental requirements. Operating temperature range from -55°C to 125°C ensures dependable functionality even under extreme thermal conditions.
Additional robustness is provided by a breaking capacity of 35A, ensuring the fuse can interrupt high fault currents safely. Its vibration and thermal shock resistances conform to MIL-STD-202G standards, increasing reliability in harsh environments.
RS PRO Non-Resettable Fuse models like 767-5033 are widely used across industrial machinery, electrical automation systems, and electronic equipment for effective circuit protection. This component is essential for preventing damage due to overcurrent and maintaining operational safety.
This fuse features a time delay characteristic for protection against transient surges. The body is made of black thermoplastic with UL 94-V0 flammability rating. It has a breaking capacity of 35A ensuring robust disconnection.
Lead orientation is radial with 22mm length and 0.62mm diameter tin-plated copper pins. It operates reliably from -55°C to a maximum of 125°C for harsh environments. Complies with CSA and RoHS standards for safety and environmental regulations.
Suitable for industrial, electrical automation, and electronic circuit protection applications. Discover more RS PRO products and detailed specifications to meet your circuit protection and automation needs at EnvMart.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This non-resettable fuse has a current rating of 500mA.
It can handle a maximum voltage of 250V AC.
The breaking capacity of this fuse is 35A, allowing it to interrupt high fault currents safely.
The dimensions of the fuse are 8.35mm in length, 4.3mm in width, and 7.7mm in height, with a lead length of 22mm.
The body of the fuse is made from thermoplastic material, and the pins are made of tin-plated copper.
It operates reliably within a temperature range from -55°C to a maximum of 125°C.
Yes, it complies with CSA and RoHS standards for safety and environmental regulations.
The lead orientation of this fuse is radial.
The fuse body has a UL 94-V0 flammability rating, indicating its flame retardant properties.
This fuse is suitable for industrial, electrical automation, and electronic circuit protection applications.
This fuse features a time delay characteristic, making it ideal for protecting circuits against transient surges.
The country of origin for this fuse is Taiwan.
