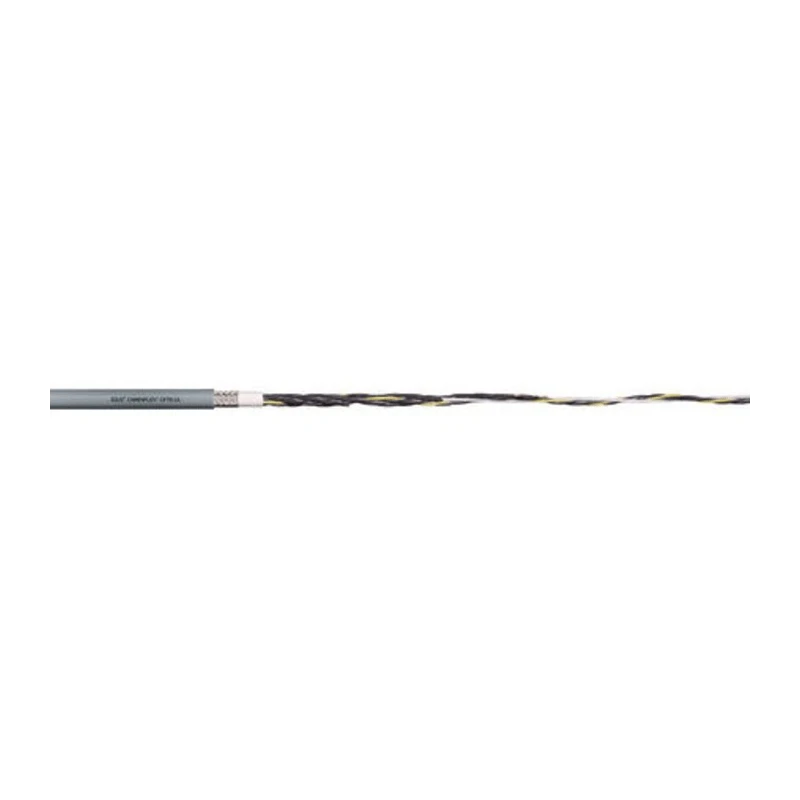

Igus Chainflex CF78.UL Control Cable 12 Cores 0.5mm² 20 AWG Screened Armoured 25m Grey Thermoplastic Elastomer CF78.UL.05.12

Igus CF78.UL.05.12 Chainflex® PUR control cable is an industrial-grade screened and armoured cable with 12 cores of 0.5mm² (20 AWG) conductor cross-section, sheathed in durable grey thermoplastic elastomer. Designed specifically for high load applications, it provides exceptional resistance to oils and coolants, making it suitable for demanding industrial environments.

This cable is flame-retardant according to IEC 332-1, CEI 20-35, and FT1 standards, ensuring safety in hazardous conditions. Its notch-resistant shielding protects the conductors from mechanical damage while maintaining excellent signal integrity, critical for automation and control systems.

The cable features PVC-free and halogen-free materials for enhanced environmental safety and reduced toxicity in case of fire. Its core insulation employs a mechanically high-quality TPE mixture, offering robust flexibility and mechanical strength, ideal for applications involving continuous movement.

With a length of 25 meters and a nominal outside diameter of 12.5mm, this cable suits installations requiring moderate reach with reliable shielding and armouring. It supports operating voltages up to 300 V, a maximum operating temperature of 80°C, and a minimum of -35°C, making it resilient across a wide temperature range.

Certified under CE and EN standards and manufactured in Germany, it is widely used in industrial automation, machinery control, robotics, and equipment requiring highly reliable and safe control signal cabling. The armoured construction safeguards the cable in environments with mechanical stresses or potential cable damage risks.

Designed for high load requirements with excellent oil and coolant resistance. Flame-retardant compliant with IEC 332-1, CEI 20-35, FT1 standards. Shielded and notch-resistant for mechanical and signal protection. Made from PVC-free and halogen-free materials for safer operation.

Core insulation features a mechanically high-quality TPE mixture. Supports freely suspended and gliding travel distances of up to 100 meters. Operating voltage rated at 300 V with operating temperature range from -35°C to 80°C.

Certified CE and EN standards and manufactured in Germany.

This control cable is ideal for use in industrial automation systems, process control, machinery, and equipment requiring durable and shielded cable solutions. Explore other quality cables in the Control Cable category on EnvMart for precise industrial applications.
