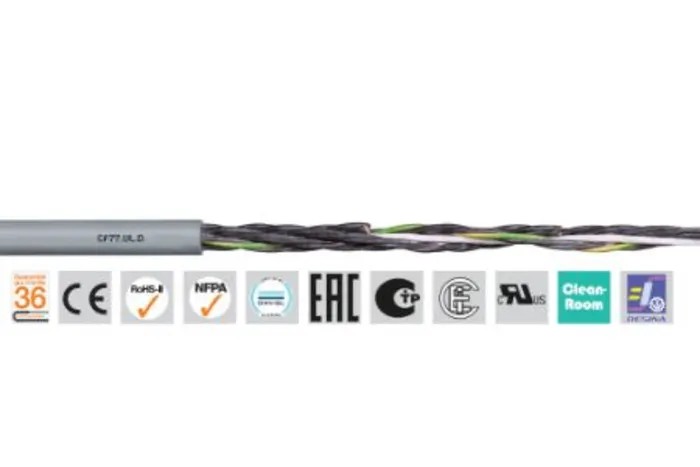

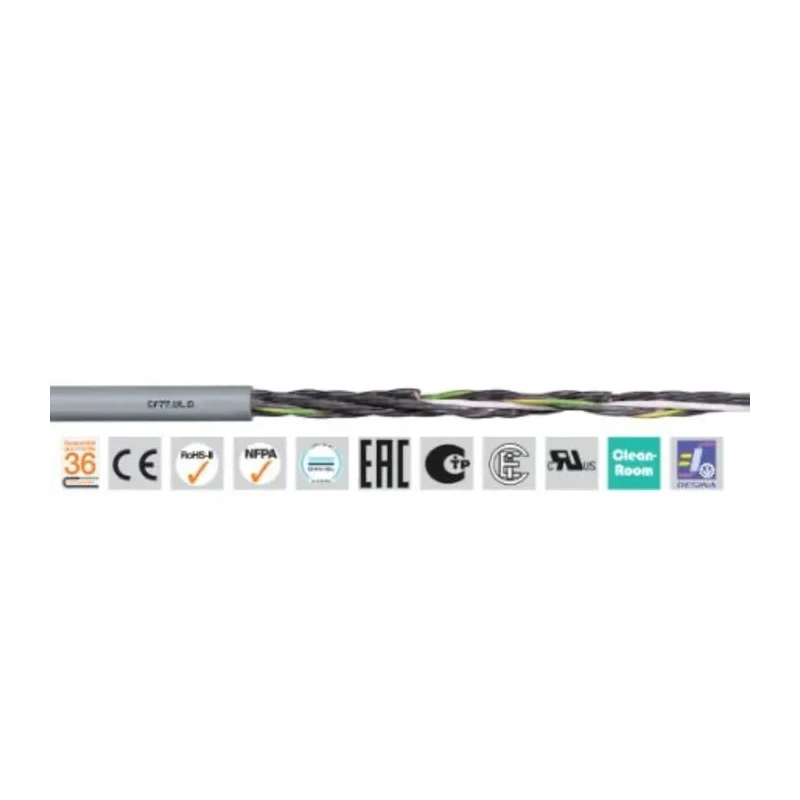

Igus Control Cable 5 Cores 2.5mm² 13 AWG Unscreened 50 m Grey Thermoplastic Elastomer Sheath CF77.UL.25.05.D (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF77.UL.25.05.D (50m) |
| Cable Length | 50m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 5 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free, Flame Retardant |
| American Wire Gauge | 13AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 2.5mm² |
Key Features
- The thermoplastic elastomer jacket provides robust protection in harsh environments.
- The cable is unscreened and armoured for enhanced durability.
- Designed for use in control cable applications with 300/500V voltage rating.
- It supports flexible dynamic use with a small bend radius optimized for echain installation.
- Offers resistance to oil, bio-oil, flame retardance, halogen free and compliance with multiple standards.
- Suitable for indoor and outdoor industrial automation, machinery, packaging, refrigeration and more.
- Operates reliably in temperature ranges from -50°C to +80°C.
- Constructed in Germany with high quality copper stranded conductors and grey jacket.
Product Description
Igus CF77.UL.25.05.D (50m) control cable delivers industrial-grade performance with 5 cores of 2.5mm² stranded copper conductors enclosed in a durable thermoplastic elastomer (TPE) grey jacket. This unscreened, armoured cable is engineered for demanding control cable applications with a voltage rating of 300/500V, providing long service life in harsh environments.
The cable's patented core bundled design ensures a small bend radius, making it ideal for use in cable carrier systems (echains) and flexible or fixed installations. Its oil-resistant Class 4 TPE jacket withstands aggressive oil and bio-oil exposure, while also being halogen-free and flame retardant according to IEC 60332-1-2 standards.
Designed to operate within temperature ranges from -50°C to +80°C, this cable supports continuous flexing applications and complies with EN, CE, UL/CSA 11113, 2570 and NFPA79 standards. The grey thermoplastic elastomer sheath enhances UV resistance and oil resistance, ensuring reliable use in indoor and outdoor industrial automation, machining, packaging, storage, refrigeration, and material handling sectors.
This product is manufactured in Germany, guaranteeing high build quality and compliance with international norms. Its stranded construction and 13 AWG (American Wire Gauge) conductor size provide excellent conductivity and flexibility.
The thermoplastic elastomer jacket offers robust protection against abrasion and chemicals. Its unscreened design suits environments where EMC/EMI interference is not critical. Small bend radius enables space-saving installation in cable carriers.
Oil resistant and halogen-free for safer operation in industrial settings. Certified flame retardant and compliant with EN and CE standards. Wide operating temperature range of -50°C to +80°C. Stranded copper conductor for flexibility and durability.
Ideal for Control Cable applications in environments requiring durability, flexibility, and chemical resistance. Browse more high-quality cables and electrical components on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this control cable is 300/500V.
This model can operate at a maximum temperature of 80°C.
It has 5 cores.
The conductor material is stranded copper.
The outside diameter of the cable is 10.5mm.
The cable is equipped with a thermoplastic elastomer (TPE) jacket.
This control cable is unscreened.
It operates reliably within a temperature range of -50°C to +80°C.
This cable complies with EN and CE standards.
The cable length is 50 meters.
The American Wire Gauge rating for this cable is 13 AWG.
This cable is manufactured in Germany.
