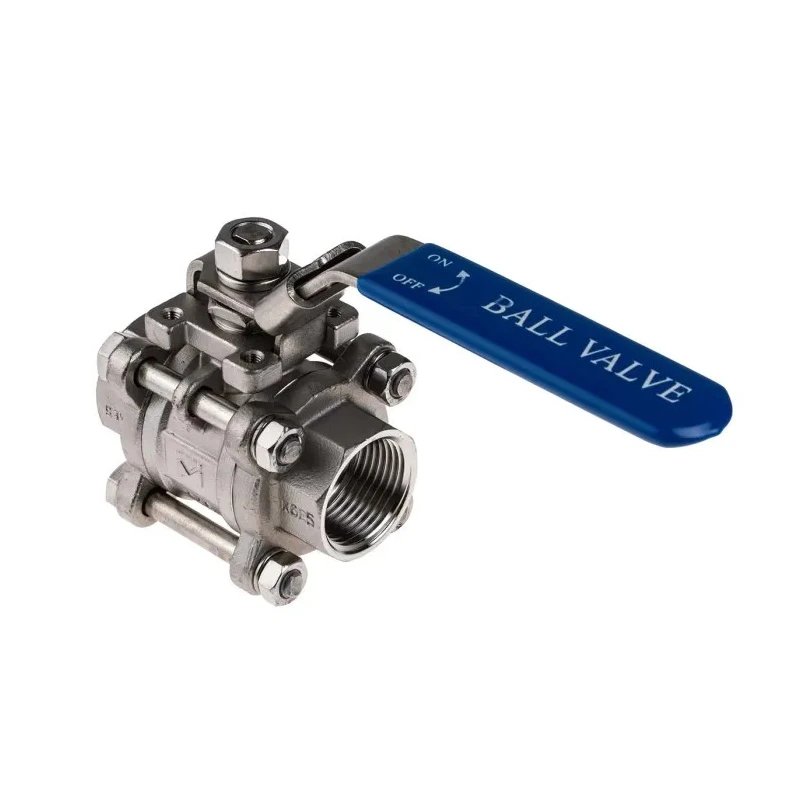

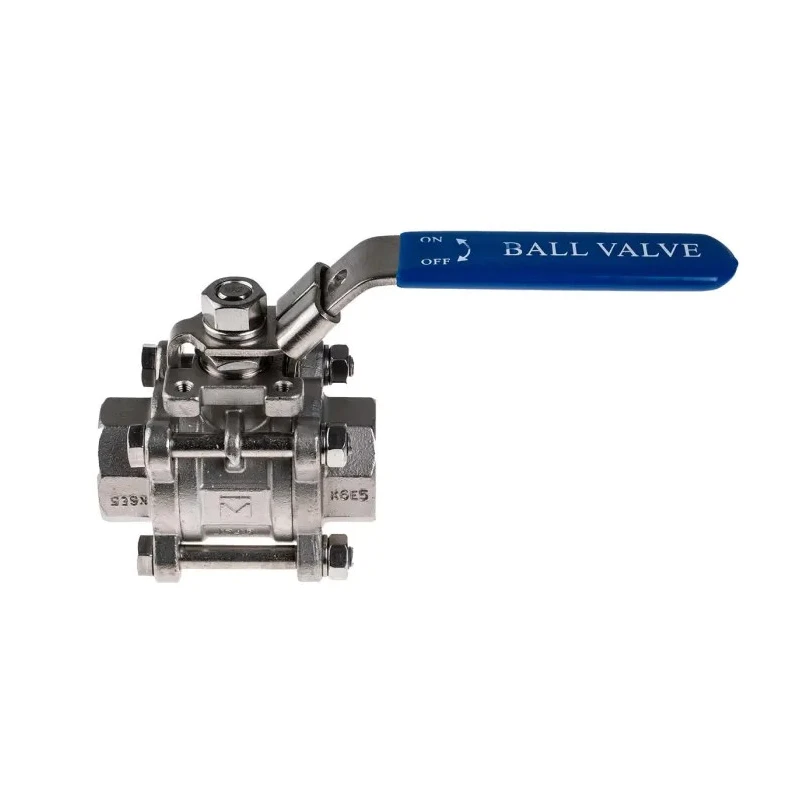

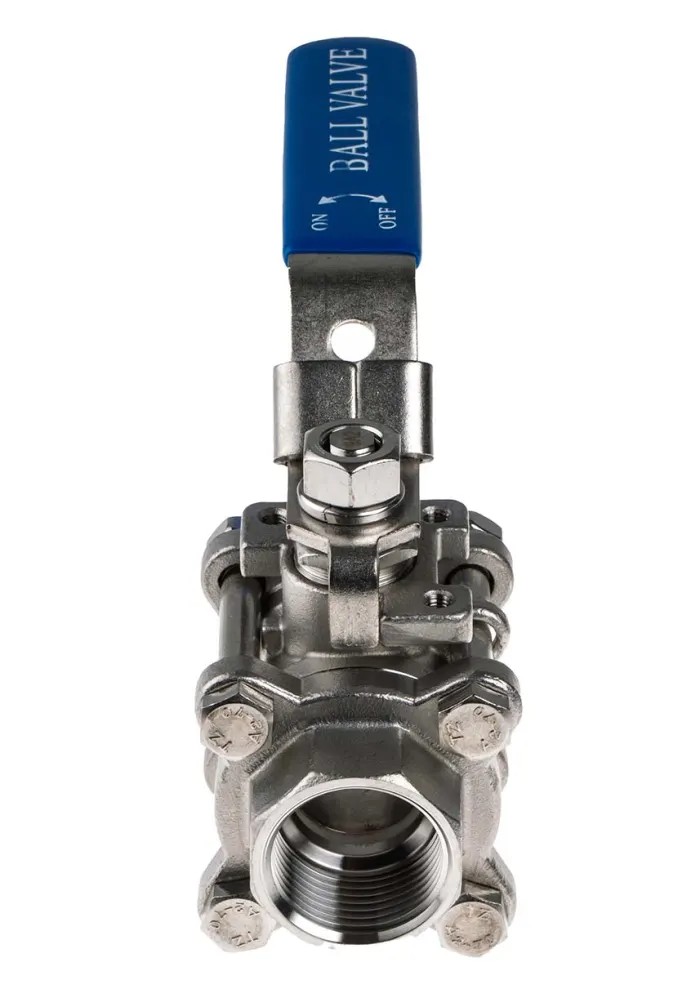

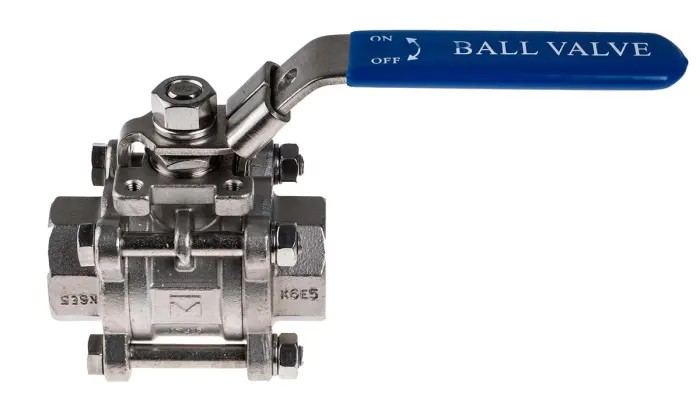

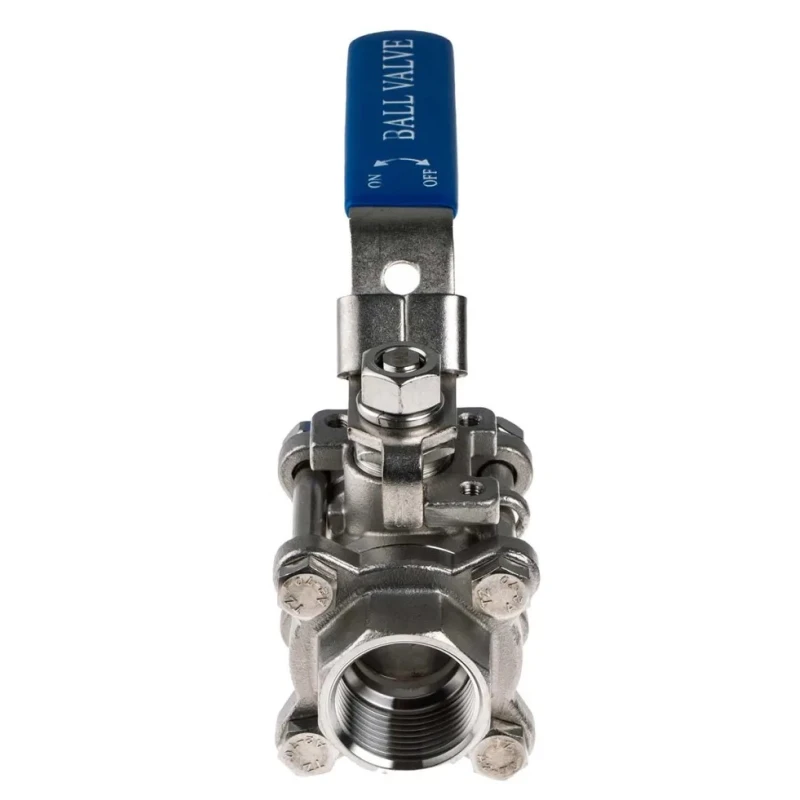

RS PRO Stainless Steel Threaded 2-Way Ball Valve BSPP 1 in, 69 bar Operating Pressure, ASTM A351-CF8M Body Material A351-CF8M

RS PRO A351-CF8M Stainless Steel Threaded 2-Way Ball Valve is engineered for industrial fluid control applications requiring high durability and reliable sealing performance. Featuring a 1 inch BSPP threaded female inlet and outlet port size, this ball valve is designed to manage flow efficiently with a maximum operating pressure of 69 bar and temperature capabilities ranging from -20°C to 200°C.

The valve body and cap are constructed from ASTM A351-CF8M stainless steel, offering excellent corrosion resistance and mechanical strength. The ball itself is made from ASTM A351-CF8M, while the stem uses ASTM A276-316 for enhanced durability. Sealing components such as the seat and seals are made from PTFE materials, including 15% reinforced glass fibre seat inserts, to achieve superior leak-tight performance.

This device incorporates a blow-out proof stem along with an adjustable stem packing to ensure safety and extend valve life during operation. The handle, crafted from stainless steel and featuring a PVC sleeve, provides ergonomic operation and thermal insulation. The valve includes a locking device for secure positioning in open or closed states, making it suitable for safety-conscious environments.

The 3-piece design of this ball valve allows easy disassembly for maintenance and servicing without removing the valve from the pipeline. Compliance with ISO 5211 standards facilitates mounting automation actuators for industrial process controls.

Typical application sectors for this product include mechanical engineering, fluid power systems, plumbing installations, chemical processing, and water treatment industries where reliable high-pressure flow control is critical.

This valve features a robust ASTM A351-CF8M stainless steel body for durability. Designed with threaded BSPP female connections for easy installation in pipeline systems. Operates efficiently across a temperature range from -20°C to 200°C.

Equipped with a stainless steel handle and incorporates a blow-out proof stem design for safety. Includes ISO 5211 mounting pad compatible for actuator attachment. The 3-piece construction allows in-situ maintenance and servicing.

Features a lockable full bore valve with thermally insulating lever sleeve. Seated with P.T.F.E material reinforced with glass fibre for reliable sealing.

RS PRO Ball Valves are recognized for their high-quality construction and are trusted in various industrial applications for flow control and pipeline integrity. Explore the extensive range of Industrial Valves & Valve Fittings at EnvMart for compatible components and accessories.
