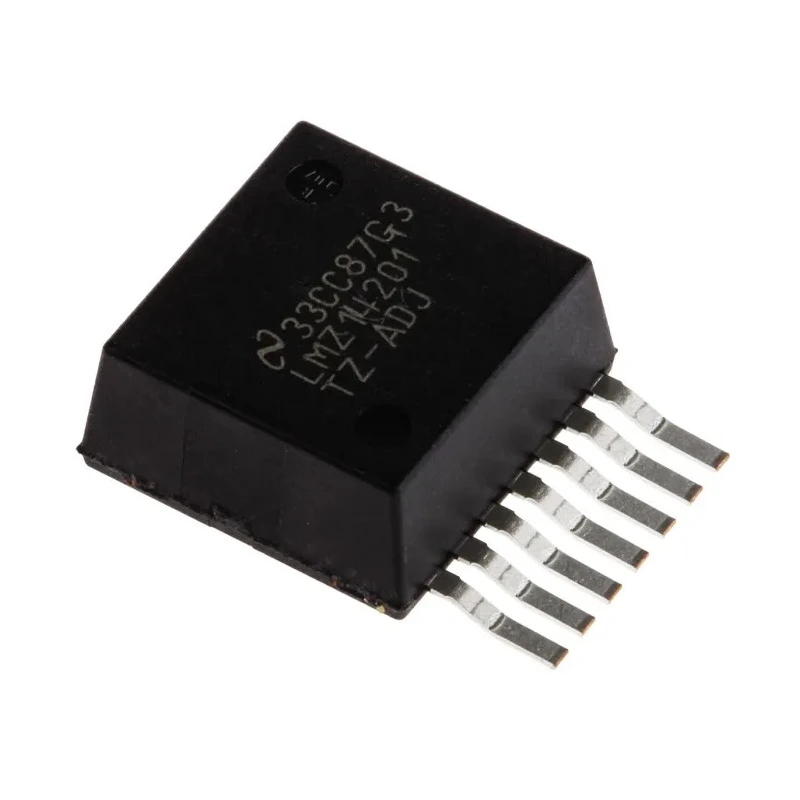

Texas Instruments Buck Converter Surface Mount 6V Output Voltage 1A Output Current LMZ14201TZ-ADJ/NOPB

Texas Instruments LMZ14201TZ-ADJ/NOPB Buck Converter is a high-performance surface mount power module designed for applications requiring high input voltages up to 42V and precise 6V output voltage with 1A output current capacity. It belongs to the LMZ-1 Series SIMPLE SWITCHER® power modules, which provide easy-to-use, integrated solutions offering exceptional efficiency and superior thermal performance.

This Buck Converter includes features such as precision enable, soft-start, and tracking pins for sequencing, ensuring smooth and controlled power delivery. The integrated shielded inductor and non-isolated power module design provide outstanding EMI protection, thermal management, and compatibility with demanding industrial environments.

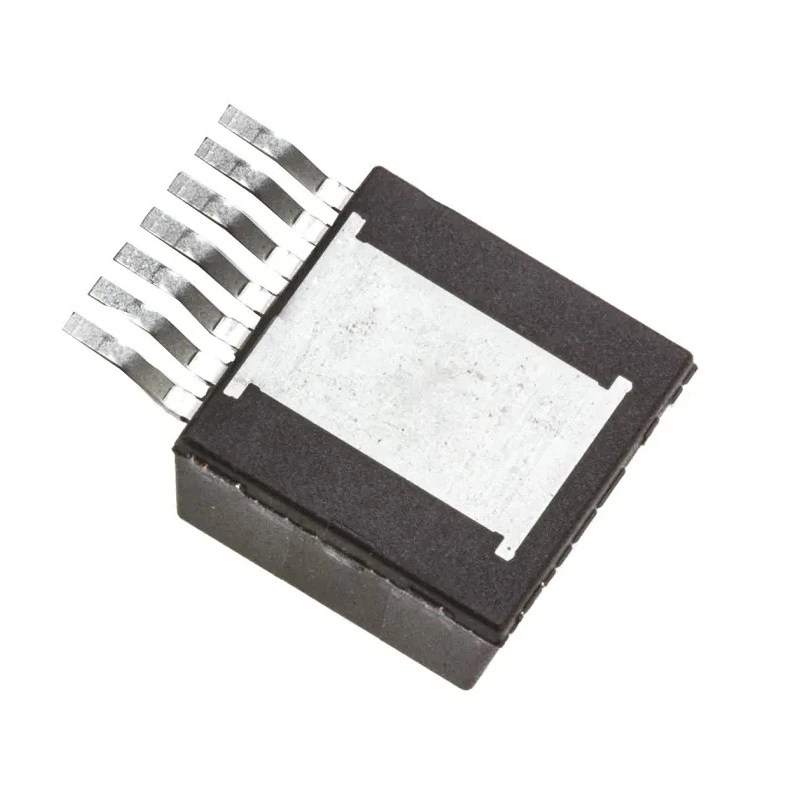

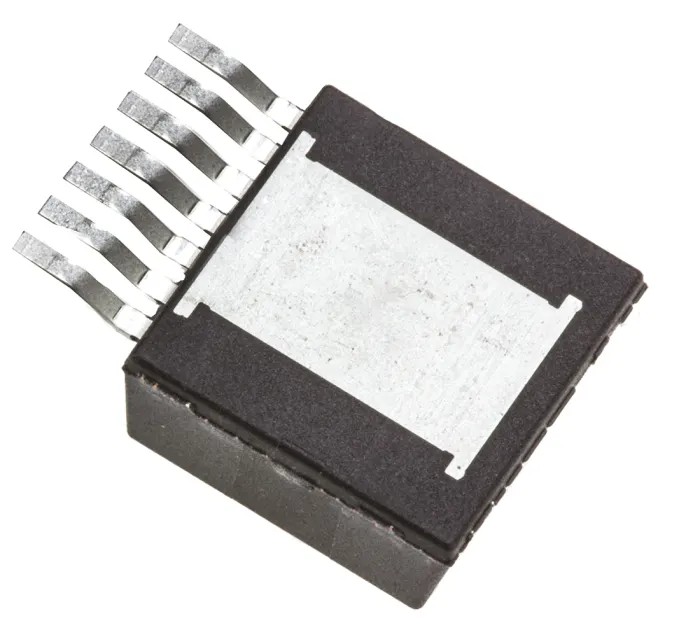

The LMZ14201TZ-ADJ/NOPB module is compact with dimensions 10.16mm by 9.85mm by 1.3mm and uses a 7-pin TO-PMOD package to facilitate easy PCB mounting, saving board space while supplying robust power.

With an efficiency rating of 92% and compliance with quality and environmental standards including REACH, ANSI, JEDEC, RoHS, and ESDA, this module is suitable for use in industrial, manufacturing, telecommunications, and power management applications requiring reliable DC/DC conversion.

High efficiency operation at 92% to ensure reduced power loss. Supports a maximum input voltage of 42V suitable for various industrial applications. Compact surface mount design with 7 pins and TO-PMOD package type. Features precision enable and soft-start pins for controlled operation.

Superior thermal performance with non-isolated design for enhanced EMI protection. Operating temperature rated at 125°C for reliable high-temperature functionality. Pin-to-pin compatibility within the LMZ1420 series for flexible load configurations.

Complies with REACH, ANSI, JEDEC, RoHS, and ESDA standards. Line regulation of 0.01% and load regulation of 1.5 mV/A for stable output. Dimensions: 10.16mm x 9.85mm x 1.3mm facilitating compact PCB integration.

This module is ideal for industrial and commercial electronic equipment requiring efficient voltage conversion with reliable performance under high temperature and high EM interference conditions. It forms a part of the comprehensive SIMPLE SWITCHER® family by Texas Instruments, enabling modular power solution designs.
