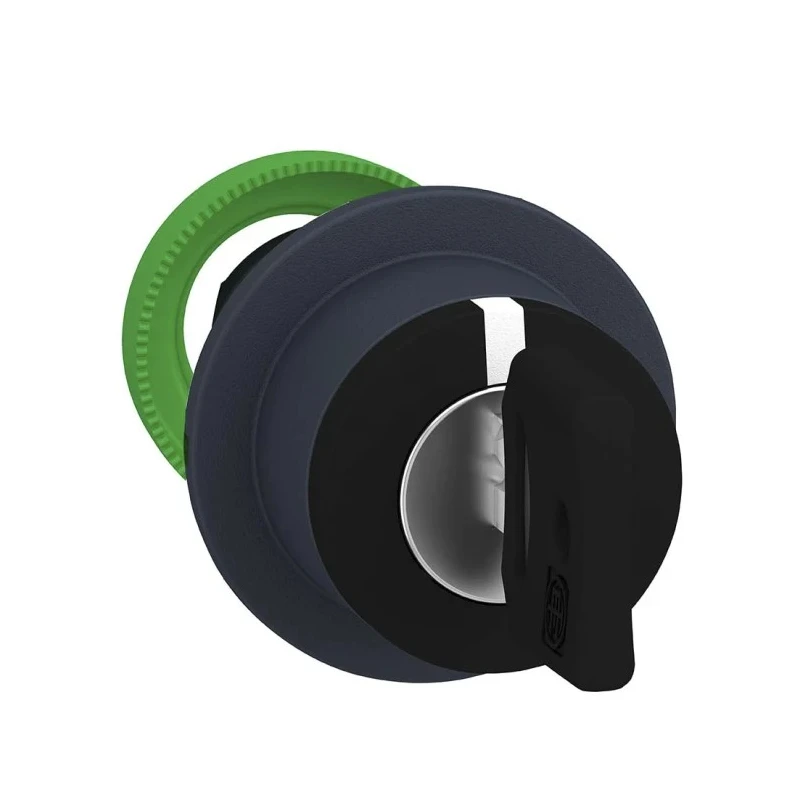

Schneider Electric Harmony XB5 3-position Key Switch Head Spring Return 30 mm Cutout ZB5FG1D

Schneider Electric ZB5FG1D Harmony XB5 3-position Key Switch Head with spring return operation and 30 mm cutout diameter is designed for industrial control and automation applications. This key head provides a reliable and precise means of machine operation with its spring return left to centre action and clearly defined 3-position selector.

The switch head features a black plastic bezel material optimized for flush mounting and includes a round signaling unit head. The single key supplied (key type 8D1) allows for secure control with key withdrawal position on the right. The 45° angle of throw ensures accurate mechanical positioning and user feedback.

Built to withstand harsh industrial environments, this product is rated with IP67, IP66, and IP69K ingress protection standards, which protects it against dust, water, and high-pressure cleaning jets. It boasts a robust mechanical life expectancy of 1,000,000 cycles, ensuring long-term operational reliability.

This key switch head conforms to a comprehensive set of international standards and approvals including IEC, UL, CSA, JIS, DNV, BV, and LROS certifications, making it suitable for global industrial and safety compliance requirements.

Typical applications include machine manufacturers, chemical processing plants, paper mills, marine operations, energy distribution panel builders, food and beverage production facilities, and car washes. Its high protection and robust design make it ideal for industrial, manufacturing, HVAC, and commercial sectors.

Flush mounted selector switch head with 3 positions and spring return left to centre. Black key switch featuring key type 8D1 and a single key included. Durable plastic bezel with built-in flush round signaling unit head design.

High ingress protection rated IP67, IP66 and IP69K for harsh environments. Wide angle of throw of 45 degrees with mechanical life of 1,000,000 cycles. Complies with multiple standards including IEC 60947-5-4, UL 508, CSA and JIS for industrial use.

Suitable for machine manufacturing, chemical, paper mill, marine, energy distribution, food and beverage sectors. Explore the extensive range of Schneider Electric products and related Key Switch Heads at EnvMart for your control system and automation needs.
